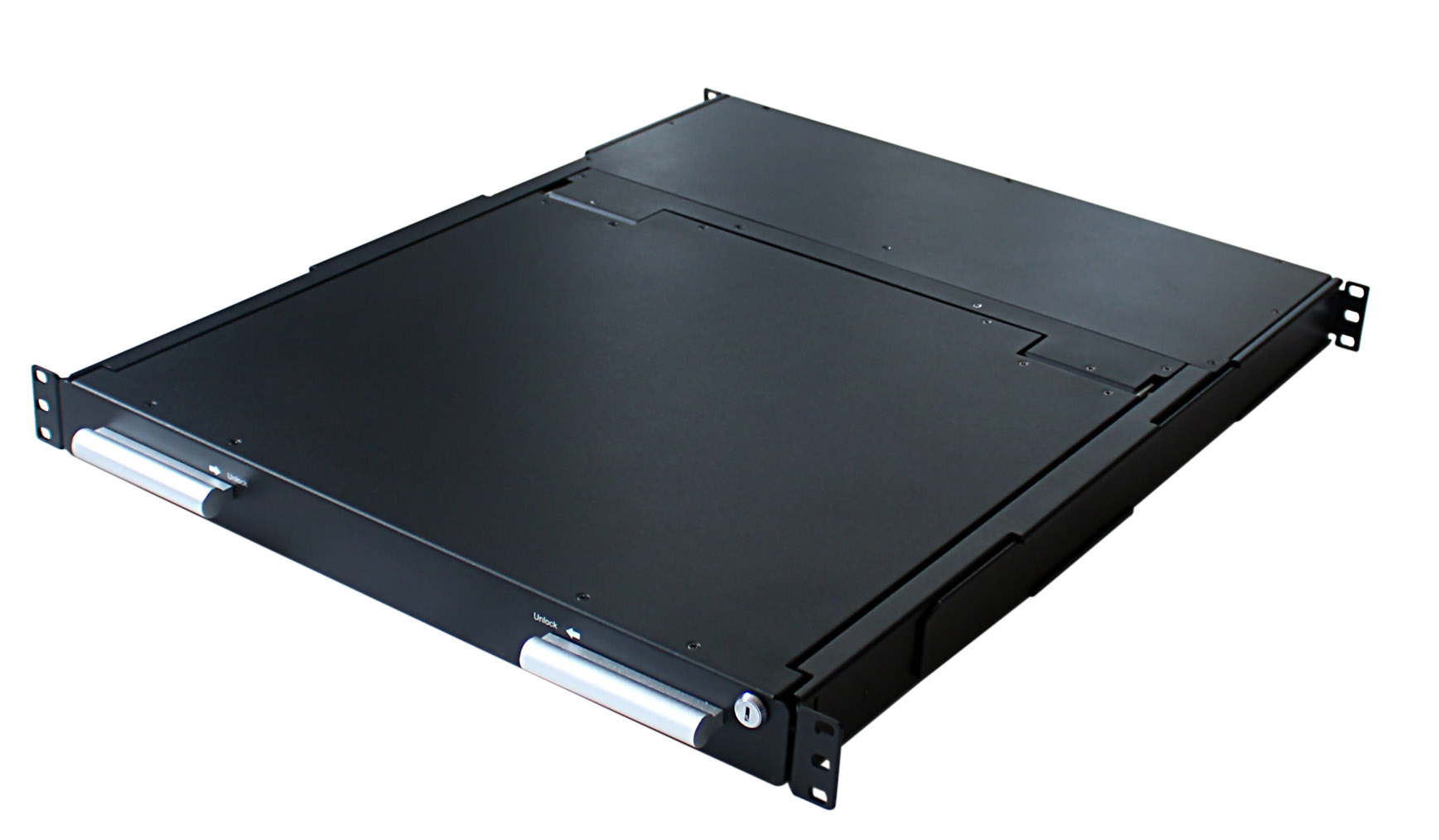

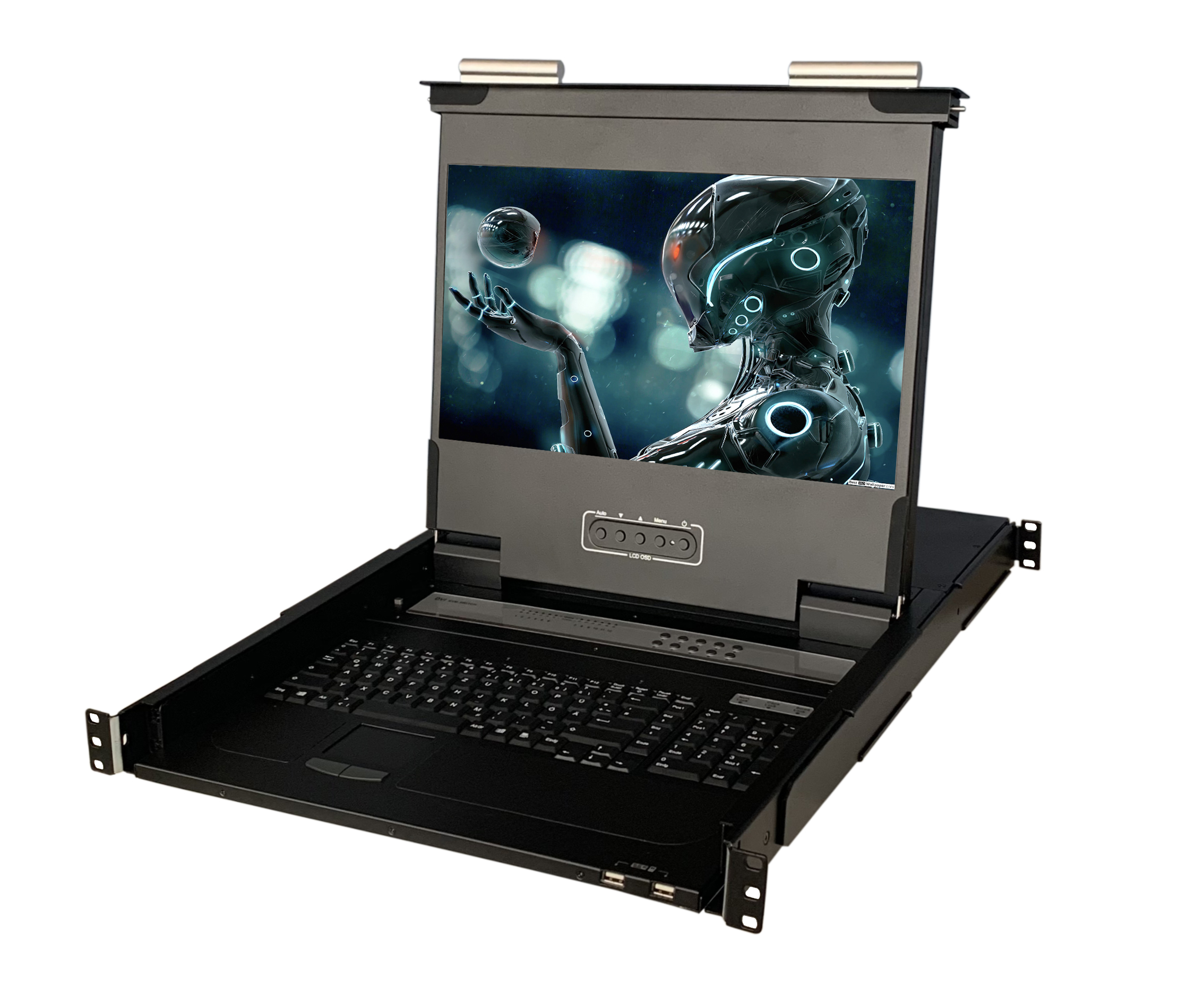

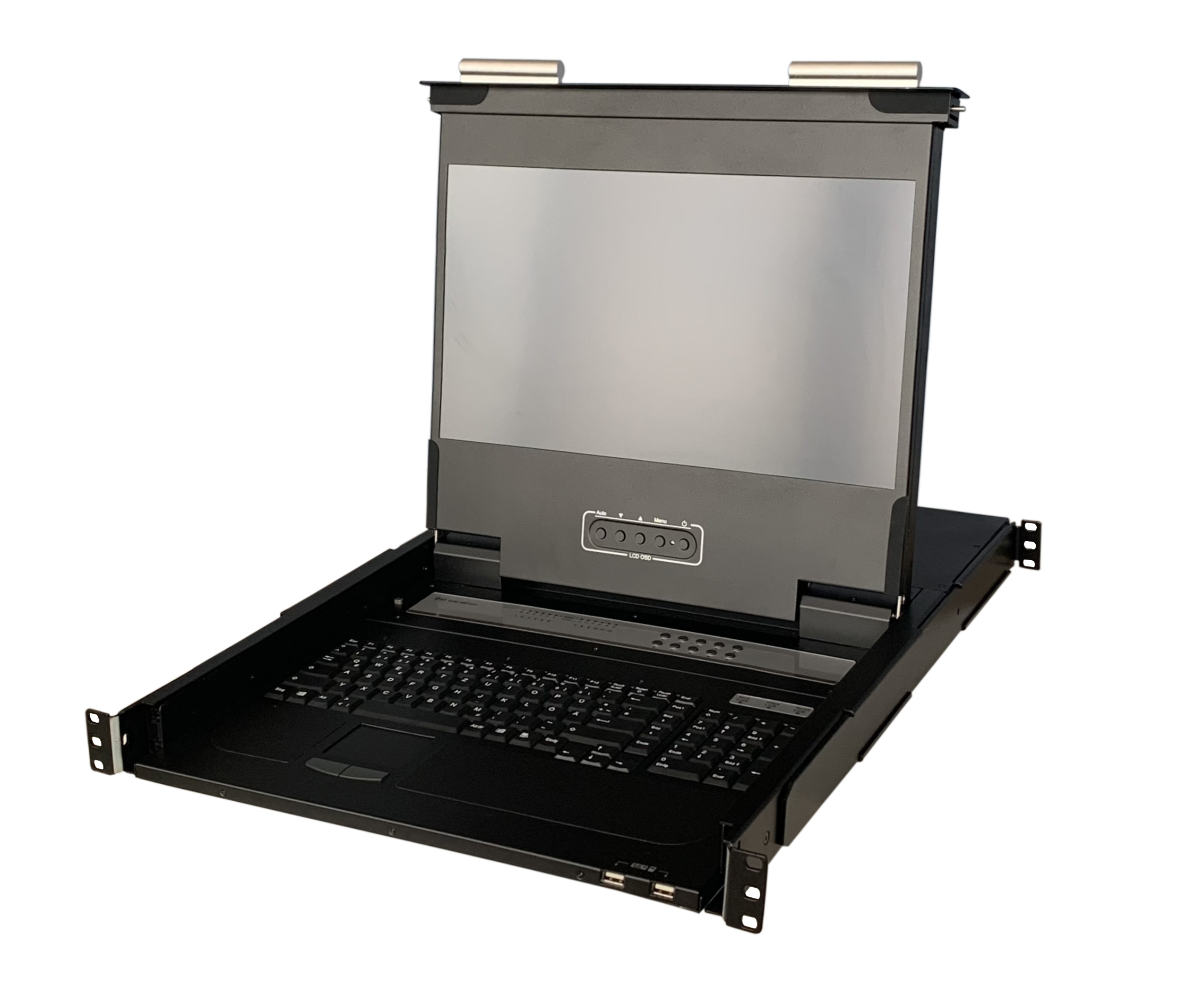

High-Resolution 1080p FullHD 12-Port LCD-Console Drawer with DVI + USB, KVM-1712WPD-AST-M2
This is a very special LCD KVM drawer with a very large Screen and support of FullHD (native 1920x1080).
You can choise between 12 DVI / USB computer by buttons or hotkey.
Because it opens to right side, it does not use space behind the pulled out console. The users position is beside the pulled out drawer.
Easy to handle and use in a 800 mm deep or larger 19" cabinet.
Features
- 1U 17.3 inch widescreen LCD Console Drawer
- 12 x DVI & USB
- Port selection via push buttons or hotkey
- 1920 x 1200 WUXGA Ultra high resolution (interpolished)
- Native Support FHD with 1080p resolution
- Front 2xUSB "only" for KB/Mouse
- 104-key (German) keyboard with touch pad mouse
- Self-locking and auto release rails for ultra convenience
Package Contents
- 1x KVM-1712WPD-AST-M2 DVI/USB Full HD LCD Console with Standard Rack Mount Kit
- 1x 1.8 meter IEC Type Power Cord
- 1x User Instructions (english)
| Computer Connections |
12 |
| Rack Depth (rack cabinet front rails to rear rails) |
500 mm to 620 mm (800 mm Rack needs min)
|

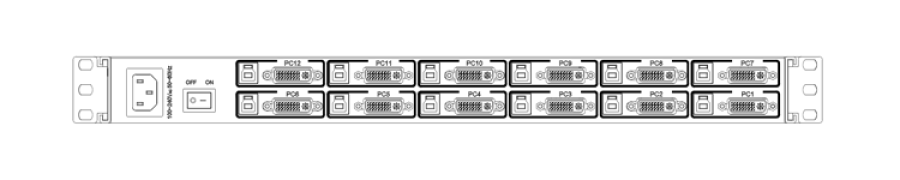

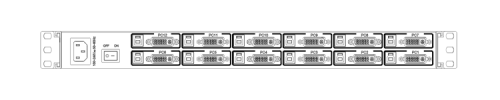

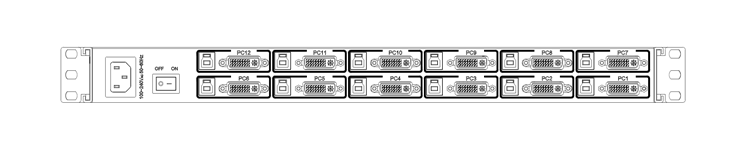

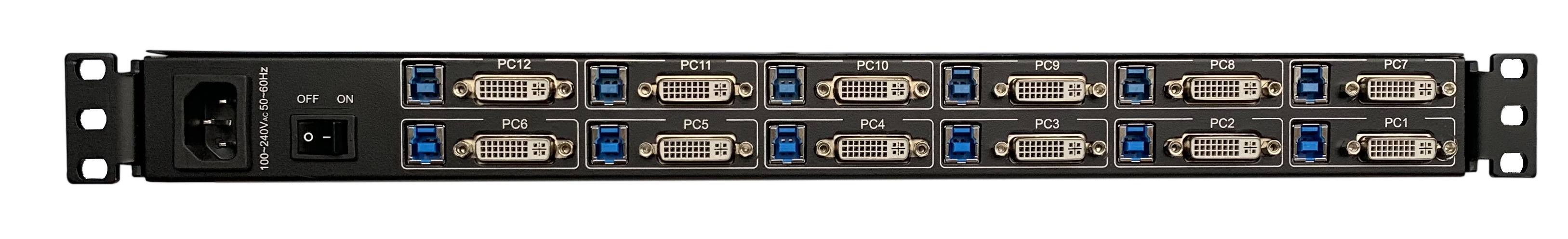

| Connectors |
Input Ports |
USB |
12 x USB Type B Female |
| Monitor |
12 x DVI-D Female (White) |
| External USB |
Mouse / Keyboard |
2 x USB Type A Female (front) |
| Power |
1 x 3-prong AC Socket |
| Switches |
Power |
1 x Rocker |
| LCD Power |
1 x Pushbutton |
| LCD Adjustment |
4 x Pushbutton |
| Port-Selection |
12 x Pushbutton |
| LEDs |
Power |
1 |
| Lock |
Num |
1 |
| Caps |
1 |
| Scroll |
1 (Green) |
| |
Keyboard / Mouse
Emulation |
USB |
| Video (DVI / VGA) |
1920 x 1080 @ 60Hz, DDC2B
(support resolution up to 1920*1200) |
| Size |
17.3 inch FULL HD display |
| Backlight |
LED |
| Resolution |
1920*1080 (support resolution up to 1920*1200) |
| Max. color |
262 K |
| Luminance |
300 cd/m2 |
| View Angel (H/V) |
140 / 120 |
| Contrast Ratio |
650 : 1 |
| Power |
100-240V AC 50/60Hz via IEC Type power cord |
| Power Consumption |
230V, 20W |
| Environment |
Operating Temp. |
0-50°C |
| Shock: |
10G acceleration (11ms duration) |
| Vibration: |
17 to 500Hz 1G PTP |
| Storage Temp. |
-20 to 60°C |
| Humidity |
10 to 90% RH, Non-condensing |
Physical
Properties |
Housing |
Metal |
| Weight |
12,5 kg (net weight)
18,5 kg (gross weight) |

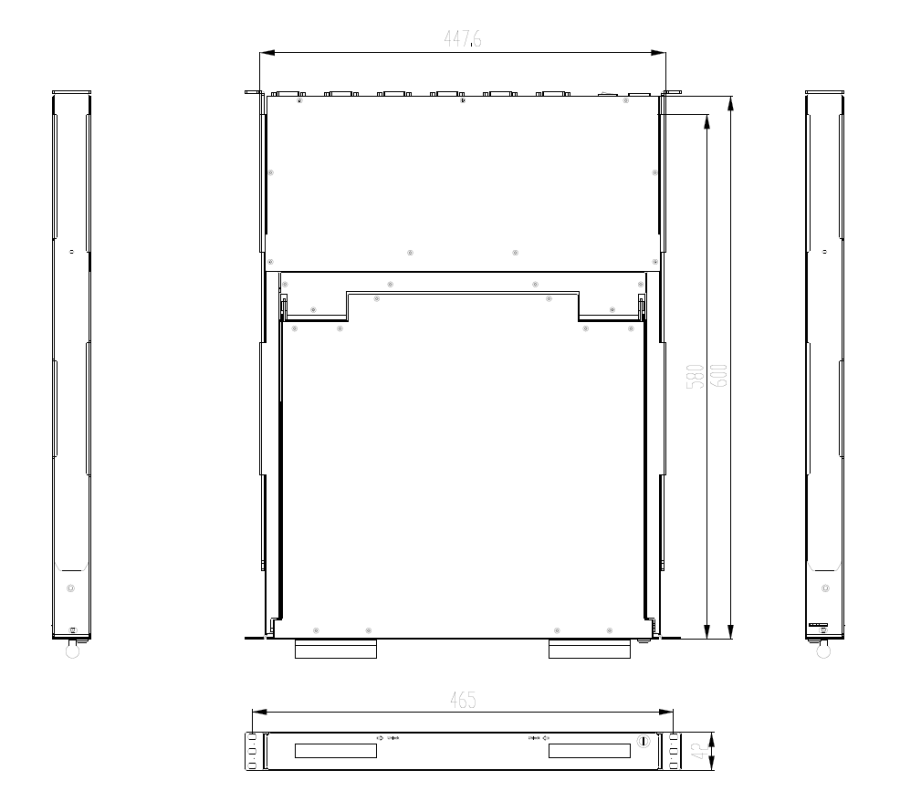

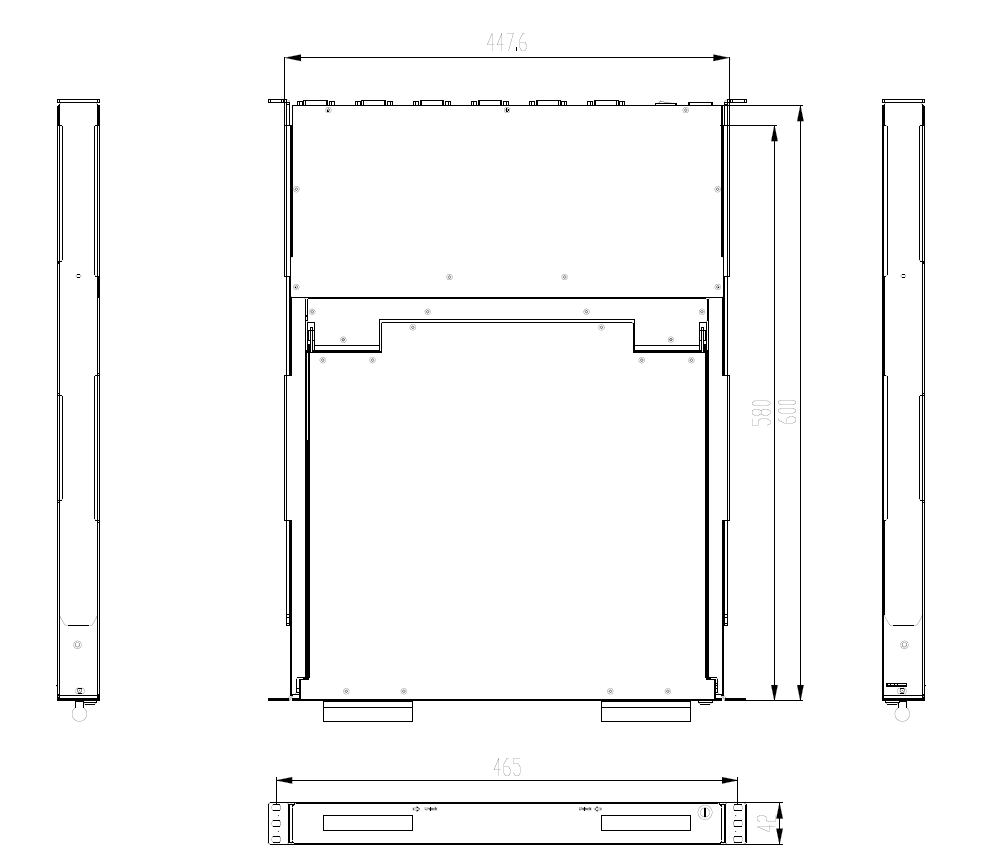

Physical Dimensions
(D x W x H) |
600 x 448 x 42 mm (product)
780 x 715 x 140 mm (carton) |
