16-Port CAT-KVM FHD 1080p LCD-Konsole with 18,5" LED-LCD, incl. 16x CPU-Module, LANBE AS-9116HD-TLS

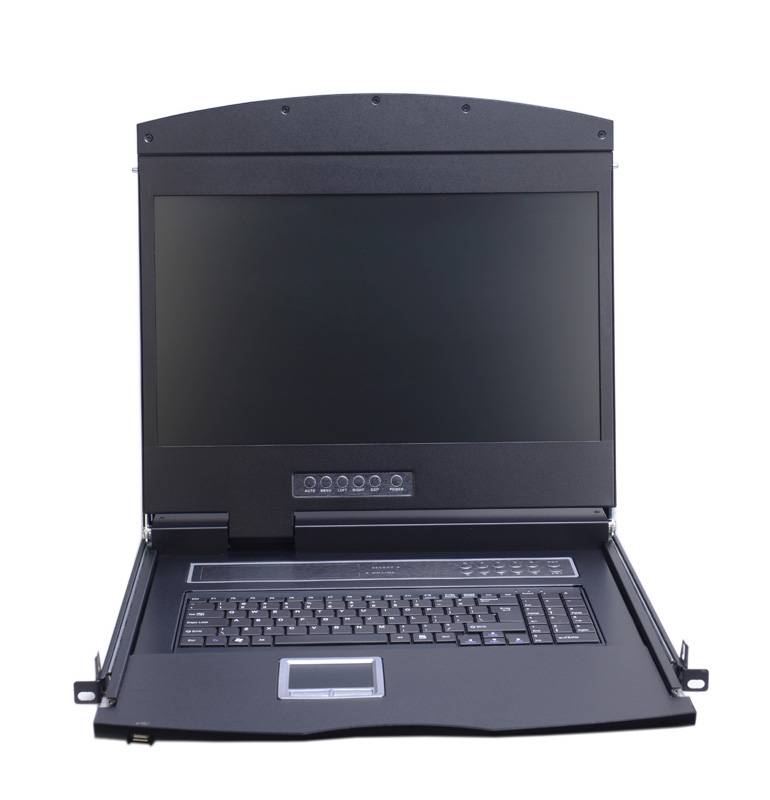

AS-9116HD-TLS is an 18.5’’ FULL HD / LCD-Monitor, Keyboard-Drawer with LED Backlight. The new equipment ensures brilliant Full HD images and monitoring to unprecedented quality. AS-9116HD-TLS sets a new standard in picture quality inside the server room. A value keyboard with number block and touchpad and the integrated Cat.5 input are completing the external design. The casing conforms the 1U Standard, is easily installed and mountable with the included mounting kit. Depth 611mm
FEATURES
* Adjustable depth from 555 mm up to 900 mm tread depth
* Sixteen Cat.5 connectors (incl. VGA and USB via dongle)
* Support friendly external power supply
* Support DOS, Windows Series /Server 2008 / Server 2013, Linux, MacOS, etc.
* Perfect keyboard / mouse emulation for safe function on all computers and operating systems
* High graphic resolution, up to 1920 x 1080 (Full HD)
Keyboard Versions
The product is equipped with german (DE) keyboard as standard. Other keyboard versions are available. Please state in your Order Comments, if you need one of the following Keyboard layouts. These layouts usually are on stock:
US-English (US), French (FR), Spanish (SP), Italian (IT), Swedish/Finnish (SWE/FI), Swiss (CH).
These Layouts are available with longer lead time (by request):
UK-English (UK), Russian (RU) and Turkish (TK).
| Specifications |
|
|
|
| |
|
|
|
| Type |
AS-9104HD-TLS |
| Computer Connection (direct/max) |
16 /64 |
| CPU Port Selection |
Front panel buttons / OSD menu / Hot Key |
| IP Remote Control |
No |
- - |
| LCD monitor |
Monitor type |
18.5 inch wide screen SXGA color TFT-LCD |
| Ratio |
16:9 |
| Visible square |
409.8(H) x 230.4(V)mm |
| Resolution(max) |
1920 x 1080 (Full HD) |
| Support Color |
16.7M colors (RGB 6-bit +Hi-FRC) |
| White Luminance |
300 cd/m2 (Typ.) |
| contrast |
1000:1 (Typ) |
| Back light |
LED |
| Pixel Pitch |
0.3 (per one triad) x 0.3 |
| LCD MTBF |
100.000 hours |
| Input power |
DC 12 V |

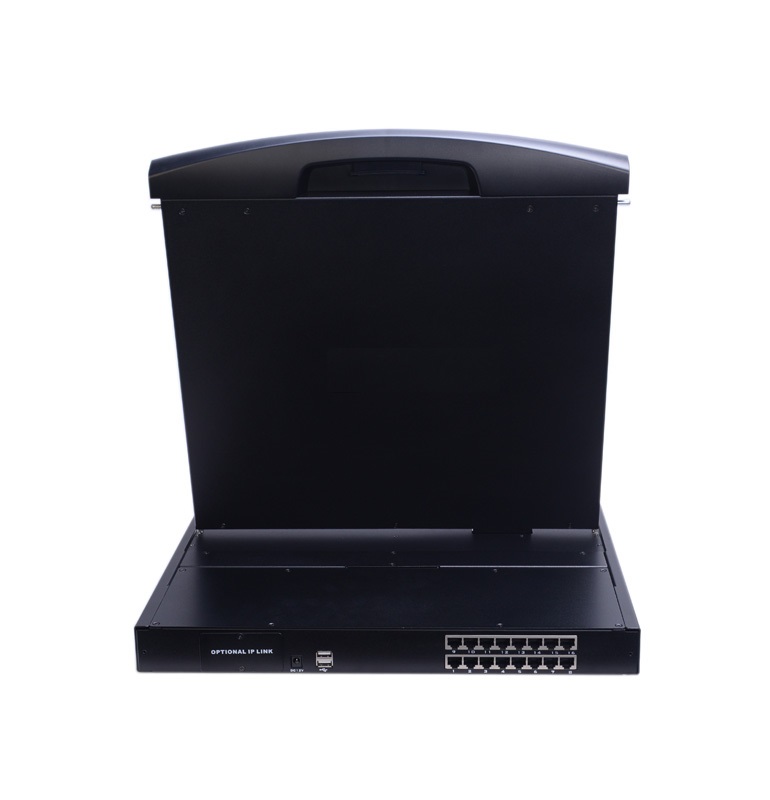

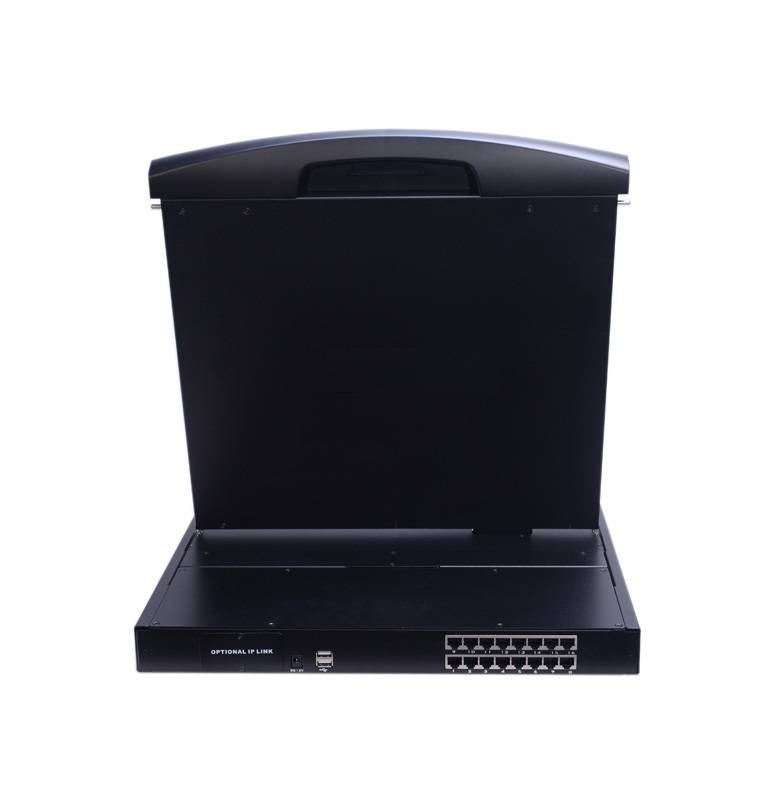

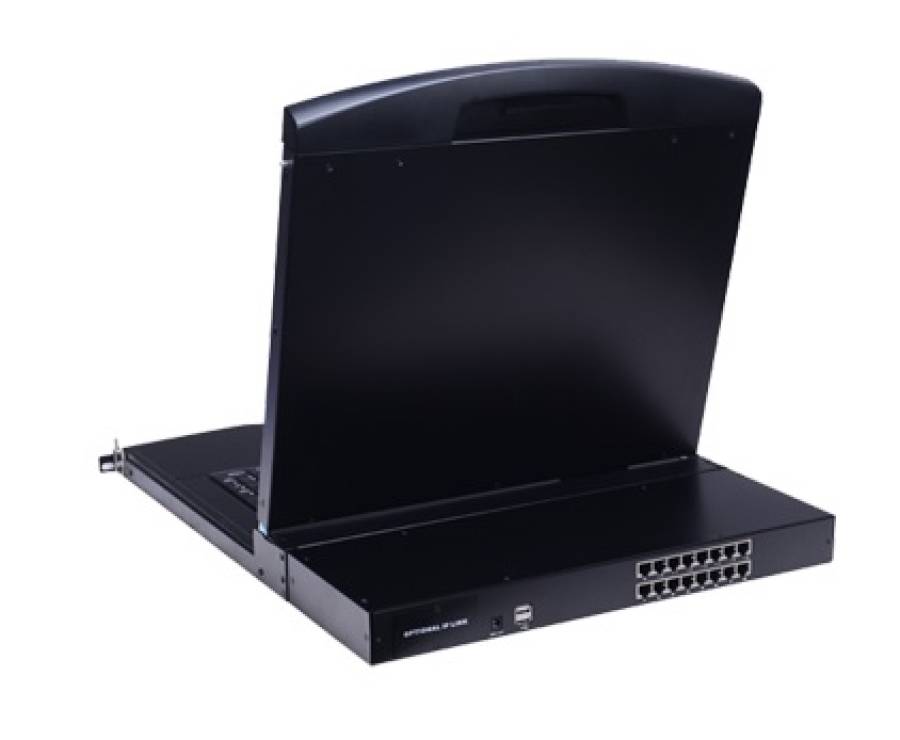

| Connectors |
PC connectors |
16 x RJ45 Port |
| 1 x USB (front) for external mouse or keyboard |
| 2 x USB (rear) |
| Dongle |
Connector |
1x RJ45 Port |
| Connector 2 |
1x VGA, 1x Kombi-USB |
| Keyboard |
Keyboard |
Standard 100keys (10 different languages for choose) |
| Compatible IBM/AT |
Win Series/Server 2008/Server 2013/Linux, MacOS, etc. |
| Using life |
>1,000,000 times |
| Mouse |
Type |
Touch Pad |
| X/Y resolution |
>1000dots/inch (40x40/mm) |
| Using life |
>1,000,000 times |
| Power |
Power (AC) |
~100V-240V |
| Using life |
MTBF >60,000hours 25 °C |
| Housing |
Metal ( black ) |
| Rail system |
Single Rail |
| Gross weight |
19.0 kg |
| Dimensions (installation depth) |
555 x 450 x 44,5 mm |
| Dimensions (with handle) |
611 x 450 x 44,5 mm |
| Rack installation depth |
555mm - 900mm (min/max adjustable) |
|
| Operating / Storage Temp |
-10 - 50°C / -20 - 60°C |
Note:
For Business user and Industrial user. only.
Not suitable for consumer user.
No sale to consumer customer.
