4-Port USB DVI Dual Display Secure KVM Switch (PSD PP v4.0 Compliant), Aten CS1144D4
ATEN PSD PP v4.0 Secure KVM Switch CS1144D4 is specifically designed to meet the stringent security requirement of secure defense and intelligence installations. ATEN PSD PP v4.0 Secure KVM Switch CS1144D4 is compliant with PSD PP v4.0 (Protection Profile for Peripheral Sharing Device, Version 4.0) standard certified by the National Information Assurance Partnership (NIAP).
ATEN PSD PP v4.0 Secure KVM Switch CS1144D4 provides isolation between computer sources and peripherals while sharing a single keyboard, mouse, monitor, and speaker set between connected computers of various security classifications. Compliance with PSD PP v4.0 ensures peripheral sharing capabilities provide maximum user data security when switching port focus, preventing unauthorized data flows or leakage between connected sources. Key protections include isolation and unidirectional data flow, restricted peripheral connectivity and filtering, user data protection, configurable device filtration and management, strict audio filtration, and always-on tamper-proof design, keeping sensitive assets isolated and providing advanced security and a user friendly design for instantly secure deployment.
To enhance security, ATEN PSD PP v4.0 Secure KVM Switch CS1144D4 only offers manual switching methods including front panel pushbuttons and Remote Port Selector (RPS) 1. With multi–layered security, ATEN PSD PP v4.0 Secure KVM Switch CS1144D4 ensures high-level desktop security and data safekeeping for applications such as government and military agencies, healthcare providers, banking and finance institutions, and other organizations that often handle sensitive or confidential data on separate networks.
Note:
1. The Remote Port Selector is not supplied in the package and requires a separate purchase.
NIAP Common Criteria Compliant
- Compliant with PSD PP v4.0 (Protection Profile for Peripheral Sharing Device, Version 4.0) security requirements
Multi-Layered Security
- Always-on chassis intrusion detection – renders the ATEN PSD PP v4.0 Secure KVM Switch series inoperable when physical tampering is detected
- Tamper-evident labels – provides visual indication of any attempt to access the ATEN PSD PP v4.0 Secure KVM Switch’s internal components
- Non-reprogrammable firmware – prevents reprogramming the ATEN PSD PP v4.0 Secure KVM Switch’s firmware
- Restricted peripheral connectivity – non-authorized HIDs (Human Interface Devices), video, or authentication device connections are rejected
- Port selection via pushbuttons / Remote Port Selector (RPS) 1 only to enhance security
- LED indicators for peripheral filtering and KVM security status
- Strict audio filtration protects against audio leakage.
- Rugged metal enclosure
Data Channel Isolation and Unidirectional Data Flow
- True data path isolation – data cannot be transferred between computers
- The ATEN PSD PP v4.0 Secure KVM Switch controls and isolates data flow between console devices and connected computers
- Unidirectional data flow between console devices and the selected computer is ensured
- Supports analog audio (speaker only) 2
User Data Protection
- The ATEN PSD PP v4.0 Secure KVM Switch’s keyboard / mouse data is automatically deleted after transmission and automatically purged when the KVM port focus is switched
Security Management
- Supports administrative configuration of keyboard / mouse ports filtering to reject specific USB HID devices
- Provides administrative functions for authorized administrators to audit KVM log data
Superior Video Quality
- Superior video quality – up to 4K (3840 x 2160 @ 30Hz) 3
- Video DynaSync™ –Exclusive ATEN technology eliminates boot-up display problems and optimizes resolutions when switching among different sources
1. The Remote Port Selector is not supplied in the package and requires a separate purchase.
2. Only analog speaker data input is supported.
3. The DVI Secure KVM Switch series offers up to 3840 x 2160 @ 30 Hz video output on compatible HDMI-interfaced monitors / computers with ATEN DVI-to-HDMI KVM cables.
Package Contents
1x CS1144D4 4-Port USB DVI Dual Display Secure KVM Switch
1x Power Cord
1x User Instructions
| Computer Connections |
4 |
| Port Selection |
Pushbutton, Remote Port Selector |
| Connectors |

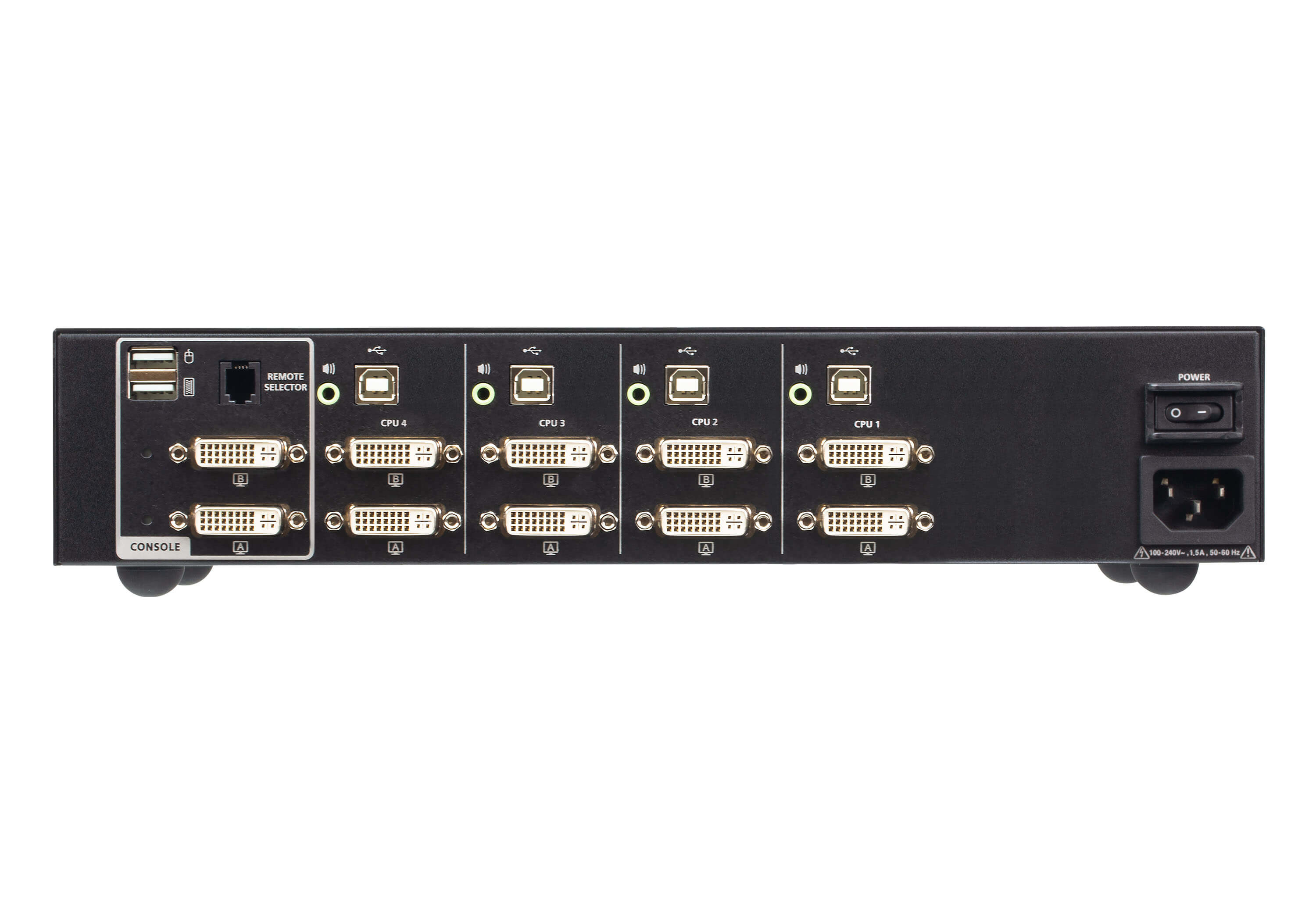

| Console Ports |
2 x DVI-I Dual Link Female
2 x USB Type-A Female (White)
1 x Mini Stereo Jack Female (Green; front panel) |
| KVM Ports |
4 x USB Type-B Female (White)
8 x DVI-I Dual Link Female
4 x Mini Stereo Jack Female (Green) |
| Power |
1 x 3-prong AC Socket |
| Remote Port Selector |
1 x RJ-11 (Black; rear panel) |
| Switches |
| Port Selection |
4 x Pushbuttons |
| Reset |
1 x Semi-recessed Pushbutton |
| Power |
1 x Rocker |
| LEDs |
| Power |
1 (Green) |
| Online / Selected (KVM Port) |
4 (Orange) |
| Video |
2 (Green) |
| Key Lock |
3 (Green) |
| Emulation |
| Keyboard / Mouse |
USB |
| Video |
Max. 3840 x 2160 @ 30 Hz (UHD)*
DVI Dual Link: 2560 x 1600;
DVI Single Link: 1920 x 1200
DVI-A: 2048 x 1536 |
| Maximum Input Power Rating |
100–240V~; 50-60 Hz; 1.5A |
| Power Consumption |
AC110V:10.7W:58BTU
AC220V:10.6W:58BTU |
| Environmental |
| Operating Temperature |
0-50°C |
| Storage Temperature |
-20-60°C |
| Humidity |
0 - 80% RH, Non-condensing |
| Physical Properties |
| Housing |
Metal |
| Weight |
2.20 kg ( 4.85 lb ) |
| Dimensions (L x W x H) |
33.50 x 16.39 x 6.55 cm
(13.19 x 6.45 x 2.58 in.) |
| Note |
* DVI Secure KVM Switches support up to 3840 x 2160 @ 30 Hz video output on compatible HDMI-interfaced monitors/computers with ATEN DVI-to-HDMI KVM cables. |
| Note |
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
