4K 60Hz HDMI, 4-Port USB 2.0, Ethernet, RS232 and Audio KVM-Extender-Set 4K 4096x2160 60 Hz 4:4:4, max. 100 m, SC&T HE02U-4K6G
The HE02U-4K6G is a HDMI over HDBaseT Extender which is able to send uncompressed video with resolution up to 4K@60Hz 4:4:4, USB 2.0, 1G Ethernet, RS232, digital & analog audio and transmission distance up to 100M.
It uses the Valens Stello VS3000 chipset, which is the only solution for long range distribution of uncompressed video, with zero latency.
The 4 built in USB p orts at RX unit can connect multiple USB devices, such as keyboards, mouses, and flash drives.
Features:
- Extends the "up to 4K UHD" HDMI 2.0 signal with USB 2.0, RS232 and analog audio
- The HDBaseT 3.0 is used to bridge the distance, which only requires a special HDBaseT CAT.6A cable (see also assigned below).
- HDMI 2.0
- HDCP 1.3 compliant
- Real-Time High-Definition Video with up to 4K UHD
- Up to 100 m at 4K UHD 4096x2160 @ 60 Hz 4:4:4 (18 Gbps)
- Zero latency
- 4-Port USB 2.0 in Receiver
- 1G Ethernet can also be transmitted via the HDBaseT line
- Bi-directional analogue Audio
- Bi-directional RS232 with 115.200 bps
- Can transmit all signals simultaneously.
- HDMI digital Audio supports up to LPCM 7.1 @ 192KHz, Dolby TrueHD, DTS-HD MA
Cable:
A special cable approved for HDBaseT is required to connect the transmitter and receiver at this very high frequency.
Matching cables in different lengths can be found below this product description under "possibly necessary accessories".
Even high-quality Cat.5e, Cat.6, Cat.6a, Cat.7 UTP / SFTP cables will not work.
Poor quality cables or poor contact (e.g. due to corrosion or improper connector assembly) will make the connection unstable and cause picture noise or picture and sound interruptions.
Distance chart cable:
Cable Type
|
Range
|
Supported Video
|
HDBaseT
U/UTP
|
up to 100 M
|
up to 4096x2160 @ 60Hz 4:4:4(18Gbps)
|
Below the cable spec. based on HDBaseT 3.0
https://products.hdbaset.org/avcat/ctl19001/index.cfm?manufacturer=fs-cables&product=c6tgufh01-b204
HE02U-4K6G Package Include:

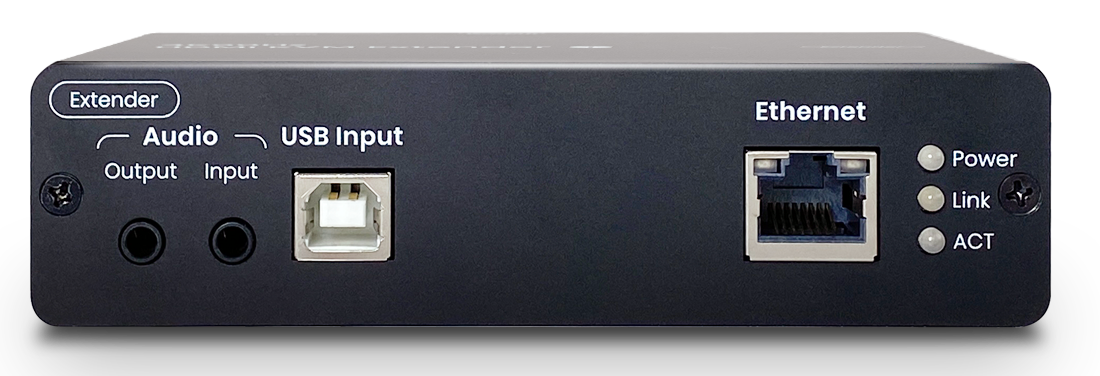

1x HE02UT-4K6G Transmitter
1x HE02UR-4K6G Receiver
2x 4 Mounting Screw
2x 4 Monting Clips
2x self-adhesive rubber feet
2x 3,5mm to RS232 adapter cable m/f
2x Power Adapter DC 12V / 1.5A
1x Manual (english)
Specification:
ITEM NO.
|
HE02UT-4K6G
(Transmitter)
|
HE02UR-4K6G
(Receiver)
|
HDMI Video Support
|
up to 4096x2160 / 60Hz / 4:4:4
|
HDMI Audio Support
|
up to 7.1 LPCM 192KHz / Dolby TrueHD / DTS-HD MA
|
Distance
|
100M UHD (max)
|
Input / Output Interface
|
HDMI x 1 in / HDMI x 1 local out
USB 2.0 Typ B x 1
Audio over 3.5 mm x 1
RS232 (over optional
adapter cable 3.5 mm) x1
|
HDMI x 1
USB 2.0 Typ A x 1
Audio over 3.5 mm x 1
RS232 (over optional
adapter cable 3.5 mm) x1 |
RJ45 Connectors
|
RJ45 x 2
(1x HDBaseT to connect the modules)
(1x 1G Ethernet)
|
RJ45 x 2
(1x HDBaseT to connect the modules)
(1x 1G Ethernet) |
Power Supply
|
DC 12V 1.5A
|
DC 12V 1.5A
|
Power Consumption
|
max. 5 W regulated
|
max. 6 W regulated
|
Temperature
|
Operation: -10 to 45℃, Storage: -30 to 70℃, Humidity: up to 95%
|
Dimensions mm
|
125 x 123 x 32
|
125 x 123 x 32
|
Weight g
|
350
|
355
|
B2B Product - Designed for use in a commercial environment.
