Aten CE700A USB-K/M/VGA KVM-Extender
The CE700A is a USB KVM Extender with superior video quality and built-in ESD and surge protection that allows access to a computer system up to 150 meters away from a remote USB console (USB keyboard, monitor, and USB mouse).
The CE700A improves on previous designs by: 1) incorporating 8KV/15KV ESD protection and 2KV surge protection; 2) providing superior video quality - up to 1920 x 1200 resolution; 3) using inexpensive Cat 5e cable, instead of bulkier, more expensive, standard cables, for a much neater, more convenient, more reliable data transfer connection; 4) it is able to sense the distance to the system and automatically adjusts the gain accordingly; and 5) it features a custom ASIC to ensure the utmost in reliability and compatibility.

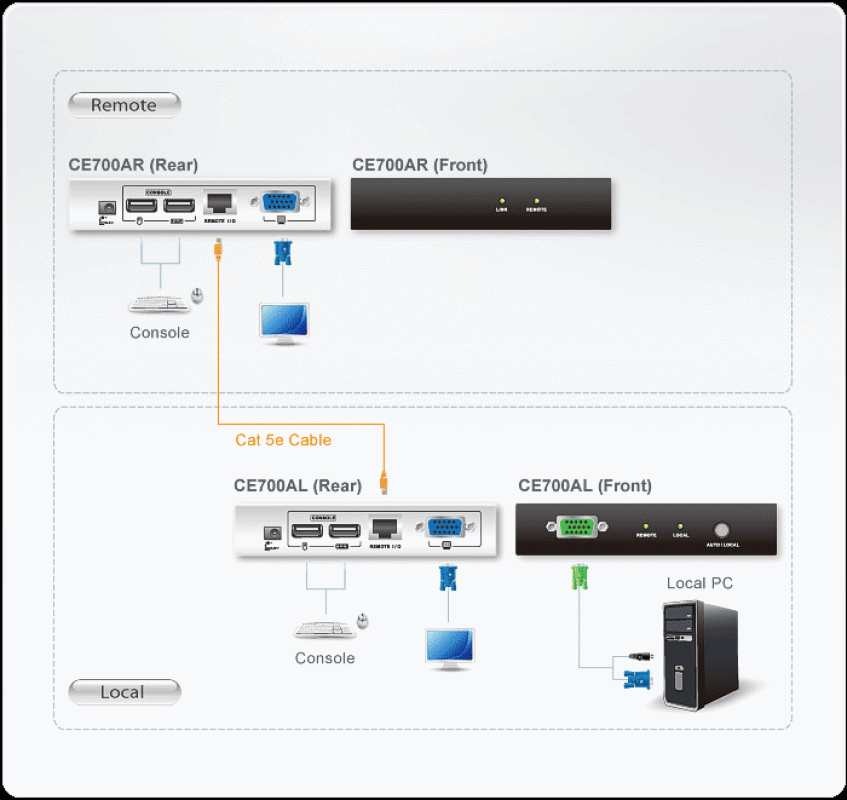

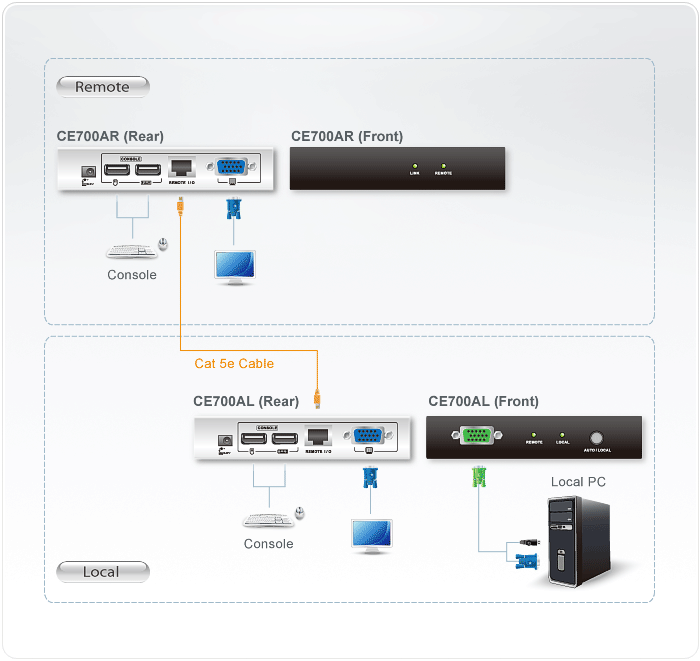

- Cat 5e cable connects the Local and Remote Units - up to 150m apart
- Dual console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles
- Built-in ASIC for greater reliability and compatibility
- Auto Signal Compensation (ASC)
- USB Keyboard and USB Mouse Ports
- USB overcurrent detection and prevention
- Pushbutton operating mode selection (Local Unit only) - select between Local and Auto operating modes.
- Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge protection
- Automatic gain control - adjusts signal strength to compensate for distance
- High resolution video - up to 1920 x 1200@60Hz (30m ); 1600 x 1200@60Hz (100m); 1280 x 1024@60Hz (150m)
- Supports VGA, SVGA, SXGA, UXGA, WUXGA and multisyncmonitors; local monitor supports DDC; DDC2; DDC2B
- Rack mountableEasy to install - no software required - connecting cables to the devices is all it takes
- Multiplatform support - Windows, Linux
Package Contents

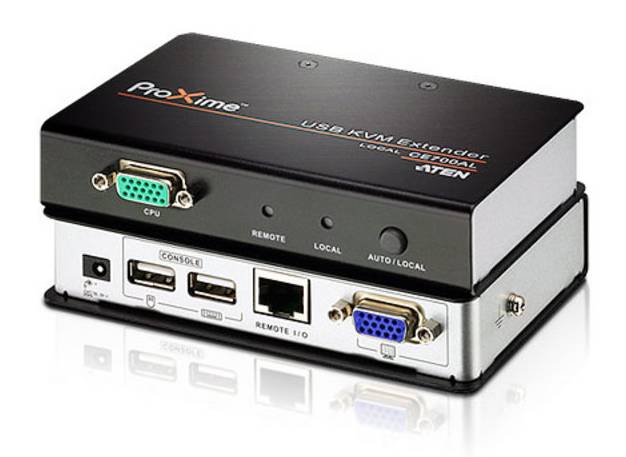

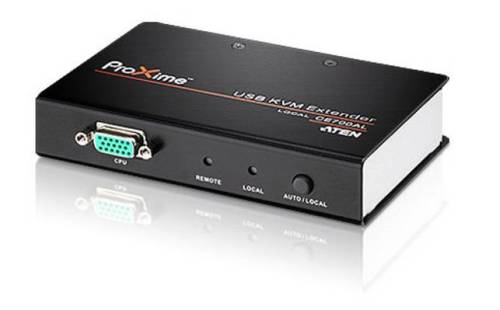

- 1x CE700AL USB KVM Extender (Local Unit)
- 1x CE700AR USB KVM Extender (Remote Unit)
- 2x Power Adapters
- 1x USB KVM Cable (1.8m)
- 1x Rack Mount Kit
- 1x User Manual
- 1x Quick Start Guide
| Function |
CE700AL |
CE700AR |
| Connectors |
Console
Ports |
Keyboard |
1 x USB Type A Female (White) |
| Video |
1 x HDB-15 Female (Blue) |
| Mouse |
1 x USB Type A Female (White) |
KVM
Ports |
Keyboard/ Video / Mouse |
1 x SPHD-17 Female (Green) |
N/A |
| Unit to Unit |
1 x RJ-45 Female (Black) |
| Power |
1 x DC Jack (Black) |
| Pushbuttons |
Operating
Mode Selection |
1 x Pushbutton |
N/A |
| LEDs |
Local |
1 (Green) |
N/A |
| Remote |
1 (Green) |
1 (Green) |
| Link |
N/A |
1 (Green) |
| Emulation |
Keyboard / Mouse |
USB |
| Power Consumption |
DC5.3V/2.31W |
DC5.3V/2.84W |
| Video |
1920 x 1200 @ 60Hz (30m)
1600 x 1200 @ 60Hz (100m)
1680 x 1050 @ 60Hz (100m)
1280 x 1024 @ 60Hz (150m) |
| Environment |
Operating Temp. |
0 - 50°C |
| Storage Temp. |
-20 - 60°C |
| Humidity |
0-80% RH, Non-condensing |
| Physical Properties |
Housing |
Metal |
| Weight |
0.32 kg |
0.31 kg |
Dimensions
(L x W x H) |
12.50 x 8.15 x 2.50 cm |
