ATEN CS1764A 4-Port DVI/USB2.0/Audio KVM-Switch incl. Cable
USB 2.0 DVI KVMP™ Switch
| |
The CubiQ CS1764A USB 2.0 DVI KVMP™ Switch charts a revolutionary new direction in KVM (Keyboard, Video, Mouse) switch functionality by combining a 4 port KVM switch with a 2 port USB 2.0 hub at the same time as it provides an interface for a digital monitor (DVI). In addition, the CS1764A comes with ATEN's new Video DynaSync™ technology, which optimizes display resolution, and power on detection, which means if one computer is powered off, the CS1764A will automatically switch to the next powered-on computer.

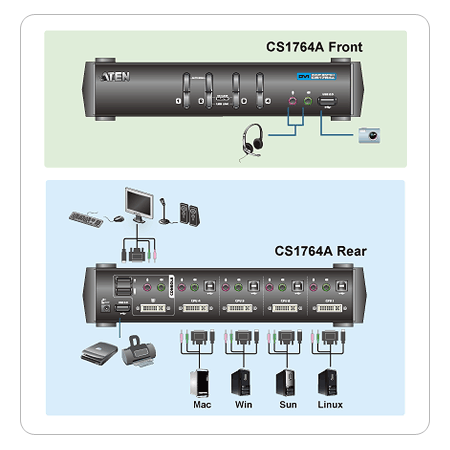

As a KVM switch, it allows users to access four computers from a single USB keyboard, USB mouse, and monitor console. As a USB 2.0 hub, it permits each computer to access any peripherals connected to the hub on a 'one computer at a time' basis. |
|
 |
|
|
|
|
|
| • |
One USB console controls four DVI computers and two additional USB 2.0 devices |
| • |
2-port USB 2.0 hub built in |
| • |
Fully compliant with the USB 2.0 specification |
| • |
Computer selection via front panel pushbuttons and hotkeys |
| • |
Audio enabled - full bass response provides a rich experience for 2.1 channel surround sound systems |
| • |
Multiplatform support - Windows, Linux, Mac and Sun |
| • |
Superior video quality - 1920 x 1200, 60Hz; DDC2B |
| • |
Independent switching of KVM, USB, and Audio focus |
| • |
DVI digital and analog monitor support - fully compliant with the DVI specifications |
| • |
HDCP compliant |
| • |
Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution |
| • |
Power on detection - if one computer is powered off, the CS1764A will automatically switch to the next powered-on computer |
| • |
Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice |
| • |
Sun /Mac keyboard support and emulation* |
| • |
Auto Scan Mode for monitoring all computers |
| • |
Firmware upgradable via USB
* 1. PC keyboard combinations emulate Sun/Mac keyboards
2. Sun/Mac keyboards only work with their own computers |
|
|
|
|
|
|
| • |
1x CS1764A USB 2.0 DVI KVMP™ Switch |
| • |
4x Custom KVM Cable Sets |
| • |
1x Power Adapter |
| • |
1x User Manual |
| • |
1x Quick Start Guide |
|
|
|
|
|
|
| Computer Connections |
4 |
| Port Selection |
Front Panel Pushbuttons; Hotkey |
| Connectors |
Console Ports |
Keyboard |
1 x USB Type A Female
(Black; rear panel) |
| Video |
1 x DVI-I Female (White) |
| Mouse |
1 x USB Type A Female
(Black; rear panel) |
| Speakers |
2 x Mini Stereo Jack Female
(Green; 1 x front panel; 1 x rear panel) |
| Microphone |
2 x Mini Stereo Jack Female
(Pink; 1 x front panel; 1 x rear panel) |
| KVM Ports |
Keyboard / Mouse |
4 x USB Type B Female (White) |
| Video |
4 x DVI-I Female (White) |
| Speakers |
4 x Mini Stereo Jack Female (Green) |
| Microphone |
4 x Mini Stereo Jack Female (Pink) |
| Power |
1 x DC Jack |
| USB Hub |
USB Hub |
| Switches |
Selected |
4 x Pushbutton |
| LEDs |
On Line / Selected |
4 (Orange) |
| USB Link |
4 (Green) |
| Emulation |
Keyboard/Mouse |
USB |
| Video |
1920 x 1200@ 60Hz; DDC2B |
| Scan Interval |
1–99 secs. (5 secs. default) |
| Power Consumption |
DC5.3V, 10.07W |
| Environment |
Operating Temp. |
0 - 50°C |
| Storage Temp. |
-20 - 60°C |
| Humidity |
0-80% RH, Non-condensing |
| Physical Properties |
Housing |
Metal |
| Weight |
0.94 kg |
| Dimensions ( L x W x H ) |
27.00 x 8.70 x 5.50 cm |
|
|
|
|
* The specification and pictures are subject to change without notice.
* All trademarks and logos are the properties of their respective holders.
