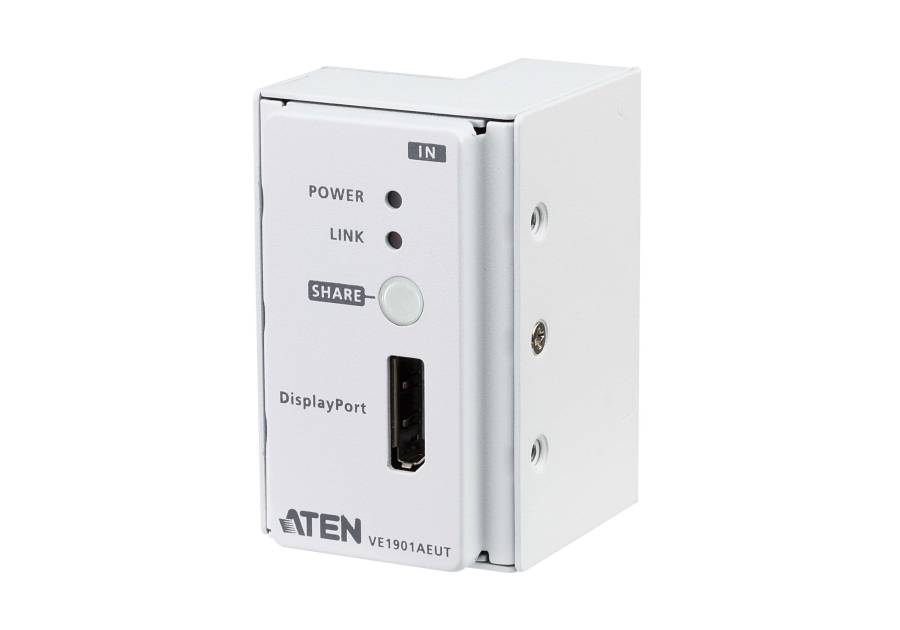

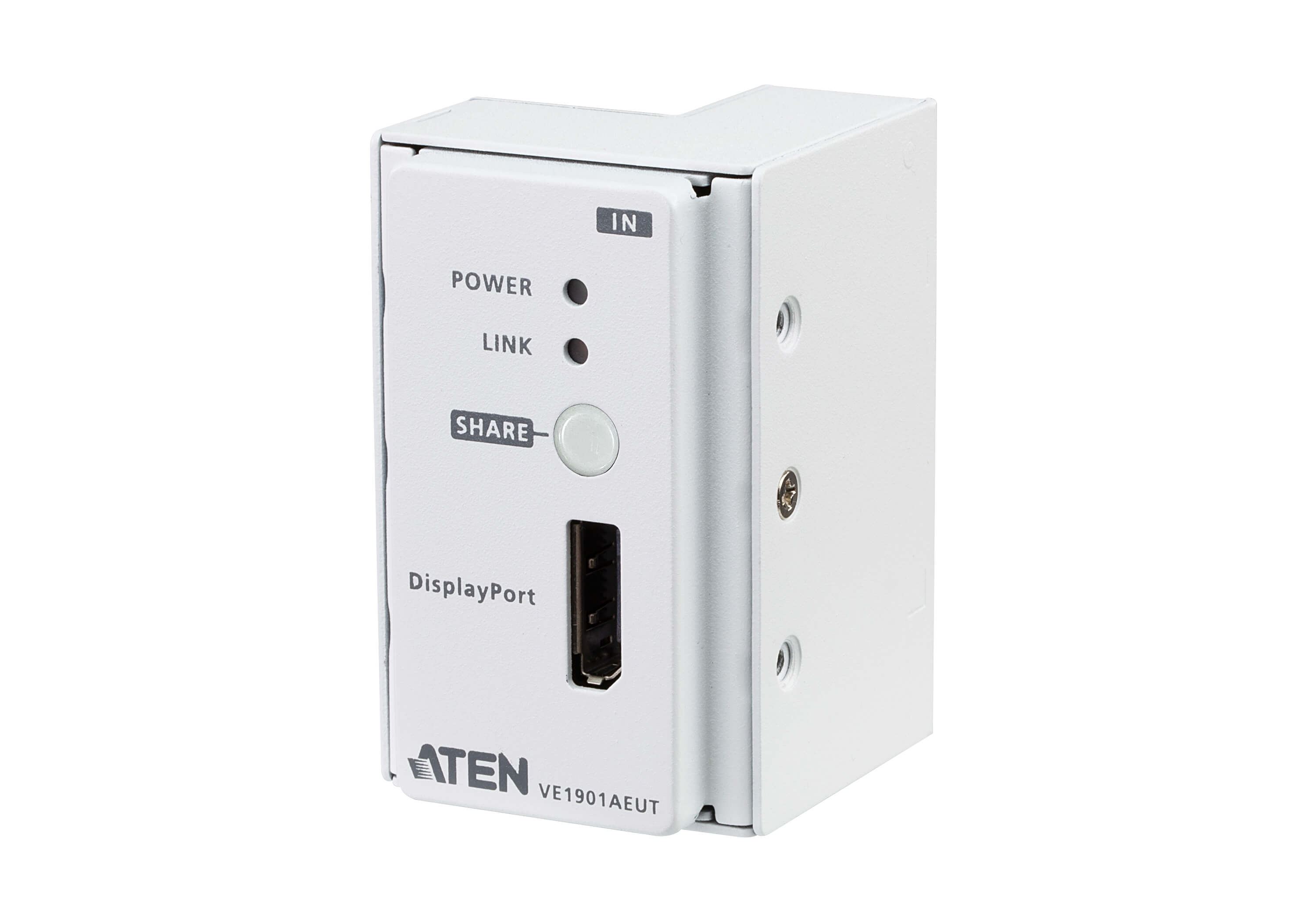

DisplayPort HDBaseT-Lite Transmitter with EU Wall Plate / PoH, Aten VE1901AEUT
DisplayPort HDBaseT-Lite Transmitter with EU Wall Plate / PoH, Aten VE1901AEUT
DisplayPort HDBaseT-Lite Transmitter with EU Wall Plate / PoH, Aten VE1901AEUT
The ATEN VE1901AEUT DisplayPort HDBaseT-Lite transmitter delivers 4K signals up to 40 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable, ensuring users to stabilize DisplayPort signal transmission with support of Deep Color and embedded HD lossless audio formats. During high-quality video transmission, the transmitter can resist signal interference with the equipped HDBaseT Anti-jamming technology and offer a reliable signal extension.
The VE1901AEUT can be easily mounted in a 1-gang junction box with EU wall plate, concealing bulky cable setups and presenting the needed information in sight. In addition, with built-in PoH (Power over HDBaseT) function, the VE1901AEUT receives power supply from a connected PoH PSE (Power Source Equipment) supported receiver and streamlines complex power line deployment.
With the share function, the VE1901AEUT can remotely switch source when connecting to a compatible receiver, e.g., VP1421, bringing users for more convenient AV extension. This compact transmitter provides a neat and simple installation on walls or tables, enabling users to elegantly immerse their AV applications into any environment. Therefore, the VE1901AEUT is ideal for use in meeting rooms, digital educational environments or any application requiring stable high-quality transmission and effortless installation.
- Extends DisplayPort signals with superior video quality over a single Cat 5e/6/6a cable or ATEN 2L-2910 Cat 6 cable
• 4K up to 40 m
• 1080p up to 70 m
- Built-in PoH (Power over HDBaseT) function – the VE1901AEUT receives power supply from the HDBaseT output port
- DisplayPort (Deep Color, 4K); HDCP compliant

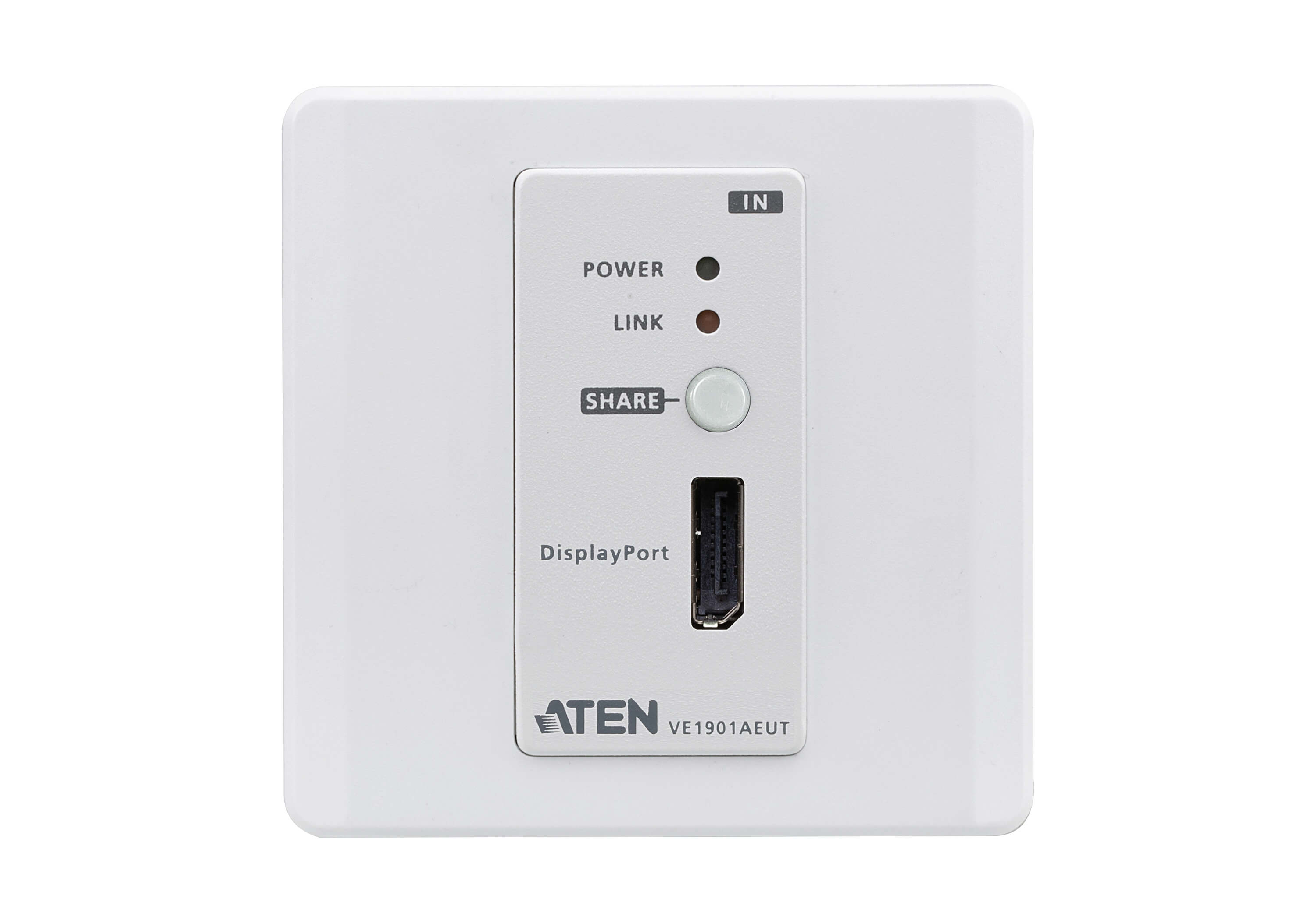

- Designed to mount in a 1-gang junction box with EU wall plate
- Supports RS-232 channel transmission
- HDBaseT Anti-jamming – resists signal interference during high-quality video transmission using HDBaseT technology
- Share function – the VE1901AEUT can remotely switch source when connecting to a compatible receiver, e.g., VP1421
- LED indication of device status
- Built-in 8KV / 15KV ESD protection
- DC power and PoH for power redundancy
- Plug-and-play
Package Contents
- 1x VE1901AEUT DisplayPort HDBaseT-Lite Transmitter with EU Wall Plate / PoH
- 1x 5-pin terminal block
- 1x rubber pad set (4 pcs)
- 1x faceplate
- 2x pan head screws
- 4x PF screws
- 1x power adapter
- 1x user instructions
| Video Input |
| Interfaces |
1 x DisplayPort Female (Black) |
| Impedance |
100Ω |
| Max. Distance |
3 m |
| Video |
| Max. Data Rate |
10.2Gbps (3.4Gbps per lane) |
| Max. Pixel Clock |
297 MHz |
| Compliance |
DisplayPort (Deep Color, 4K)
HDCP Compliant |
| Max. Resolutions / Distance |
Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910 Cat6);
1080p@60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat6)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
| Audio |
| Input |
1 x DisplayPort Female (Black) |
| Control |
| RS-232 Channel |

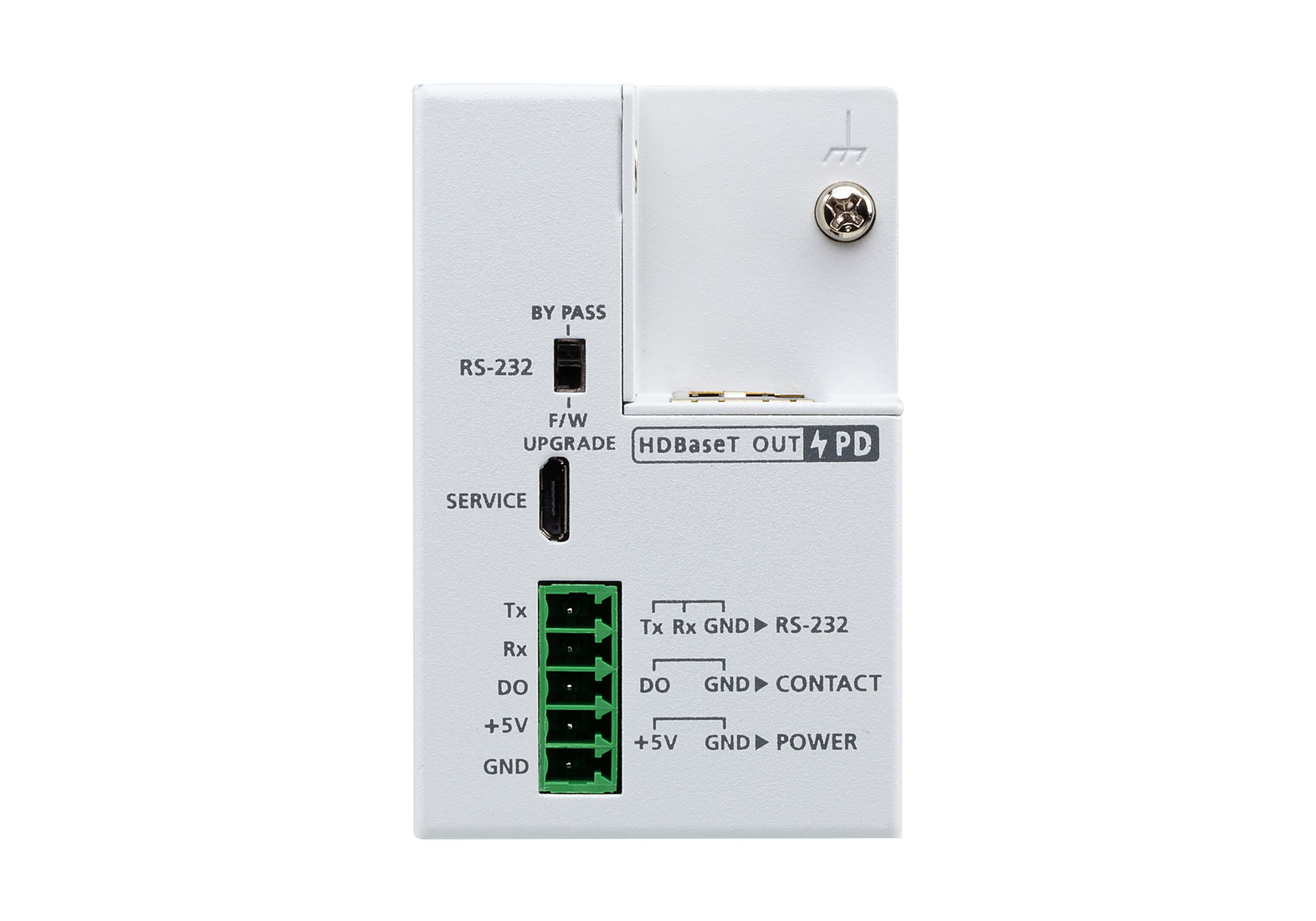

1 x Terminal Block (3 pole, TX/RX/GND, Green) |
| Contact Out |
1 x Terminal Block (2 pole, DO/GND, Green) |
| Connectors |
| Unit To Unit |

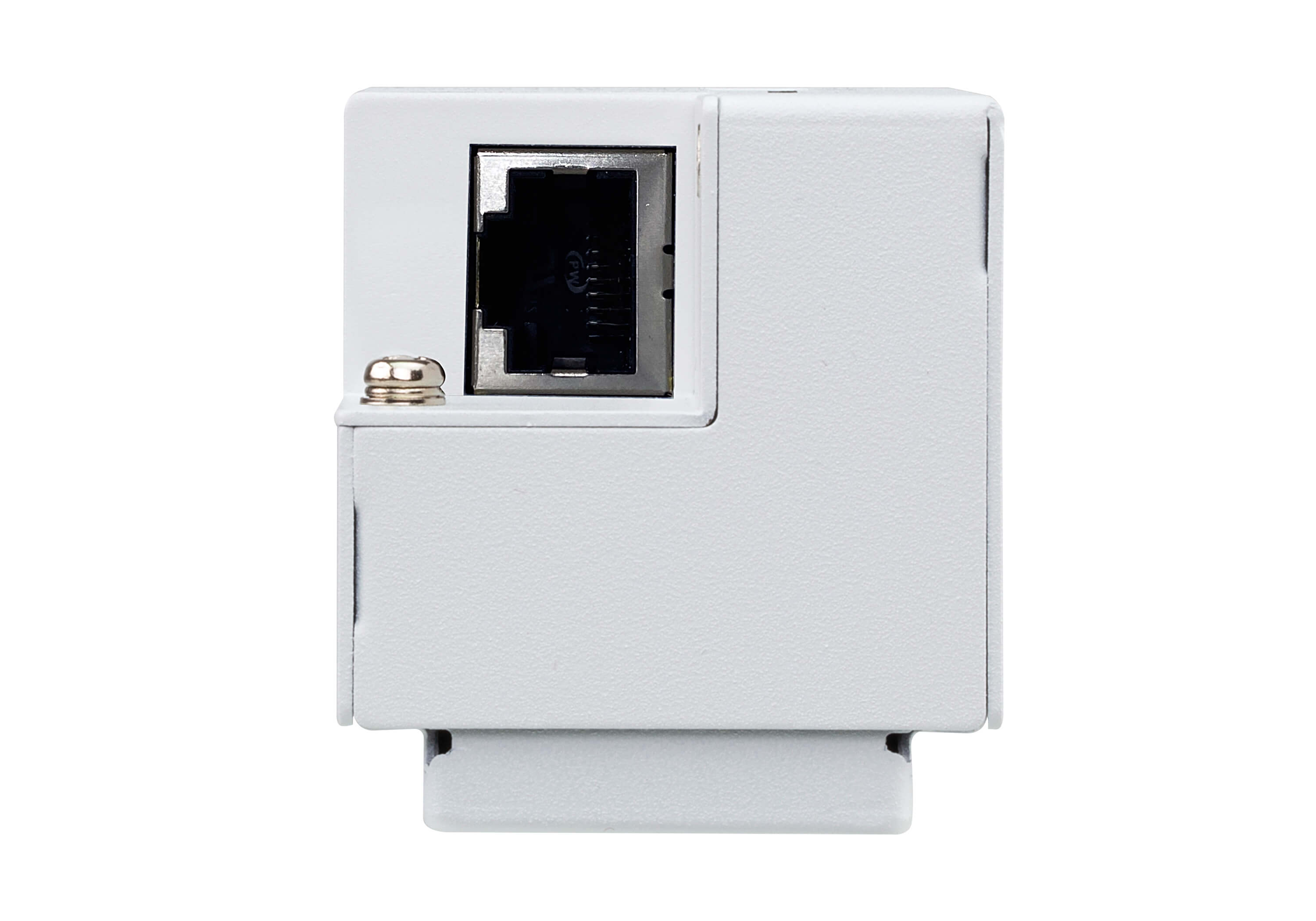

1 x RJ-45 Female |
| Power |
1 x Terminal Block (2 pole, +5V/GND, Green) or
1 x RJ-45 Female (POH) |
| Power Consumption |
DC5V:2.97W:14BTU
POH:3.71W:17BTU |
| Environmental |
| Operating Temperature |
0 - 40°C |
| Storage Temperature |
-20 - 60°C |
| Humidity |
0% - 80% RH, Non-condensing |
| Physical Properties |
| Housing |
Metal |
| Weight |
0.20 kg ( 0.44 lb ) |
| Dimensions (L x W x H) |
6.86 x 4.44 x 5.00 cm
(2.7 x 1.75 x 1.97 in.) |
| Faceplate Dimensions (L x W x H) |
8.60 x 8.60 x 1.60 cm
(3.39 x 3.39 x 0.63 in.) |
| Note |
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
