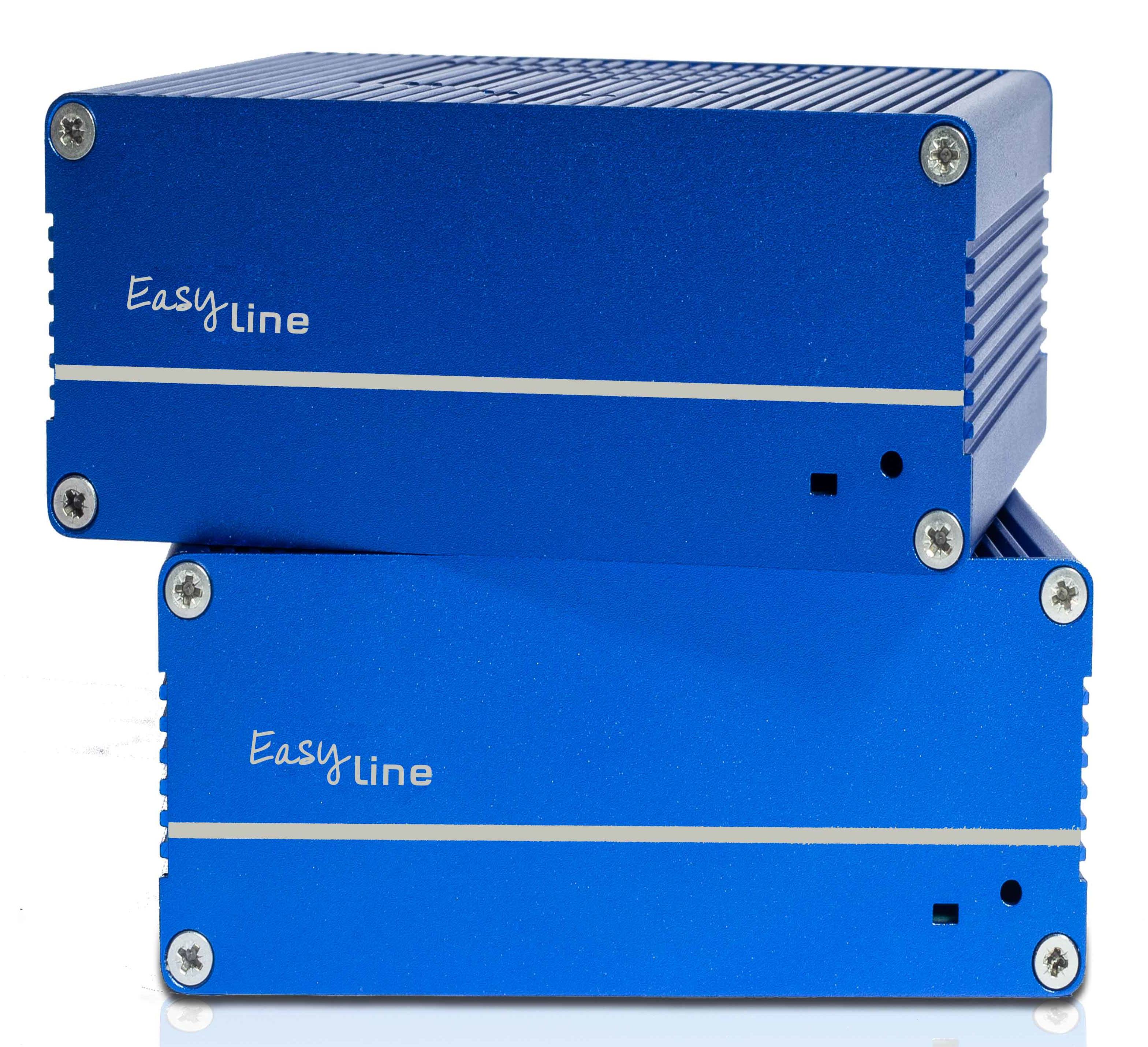

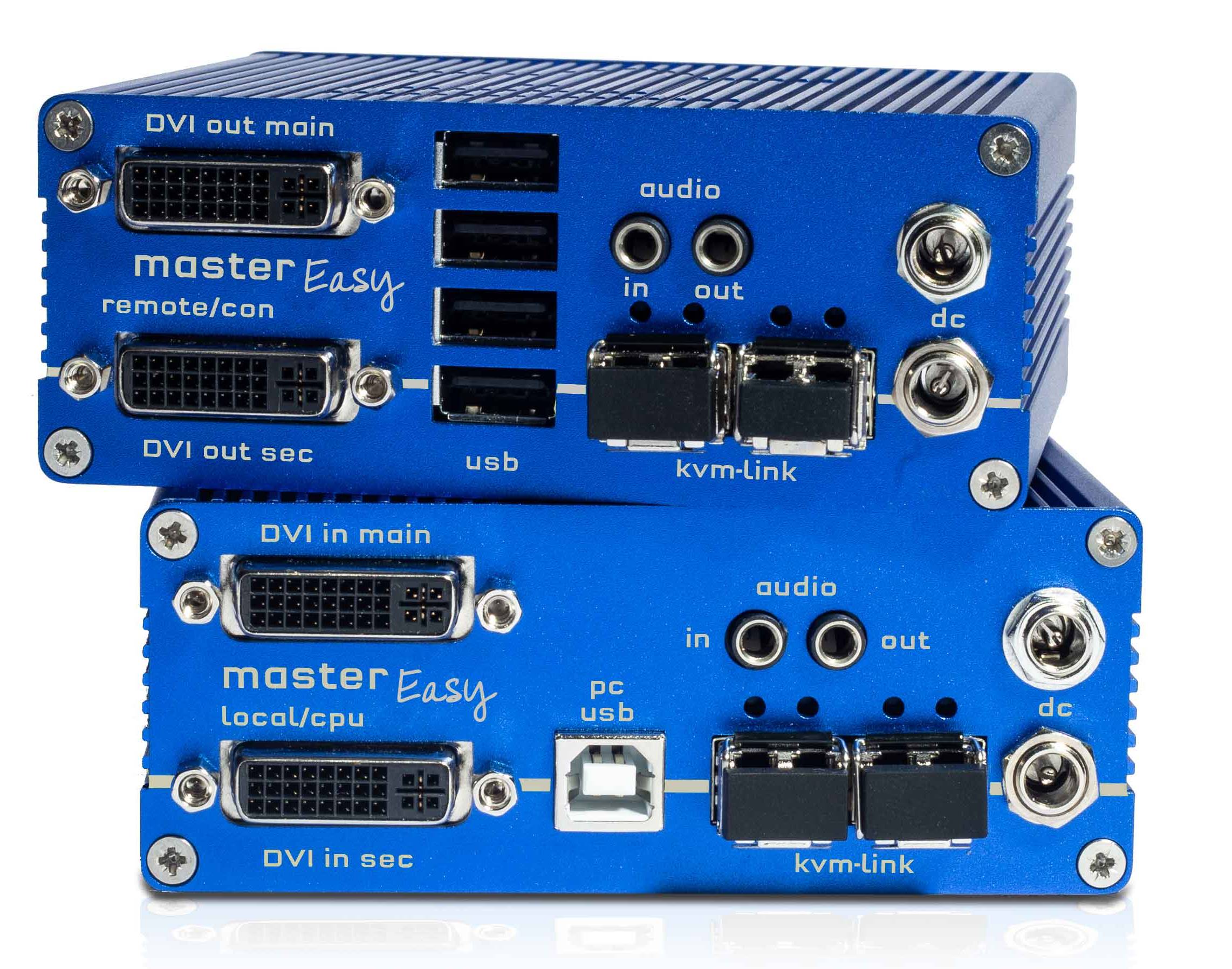

Dual-DVI + 4x USB 2.0 + Audio Fiber KVM-Extender-Set over IP, Mastereasy 8123-SET
- consists of 1x ME2-FL (8123L) and 1x ME2-FR (8123R)
- suitable for MultiMode and SingleMode cables, as they are equipped with SingleMode modules that support both types of cable
KVM Extender DVI, KVM Extender DVI-D & KVM Extender VGA, USB in Fiber
masterEASY dual is a highly optimized KVM Extender over IP for distances up to 160km/99mi at a resolution of 1920x1200@60Hz and is available in fiber. masterEASY dual KVM Extender convince by an ultra flat housing - 4 dual units in 1RU, have embedded sound and are compatible with standard network components. Video Sharing, USB Sharing, Multihead.
For point to point connections or
ALL IN ONE GO - Matrix Switching Systems up to 56 endpoints without user system
BRIDGING - easy switching without Switch
Easy Cross Move - Software feature
Feature - freeze last image (red frame), VGA transferred as DVI, masterEASY KVM extenders are also suitable for 24V systems
USB 2.0 in house development, USB save feature, USB emulation mode & USB sharing
<1.38ms latency with perfect video compression
masterEASY dual is a highly optimized KVM Extender over IP for distances up to 160km/99mi at a resolution of 1920x1200@60Hz and is available in Fiber. masterEASY convinces with an ultra flat housing - 4 dual in 1RU, embedded sound included and the KVM Extender over IP is compatible with standard network components.
The perfect video compression enables the low latency <1.38ms and therefore a delay-free transmission. USB and video are transmitted via a fiber cable.
The in-house development of USB 2.0 transparent is extremely flexible and supports USB devices like tablets, touch screens, sound modules, printers. The USB upgrade supports USB sticks and USB hard drives. The kvm-tec feature "USB save" prevents the intrusion of viruses via the USB interface by deactivating mass storage devices. USB memory upgrade is pre-installed and can be activated. Feature - Freeze last image - in case of a signal failure the last saved image is displayed in a red frame.
Kvm-tec upgrades fOr MASTEReasy DUAL FIBER
(already pre-installed and activatable)
- USB memory
- Sound analog in both directions in CD quality
ALL IN ONE GO
SWITCHINNG UP TO 56 ENDPOINTS
For smaller switching systems up to 56 endpoints.
No user system is required and EASYline is compatible with standard network components like all KVM extenders from kvm-tec. EASYline can also be used for point-to-point connections
FRONTBRIDGING
EASY SWITCHING WITHOUT SWITCH
In frontbridging, 2 Local KVM Extenders can be bridged to 1 remote dual KVM Extender (2 network sockets) and thus one or two monitors can simultaneously display the contents of the PCs with different images and can be operated either right or left.
2 local single Unit + 1 remote dual Unit = Bridging on1 or 2 screens
BACKBRIDGING
EASY SWITCHING WITHOUT SWITCH
In backbridging it is possible to share from one dual local extender to two single remote extender. For all applications that require monitoring at different locations
1 dual local Unit + 2 remote Units = Bridging or Sharing on 1 or 2 screens
EASY CROSS MOVE
SOFTWARE FEATURE
without switch both PCs can be operated with one mouse and one keyboard
2 local Units + 1 remote Unit = Easy Cross Move with 1 keyboard & 1 mouse
... more smart connections
- Automatic Plug & Play installation
- USB transmission rate max 480Mbit/s
- Firmware Flash upgrade without cable
- VGA in - DVI out
- DVI Extension without quality loss
- 4 Dual Extender in 1RU
- 2 years warranty, warranty extension to 5 years possible
We continue to stay transparent – kvm- tec Diagnosis menu
In the diagnosis menu, the runtimes of the individual connected channels are displayed. Both Remote Unit and Partner Local Unit are listed. Additionally the information of the temperature in the FPGA of both units is displayed. Another feature is the cable test. In addition to the main data stream, test datas is transmitted and checked for errors. This process can be done during operation ( Main Link )
In the OSD menu, select the Features menu and press "C" to enter the diagnosis menu
Delivery content - Weight - Dimension
Delivery content - Local (CPU)
1 x ME2-F local (CPU)
1 x wall power supply 12V 1A (EU-plug)
2 x DVI - DVI cable 1,8m/5.9ft
1 x USB cable 1,8m/5.9ft
2 x VGA - DVI cable 1,8m/5.9ft
2 x Audio cable 1,8m/5.9ft (opt)
2 x SFP Module-Multimode up to 500m/1640ft
(alternative Single-Mode up to 20km/12 mi / ItemNr 6835 )
4 x rubber feets
Quick Instruction
Delivery Content - Remote (CON)
1 x ME2-F remote (CON)
1 x wall power supply 12V 1A (EU-plug)
2 x SFP Module Multimode up to 500m/1640ft
(alternativ Single-Mode up to 20km/12mi / ItemNr 6835)
4 x rubber feet
Weight & Dimension
Local (CPU):
108 x 43 x 107,5 mm
4.29 x 1.69 x 4,23 inch
295 g / 0.65 lb
Remote (CON):
108 x 43 x 107,5 mm
4.29 x 1.69 x 4.29 inch
295 g/ 0.65 lb
Shipment weight
SET 1895 g /4.17 lb
(ME1-FR 1005g /2.21lb ME1-FL 890g 1.96lb
