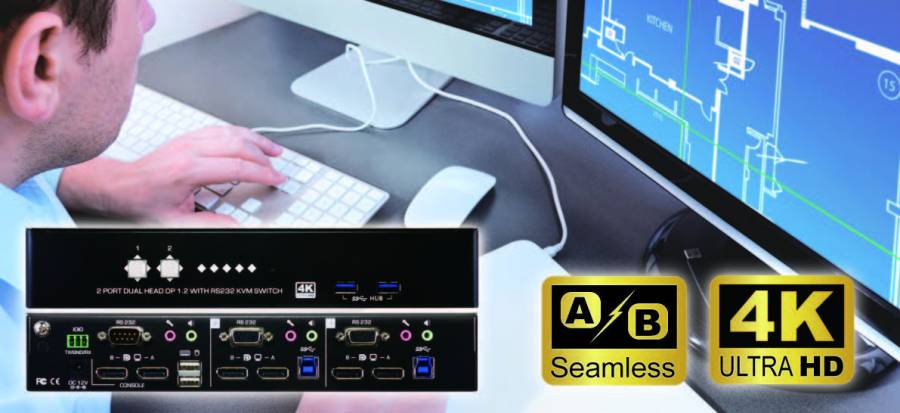

Dual-Display DP Seamless+Keep-Position 4K 60Hz USB KVM-Switch with Audio & USB 3.2 incl. 1.2m Cable, UNICLASS AP-932PSK
The AP-932P 2-port Dual-display DP 1.2 Seamless KVM Switch with Audio, USB 3.2 Gen1 Hub and RS-232 Port is designed specifically for sharing 2 DP monitors with 2 multimedia computers having dual-display DP outputs. With AP-932P, you can fully access those 2 multimedia computers using only one keyboard, one mouse and two DP monitors. This dual-display DP Seamless KVM Switch supports up to 3840 x 2160@60Hz resolution which maximizes your convenience in adapting any display requirements.
The AP-932P Dual-display DP Seamless KVM Switch is capable of a complete versatility in dealing with the functional requirements of all types of advanced keyboards and mice. It features Independent/Simultaneous KVM/USB Hub/Audio switching operation. Conventionally, as the user performs KVM switching,
the Audio and USB hub will be bound together and switched to the destination computer source. Now, user can enjoy the flexibility of connecting the audio or USB hub to one computer while switching the KVM to another computer. This function perfectly offers you an uninterrupted multimedia experience. Even more conveniently, it enables high-speed USB 3.2 Gen1 peripherals sharing among those switched computers.
Aside from that, AP-932P further supports DP Full Video Emulation, adapting any ultra HD displays to ensure a crystal-clear image quality. With UNICLASS's seamless KVM switching technology, users can have the smoothest switching experience among the switched computers.
DisplayPort 1.2 and Full DP Video Emulation for Ultra HD Displays:
AP-932P is compliant to DisplayPort 1.2 specification, providing you a crystal-clear video quality up to 3840 x 2160@60Hz. The user can enjoy its incredibly real and immersive picture experience for all his favorite contents on high-profile gaming monitors. Its DP Full Video Emulation function also offers you a hassle-free setup to adapt any ultra HD displays.
Seamless KVM Switching:
With UNICLASS's seamless KVM switching technology, users can enjoy zero-latency ulta-fast PC-port switching without wasting a second.
True Transparent USB (TTU) Emulation supports all advanced keyboard and mouse functions:
With the TTU Emulation Technology embodied within a new ASIC chip, AP-932P is capable of a complete versatility in dealing with any functional requirements of all advanced keyboards and mice on the market. No matter users are using high performance gaming keyboards/mice in exciting gaming sessions, or they are using the same advanced keyboards/mice in other high-profile computer maneuvering operations, they will appreciate the convenience that the TTU technology has brought to them.
Two USB 3.2 Gen1 device hub ports and keyboard hotkeys:
With the 2 built-in USB 3.2 Gen1 hub ports on the unit panel, users are allowed to selectively share high-speed USB 3.2 Gen1 peripherals (storage media, printers, scanners, etc.) with connected computers. In addition to the front panel buttons which perform PC-port switching, AP-932P further builds in keyboard hotkeys to implement a series of advanced features to operate the KVM switch.
Audio/USB hub Independent switching offers uninterrupted multimedia experience while KVM is being switched:
The independent switching function for audio (speakerµphone) and USB hub allows users to freely allocate their multimedia resources over the computers connected with the AP-932P. You can now manage the audio and the USB hub ports more flexibly than ever, i.e., keeping the audio and the USB peripheral going with PC1, then switching the KVM to PC2.
Firmware upgrade via USB port:
The AP-932P allows users to upgrade the firmware to enhance the compatibility with other devices, or its functions and performance. With the firmware upgrade feature, your investment on the KVM switch is further assured and its life-time value is also maximized!
Features:
■ 2-port DP KVM switch with audio, USB 3.2 Gen1 hub and RS-232 port
■
Note: this item has a clearly audible fan built in that runs continuously
■ Seamless KVM Switching
■ DisplayPort Full Video Emulation Ready
■ DisplayPort 1.2/1.1 specification compliant supports Ultra HD Displays
■ True Transparent USB (TTU) Emulation Technology Ready
■ Independent/Simultaneous KVM/USB Hub/Audio switching operation
■ Comprehensive driver support for all types of USB keyboards and mice
■ USB 3.2 Gen1/2.0/1.1 specification compliant
■ Supports digital video resolution up to 3840 x 2160@60Hz
■ Supports Windows 7/10/11, Linux and Mac OS
■ Multi-platform supports PC and Macintosh
■ 2 USB 3.2 Gen1 hub ports for high-speed USB peripheral sharing
■ Low power consumption using ASIC
■ Firmware upgradable via USB port
Specifications:
| Model No. |
AP-932P (SK = Starter Kit = include 1.2m long PC cables) |
| Product Description |
2-Port Dual-Monitor DisplayPort 1.2 4K 60 Hz USB 3.2 Gen1 KVM Switch |
| Number of Ports |
2 |
| Number of Console |
1 |
| Console Keyboard Connector |
USB 1.1 Type A Female |
| Console Mouse Connector |
USB 1.1 Type A Female |
| Console Video Connectors |
2 x DisplayPort Female |
| Console Audio/Mic Connector |
2 x 3.5mm Audio/Mic Jack Female |
| Console USB Hub Ports |
2 x USB 3.2 Gen1 Type A Female |
| PC Keyboard Connector |
USB 3.2 Gen1 Type B Female |
| PC Mouse Connector |
Via PC Keyboard Connector |
| PC Video Connectors |
4 x DP Female |
| PC Audio/Mic Connector |
4 x 3.5mm Audio/Mic Jack Female |
| PC selection |
2x Push Buttons / keyboard Hotkeys |
| Digital Display Resolution |
3840 x 2160 @ 60 Hz by use max. 5M HBR2 certified cable |
| Keyboard & Mouse Emulation |
Yes (TTU) |
| Auto Scan Delay Time |
5~60 sec |
| Operation Temperature |
0 ~ 40 °C |
| Storage Temperature |
- 20 ~ 60 °C |
| Humidity |
0 ~ 90 % RH, Non-Condensing |
| Power Adapter |
DC 12 V / 2A |
| Weight |
1045 g |
| Dimension(L×W×H) |
255 x 135 x 44 (mm) |
| Safety / Emission |
FCC, CE, RoHS |
B2B Product - Designed for use in a commercial environment.
