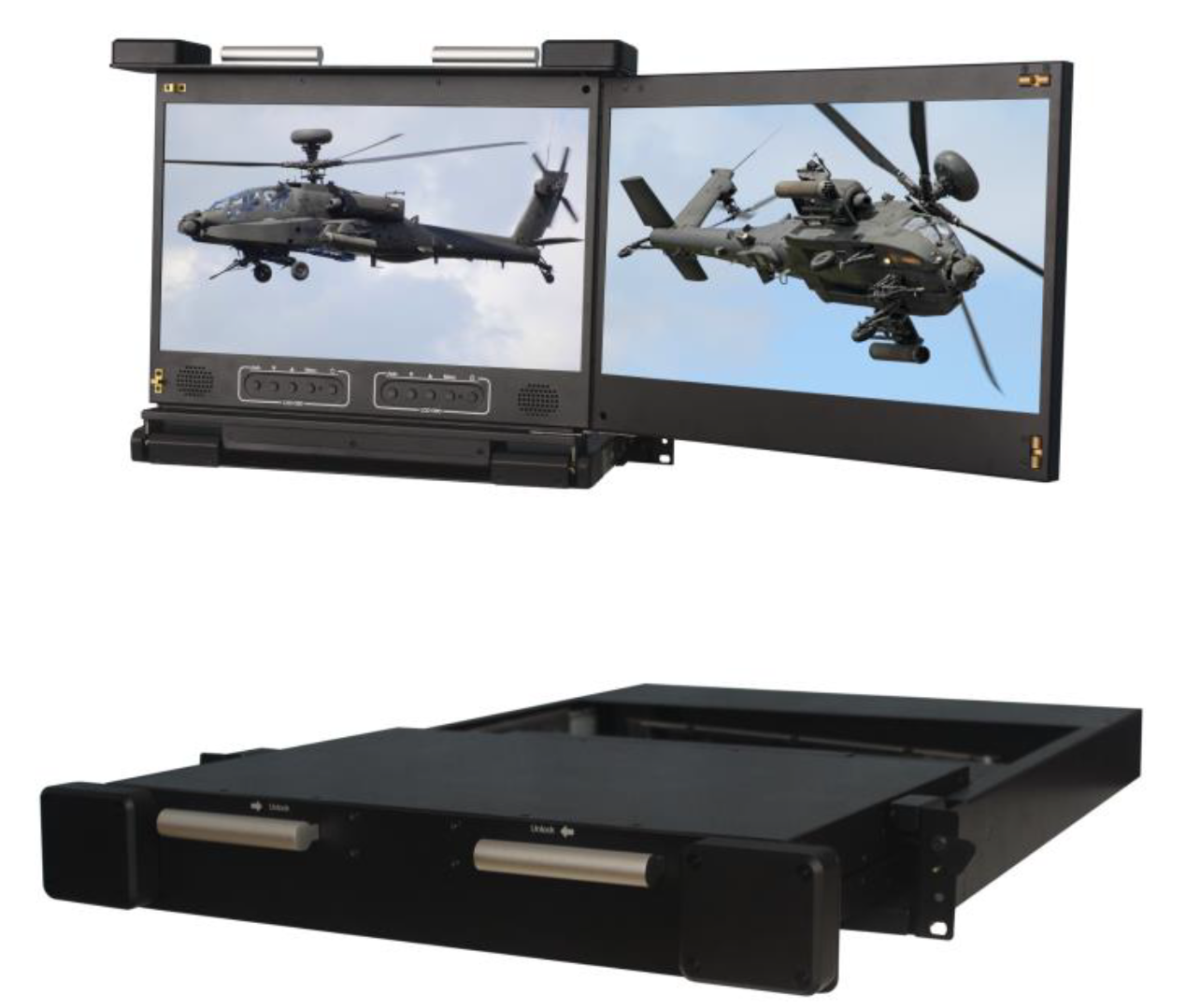

Rack Mount Dual 1080p 17,3" LCD Display Drawer, ANNSO RMD-17W-D2
Features
• 2U foldable dual 17.3 inch widescreen LCD display Drawer
• Dual DVI & VGA Port
• 1920 x 1080 Ultra high resolution
• Support FHD with 1080p resolution.
• Build in 2x 2 watts speakers
• Independent front osd control buttons to optimized display
User Controls Interface
Power ON / OFF via Front Button
Power Mode Status LED indicator
OSD ( On Screen Display ) Buttons
LCD Characteristics
Screen Size: Dual 17.3 inch widescreen
Backlight Type: LED
Resolution: 1920x1080
Contrast Ratio: 400:1
Brightness ( cd/m2 ): 300
View Angles ( H/V ): 140/120
Pixel Size ( HxV ) mm: 0.1989x0.1989
Max. Color: 262K
MTBF ( Hrs. ): 10,000
Input Signals
DVI-D: Dual DVI-D 24Pin Connector (Female)
VGA: Dual D-SUB 15Pin Connector (Female)
Audio: 1x 3.5” Jack
Power Input: Standard IEC Inlet
Power Specifications
AC Power Input: Standard IEC Type Power Cord with Internal Power adapter, 100-240V AC Input
Mechanical and Environment
Height: 2U Foldable
Rack Depth: 550 to 950 mm (cabinet front rail to rear rail)
Mounting: Rack Mount with tilt adjustment
Construction: Metal Housing
Operating Temperature: 0 - 50 deg. C
Operating Humidity: 5% - 95% (non -condensing)
Anti-Vibration: 5 - 500 Hz / 1 Grms PTP
Anti-Shock: 15G / Peak (11 ms)

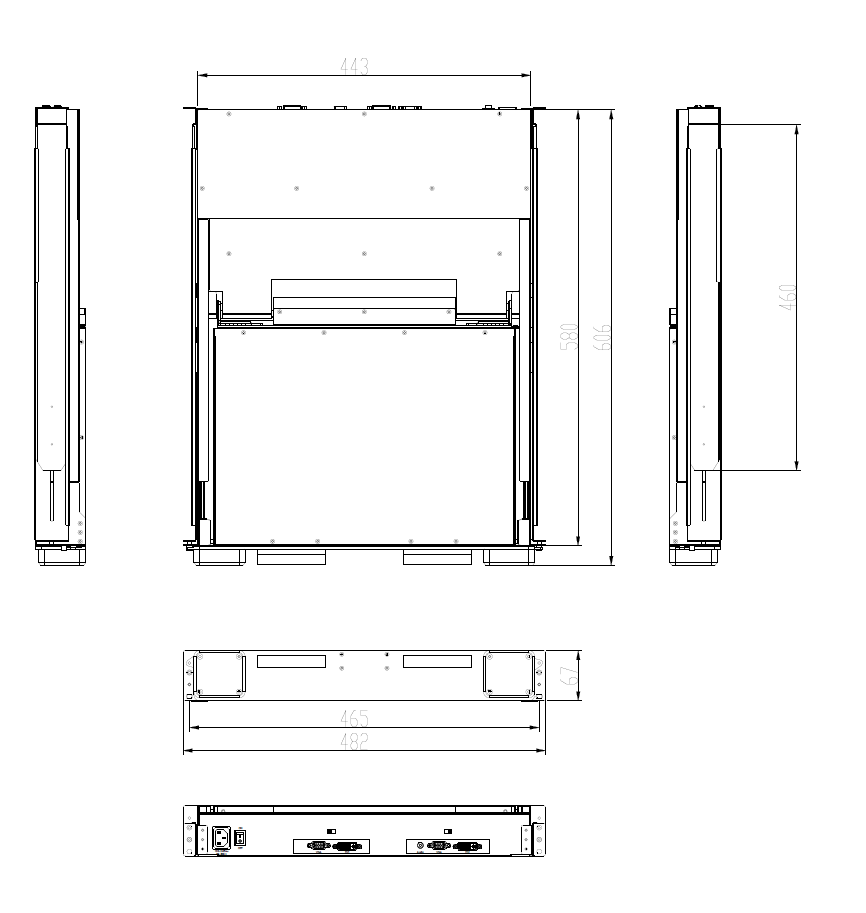

Physical Dimension (WxHxD): 443 x 67 x 580 (mm)
Packing Dimension (WxHxD): 590 x 215 x 735 (mm)
Net Weight / Gross Weight: 12.5 / 17 (KGs)
Certification and Approvals: CE / FCC / RoHs
Note: only for Business Customers and no cancel of order or return of product possible.
