Haitwin-Delphin AW-1908-DVI 1U 19" KVM-Console with 19" DVI LCD and 8-Port DVI KVM-Switch with 3 x Front-USB 2.0
AW-1908-DVI is a 19“ HD /LCD-Monitor, Keyboard-Drawer with LED Backlight. a value Keyboard with number block and touchpad .Integrated 8 Port DVI / USB KVM and 3 Front USB connector complete the external design. The casing conforms the 1U Standard, easily installed and mountable with the included mounting kit.
Specifications :
• DVI-Graphic Card ensures always a proper resolution even if the background needs to be rebooted
• DDC/EDID-reflection signal with Active Sync Replication (A.S.R) ensures a permanent (all Time) DDC-Emulation places the transmission of the monitor informations to all available Ports ,Allows the use of the original monitor driver of the monitor manufacturer and DVI-"boots“ in the background
• Port-choice with the Select-Button or HotKeys (5 alternative keyboard shortcuts)
• Programmable Hotkey feature alternative Hotkey (Scroll, Cap, Esc, F12, Num)
• Integrated 3 Port-front USB2.0 device-Hub for shared use of USB2.0 und USB1.1 terminal device (another Mouse, Scanner, Printer, Cameras, USB-Storage medium, ...) to all PCs
• Independant/Shared change of USB2.0 device , ON/OFF-switchable audible signal
• LED Port/Status-Display with separate 2.0 Hub Display
• UHCI, OHCI USB Interface Support
• Independant or shareable USB2.0 Hub and PC-Port selection
• Permanent Keyboard /Mouse emulation for waiting times after the switch.
• Firmware over USB always up to date
• USB/Keyboard/Mouse emulation upgradable.
• Cascadable for 64 Servers
• OSD Menu in the following langagues adjustable German, English Spanish, Italian , French, Portuguese, Korean, Cyrillic, Japanese, trad. Chinese, mod. Chinese
• Supports all USB suitable operationg systems: for exemple Win98SE / 2000 / 2003... / ME / XP / Vista / Server 2008 /Windows 7, Windows 8 Windows 8.1 and the following versions LINUX, ...
• Compatible with MAC G3/G4, MACmini and iMAC. It works with Mac OS X 10.4.10 (and other systems)
Properties :
• 1U 19“ LCD console , 640mm deep
• Stepless,adjustable angle from 0 to 105° over high quality unique torque hinges
• Easy one man assembly with the angles as provided by the console
• Adjustable depth from 600 mm up to 1130 mm tread depth
• Chromed metal handle
• Practical knurled screws
• 3 Front USB
• Integrated 8 Port DVI / USB KVM
• High graphic resolution, up to 1920 x 1080 with 60Hz DDC, DDC2 und DDC2B
Keyboard versions:
In default order we do ship out with German (DE) keyboard layout.
Available also in following versions: US-English (US), UK-English (UK), French (FR), Spanish (SP), Italian (IT) and Swiss / German (CH)
Versions available on request: Turkish (TK) and Russian(RU)
Technical data:

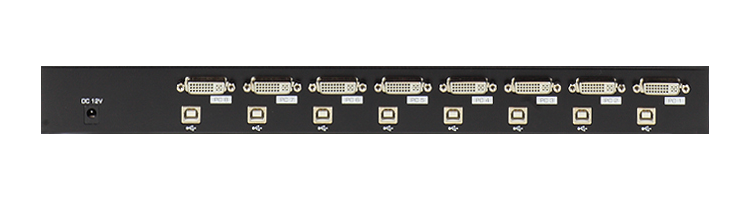

Connections |
Graphic |
8 x DVI-I Socket (use only DVI-D cable ) |
Keyboard / Mouse |
8 X USB-Typ-B |
External |
3 x USB 2,0 (switchable) |
Power supply |
1 x DC-12V |
Connection cable (not included in the delivery) |
USB / DVI-cable |
KAB-102DVI (1,8m) |
Switch |
LCD settings |
4 Pressure switch |
ON / OFF |
1 Pressure switch |
OFF (LCD folded) |
1 Semi-covert pressure switch |
LED-Display panel |
Operation |
1 x green |
Number |
1 x green |
Capital letters |
1 x green |
Scroll |
1 x green |
LED-Display KVM |
Port/Switch |
8 x green (Port) |
|
8 x red (USB) |
Emulation |
Keyboard/ Mouse |
Yes (HID with USB1.1 |
Display |
Yes(A.S.R.) |
Port selction |
Hotkey /Key sequence of keyboard |
Graphic |
19“ LCD |
1280 x 1024 (DVI Single Link) |
Colors |
16,2 Mio. |
Frame Rate |
H: 31,0 KHz. – 81,0 KHz.
V: 56,0 KHz. – 76,0 KHz. |
Viewing angle |
H: 140° / V: 130° |
Bandwith |
140 Mhz. |
Brightness |
300 cd/m² |
Contrast |
700:01:00 |
Reaktion time |
4 ms. |
Pixel pitch |
0,264mm (H) x 0,264mm (V) |
Backlight |
LED |
Input values |
100 V. – 240 V. AC, 48 Hz – 62 Hz |
Output values |
DC 12V., 4,16A |
Power consumption |
230 V / 18,8 Watt |
Certification |
RoHS, RoHS2, CE |
Environment |
Operating temperature |
0 – 40°C |
Storage temperature |
-20 – 60°C |
Humidity |
0 – 80% relative humidity (non condensing) |
Physical properties |
Casing |
High performance steel |
Color |
RAL 9005 |
Weight |
12,9 kg incl. angles |
Dimension (L x W x H) without handle |
64,00 x 48,2 x 4,4cm (19“ / 1U) |
Dimension (L x W x H) with handle |
68,3 x 48,2 x 4,4cm (19“ / 1U) |
Packaging |
Weight |
17,1 kg |
Dimension (L x W x H) |
77,5 x 58 x 21 cm |
