KVM-over-IP 4K Ultra-HD HDMI / USB 2.0 / Audio / RS232 / IR -- Extender-Set up to 150 m (IP/CAT), SC&T HKM02B-4K-2
The 4K KVM-over-IP series extends 4K Ultra HD HDMI, USB, analog audio, RS232, and IR over CAT cable or network up to 150 meters, with local HD monitor output.
It provides superior video quality up to 3840x2160 4:4:4 UHD @ 30 Hz or 1920 x 1200 (HDMI 1080p up to 1920 x 1080) resolutions, and using cost effective Cat5e cable, instead of HDMI cables, for an easy, neater and reliable installation. The local and remote units can be connected together for a Point-to-Point connection via CAT5e/6/7 cable or a Point-to-Many connection via a managed network switch.
It is optimized for applications at broadcasting system, multimedia display and multi-data sharing, digital signage, home network integration, and industrial control, hospital, education, security, Matrix network system and system control over RS232 and equipment control over IR.
DEMO-Link (external to YouTube) which shows how easy and fast this system can be switched between single frame display and different VideoWall modes via the supplied software:
Switchable via buttons on the receiver, IR remote control and via Android or iOS app. Video streaming function.Special Feature:
- 1080p (1920x1080) @ 60 Hz
- 4K Ultra HD 2160p @ 30 Hz (3840x2160 UHD 4:4:4)
- Supports 2560 x 1440, @50Hz
- Extend and distribute 4K HDMI signal with bi-directional RS232, USB signal, IR and analog audio signals over LAN.
- Supports resolutions up to 4K @ 30 Hz Ultra HD.
- HDCP 2.2 compliant.
- Transmission range up to 150M over CAT5e/CAT6.
- Support SFP optical transceiver, single mode transmission distance up to 60KM.
- Support Windows based management software, using PC for easy setting input/output link.
- Support Android/iOS APP for channel select and management.
- Support IR remote control or front panel button for channel select and management.
- Support up to 8x8 video wall.
- Support output resolution up/down scale: 2160p 60 Hz (YUV420) input to 2160p 30 Hz or 1080p 60 Hz output.
- Supports full duplex Bi-Directional RS232 communication (115200 MAX) by control software on a PC, or other automated control system to control devices attached to the extenders.
- Built in RS232 distribution function, to send RS232 signal from one TX to multiple RX.
- RS232 port support external Keypad/Console control. (Custom made available)
- Support Dolby TrueHD®, and DTS-HD Master™, LPCM audio up to 7.1 channels 192Khz
- Built in Bi-Directional analog audio transmission (only in unicast mode).
- Built in Bi-Directional IR extension.

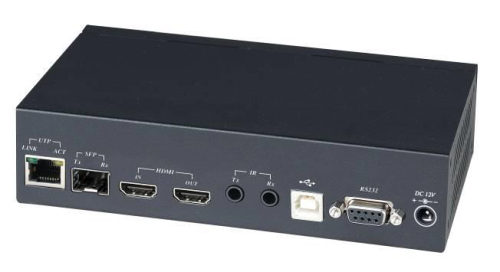

- HKM01BT-4K transmitter unit built in HDMI local loop output.
- HKM01BR-4K receiver unit with 4 ports USB devices (2 port USB 1.1 front & 2 Port USB 2.0 rear), to extend USB peripheral devices, such as flash disk, hard disk, keyboard, mouse, etc.
- Use IGMP and Jumbo frame protocol Gigabit Switch Hub to do HD signal distribution and transmission.
- Support point to point and multiple source devices to multi-display connections via Gigabit network switch.
- Support total of transmitter unit up to 1000 pieces, receiver unit over 60000 pieces based on the number of ports on your network switch.
- Perfect for large scale remote HD content access and security monitoring systems, digital signage applications.
- Option Model: TPN002U (1U 19” Rack Mounting Panel, allow fix two unit of HKM01BT-4K, HKM01BR-4K)
USB Hot-Key Funktion:
Im Multicast-Mode wird multi USB-Tastatur/Maus an jeden Receiver unterstützt, rein Plug&Play.
Nur USB FLASH Drive / Hard Disk können nicht zeitgleich auf "einen" Rechner zugreifen.
Sie müssen nur 3 x die Taste "Pause/Unbr" tippen, um die USB-Drive Verbindung zum eigenen Receiver zu aktivieren.
USB Hot Key Function:
In multicast mode support multi USB keyboard and mouse in each receivers, just plug and play, but only one USB FLASH drive / hard disk could be used at same time.You have to click “Pause/Break” key three times of the keyboard on the receiver to establish USB FLASH drive /hard disk connection.
Package Content:
1 x HKM02BT-4K (Transmitter-Module)
1 x HKM02BR-4K (Receiver-Module)
2 x Power adapter 5V DC / 2A
2 x IR emitter cable
1 x IR remote control

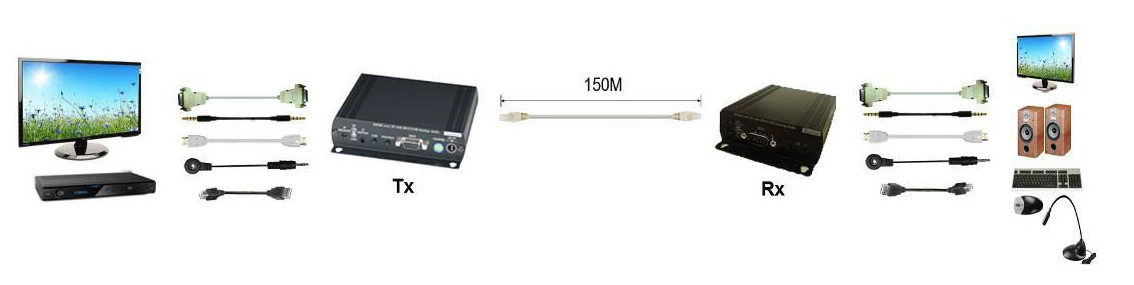

Point to Point Direct Connection: (Extender) :
Multiple TX to Multiple RX over Gigabit-Ethernet-Switch:
Specifications:
|
ITEM NO. |
HKM01BT-4K |
HKM02BR-4K |
|
Support Resolution |
4K Ultra HD 2160p @ 30 Hz (3840x2160 UHD 4:4:4), |
|
|
Transmission Distance |
CAT5e, CAT6, CAT7: 150M (max) |
|
|
HDMI Connector |
HDMI Type A x 2 |
HDMI Type A x 1 |
|
USB Connector |
USB Type B x 1 |
USB Type A x 4 |
|
RS232 Connector |
DB9 (Female) x 1 |
DB9 (Male) x 1 |
|
Link Connector |
Ggabit RJ45 x 1 |
|
|
Audio Connector |
3.5 mm Phone Jack x 2 |
|
|
IR Connector |
3.5 mm Phone Jack x 1 |
|
|
IR Receive/Emit Angle |
Horizontal ± 45, Vertical ± 35 / ± 30 |
|
|
IR Receive/Emit Distance |
5 M |
|
|
Power Supply |
DC 5V / 2A |
|
|
Power Consumption |
600 mA (typical) |
500 mA (typical, NO USB device) |
|
Temperature |
Operation: 0 to 55°, Storage: -20 TO 85°, Humidity: up to 95% |
|
|
Dimensions mm |
210 x 123 x 40 |
167 x 103 x 40 |
|
Weight g |
680 |
500 |
This product, we will only accept orders from business customers and will only ship out to business customers.
