LANBE AS-7100HLS 17" extra short LCD KVM Console, combo support (USB/PS.2)

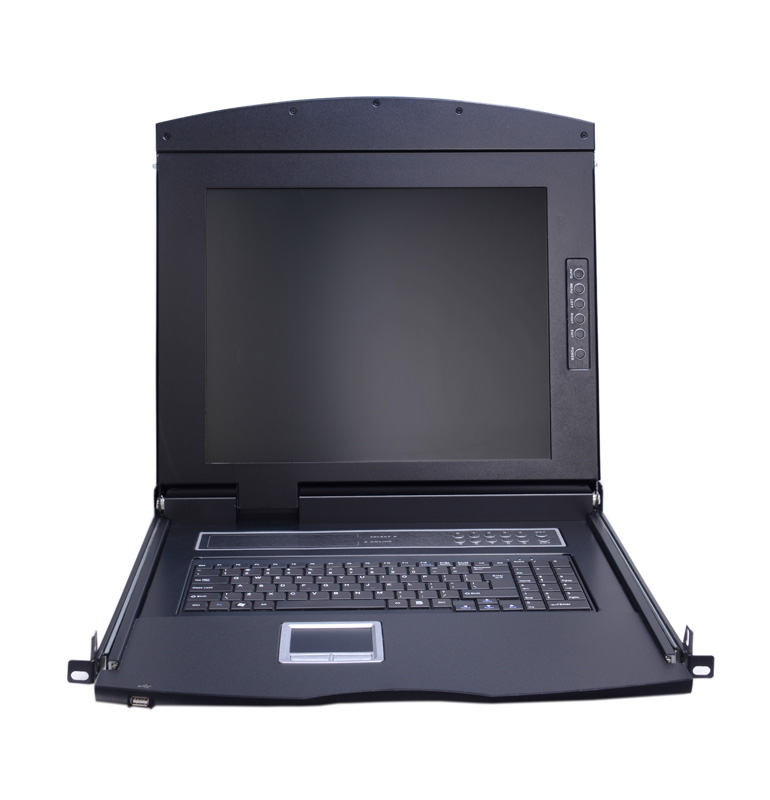

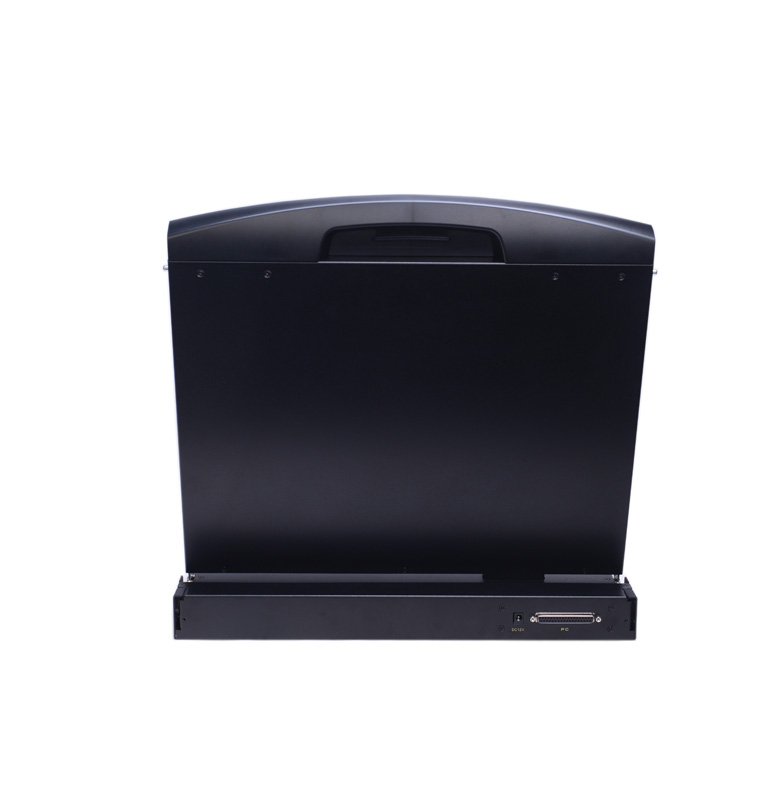

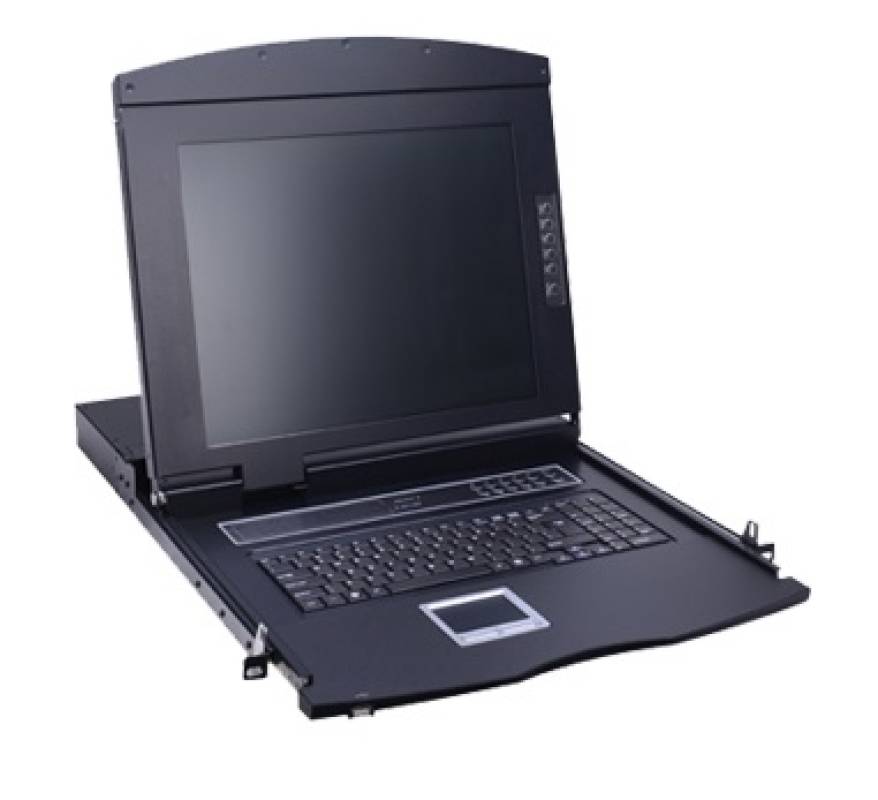

AS-7100HLS is a single rail 17“ Monitor, Keyboard-Drawer with LED Backlight. It integrates a single port HDMI KVM switch, monitor, keyboard & mouse into 1U height and is used to control one computer. A value keyboard with number block and the integrated touchpad are completing the external design. The housing conforms the 1U standard, is easily installed and mountable with the included mounting kit. Depth: 462.6mm (with handle)
FEATURES

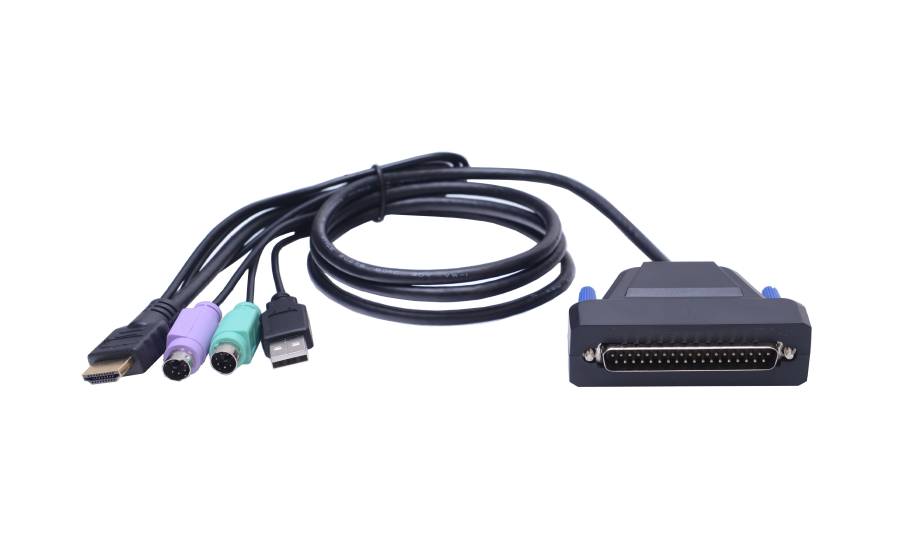

* Front LCD Console + DB 37pins cable in short total depth 410mm, supports PS.2/USB
* Adjustable depth from 600 mm up to 1000 mm tread depth
* HDMI Input, PS/2 or USB for Keyboard und Touchpad/Mouse
* Support friendly external power supply
* Support DOS, Windows Series /Server 2008 / Server 2013, Linux, MacOS, etc.
* Perfect keyboard / mouse emulation for safe function on all computers and operating systems
* high and clear resolution 1280 x 1024 (60Hz)
Keyboard Versions
The product is equipped with german (DE) keyboard as standard. Other keyboard versions are available. Please state in your Order Comments, if you need one of the following Keyboard layouts. These layouts usually are on stock:
US-English (US), French (FR), Spanish (SP), Italian (IT), Swedish/Finnish (SWE/FI), Swiss (CH).
These Layouts are available with longer lead time (by request):
UK-English (UK), Russian (RU) and Turkish (TK).
| Specifications |
|
|
|
| |
|
|
|
| Type |
AS-7100HLS |
| Computer Connection (direct/max) |
1 |
| CPU Port Selection |
- - |
| IP Remote Control |
No |
- - |
| LCD monitor |
Monitor type |
17'' SXGA color TFT-LCD |
| Ratio |
4:3 |
| Visible square |
337.920(H) × 270.336(V) |
| Resolution(max) |
1280 x 1024 @ 60HZ |
| Support Color |
16.7M (RGB 6 bit + Hi_FRC) |
| contrast |
1000:1 (Typ) |
| Back light |
LED |
| Pixel Pitch |
0.264 x 0.297mm |
| LCD MTBF |
100,000 hours |
| Input power |
DC 12 V |
| Connectors |
PC connectors |
1x HDMI |
| 1 x Kombi-USB for keyboard and mouse |
|
| 1 x PS/2 female (purple) |
| 1 x PS/2 female (green) |
| 1 x USB (front) for external mouse or keyboard |
| Keyboard |
Keyboard |
Standard 100keys (10 different languages for choose) |
| Compatible IBM/AT |
Win Series/Server 2008/Server 2013/Linux, MacOS, etc. |
| Using life |
>1,000,000 times |
| Mouse |
Type |
Touch Pad |
| X/Y resolution |
>1000dots/inch (40x40/mm) |
| Using life |
>1,000,000 times |
| Power |
Power (AC) |
~100V-240V |
| Using life |
MTBF >60,000hours 25 °C |
| Housing |
Metal ( black ) |
| Rail system |
Single Rail |
| Gross weight |
15.0 kg |
| Dimensions (installation depth) |
407.5 x 450 x 44.5mm |
| Dimensions (with handle) |
462.6 x 450 x 44.5mm |
| Rack installation depth |
410mm - 900mm (min/max adjustable) |
|
| Operating / Storage Temp |
-10 - 50°C / -20 - 60°C |
Note:
For Business user and Industrial user. only.
Not suitable for consumer user.
No sale to consumer customer.
