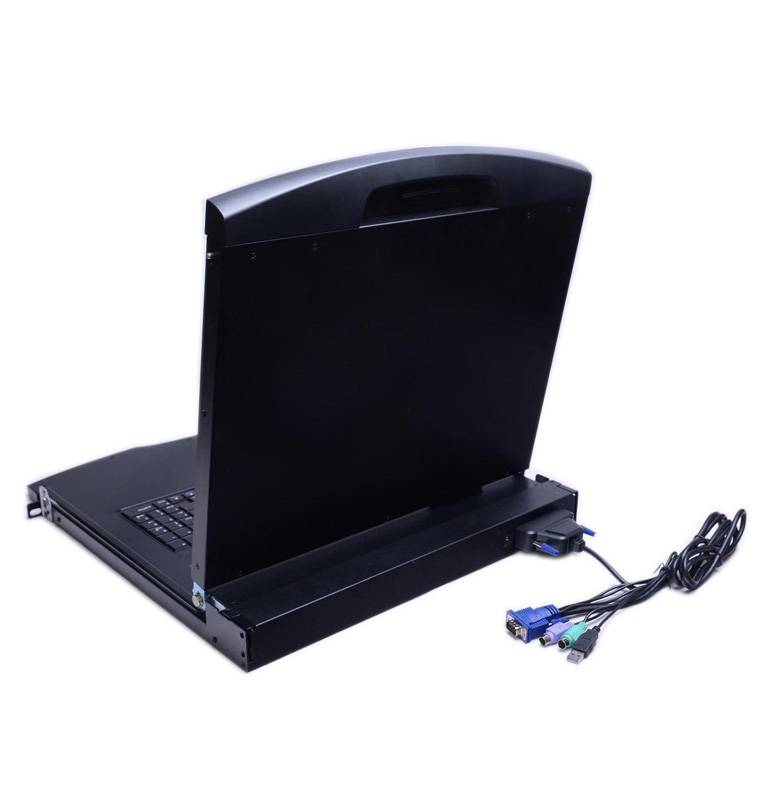

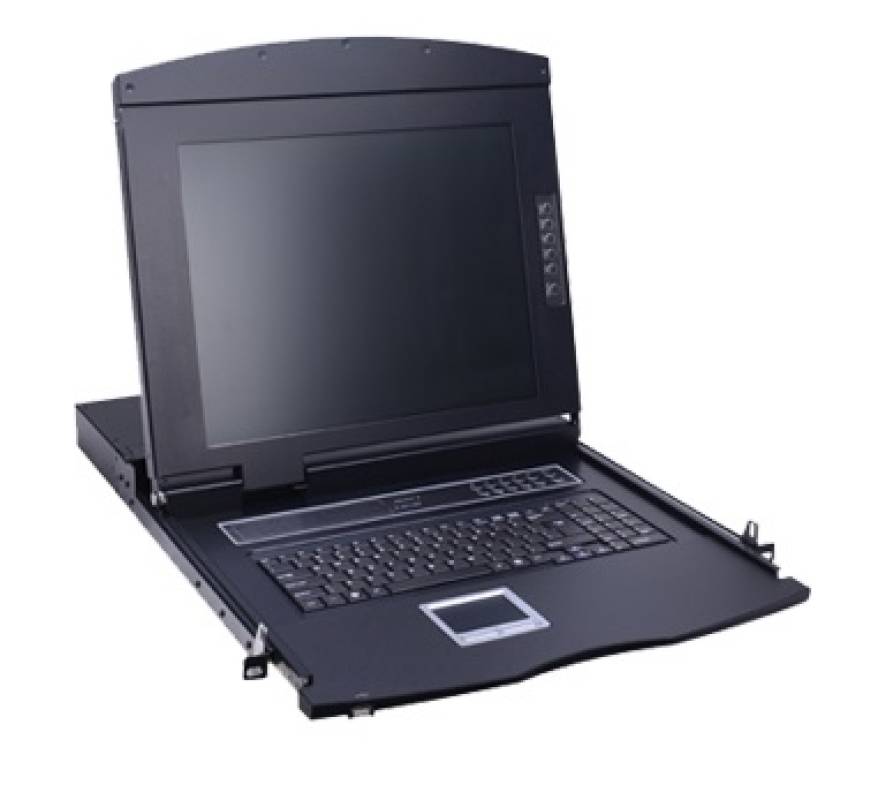

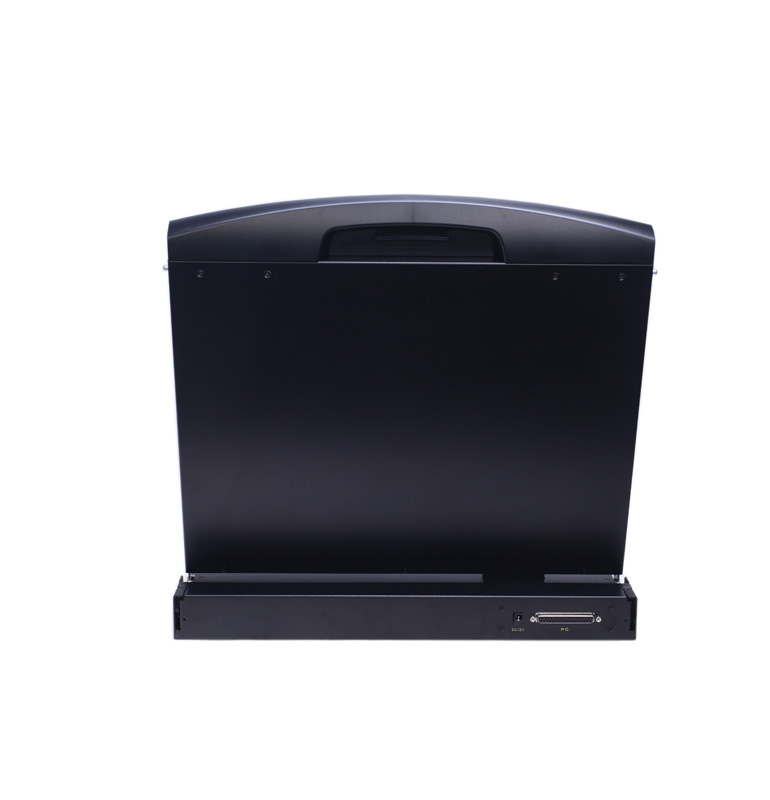

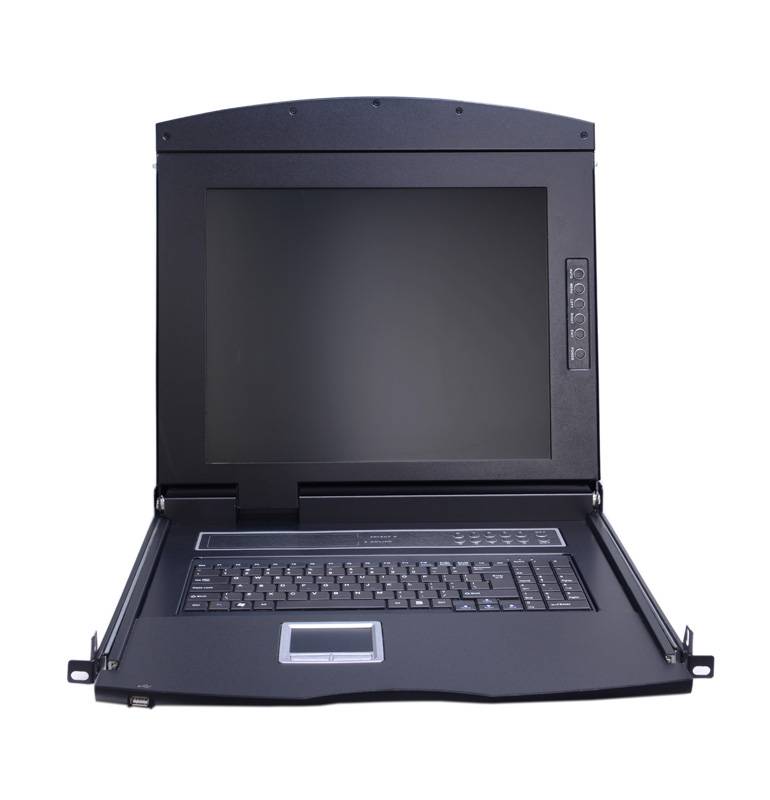

LANBE AS-7100ULS 17" extra short LCD KVM Console, combo support (USB/PS.2)
AS-7108ULS is an extra short LCD KVM console featuring an integrated 17" LED LCD panel, over-thin keyboard, and touchpad in a 1U rack-mountable Slideway™ housing. With A Grade 17" TFT LCD, The highest resolution: 1920*1080 60HZ; the optimum resolution: 1280*1024 60HZ. Compared with traditional keyboards, monitor and mouse, it could save almost 85% space.
Features:
Control platform with LCD, keyboard, mouse and multiple ports KVM switch.
1U height, suitable for 19’’ standard cabinet installation and metal structure.
17’’ LED LCD screen with high brightness, high clear and high resolution.
Control platform can be totally pulled out from the cabinet and the LCD screen can be turned on to 120 degrees.
Mouse touch board with two function button.
Front panel with lock to prevent damage by accident.
External power.
Automatic power on/off. When pulling control platform out from cabinet, the power turns off automatically. When pushing it into the cabinet, the power turns on automatically.
An easy to use OSD menu.
Emulation
Be compatible with PS/2, USB standard interface.
Support VGA, SVGA, XGA video input.
Accord with DDC, DDC2, DDC2B standard and VESA standard.
Support esolution of 1280*1024 60HZ;
Support multiple operating systems: all Windows, NT, UNIX, LINUX...
Keyboard Versions
The product is equipped with german (DE) keyboard as standard. Other keyboard versions are available. Please state in your Order Comments, if you need one of the following Keyboard layouts. These layouts usually are on stock:
US-English (US), French (FR), Spanish (SP), Italian (IT), Swedish/Finnish (SWE/FI), Swiss (CH).
These Layouts are available with longer lead time (by request):
UK-English (UK), Russian (RU) and Turkish (TK).
Specification:
|
Type
|
AS-7100ULS
|
|
LCD monitor
|
monitor
|
17” SXGA Color LED-LCD
|
|
visible square
|
304.128 (H) * 228.096 (V) mm
|
|
Resolution(optimal)
|
1280*1024 60 Hz
|
|
color
|
16.2 M / 262K colors
|
|
Luminance, White (5P)
|
250 (center, Typ)@ 60 mA
|
|
contrast
|
700 : 1 (Typ)
|
|
backlight
|
LED
|
|
Pixel Pitch
|
0.297 (per one triad) x0.297
|
|
LCD MTBF
|
50,000 hours
|
|
Input power
|
DC 12V
|
|
Keyboards
|
keyboard
|
99 keys
|
|
Compatible IBM/AT
|
WIN95/98/98SE/ME/2000/2008/XP, VISTA, WIN 7, WIN 8.x, WIN 10, WIN NT,UNIX,LINUX....
|
|
Port
|
Standard PS/2 & USB
|
|
Using life
|
>1,000,000 times
|
|
Mouse
|
X/Y resolution
|
1000 dots/inch 40x40/mm)
|
|
hardware connector
|
Standard PS/2 & USB
|
|
Os support
|
WIN95/98/98SE/ME/2000/2008/XP, VISTA, WIN 7, WIN 8.x, WIN 10, WIN NT,UNIX,LINUX.... |
|
Using life
|
>1,000,000 times
|
|
Power built-in
|
Power input(AC)
|
~100V-230V
|
|
Using life
|
MTBF>60,000 hours 25 °C
|
|
House color
|
black
|
|
House
|
Metal
|
|
Gross weight
|
17 KGS
|
|
Dimensions
|
462.6*450*44.5 mm
|
|
Rack installation depth
|
400 mm ~ 800 mm (adjustable)
|
|
Operating/storage Temp
|
0 ~ 50/-20 ~ 60°C
|
|
PC ports
|
1
|
|
VGA resolution (highest)
|
1280x1024 native (max. 1920*1080 60Hz)
|
Note:
For Business user and Industrial user. only.
Not suitable for consumer user.
No sale to consumer customer.
