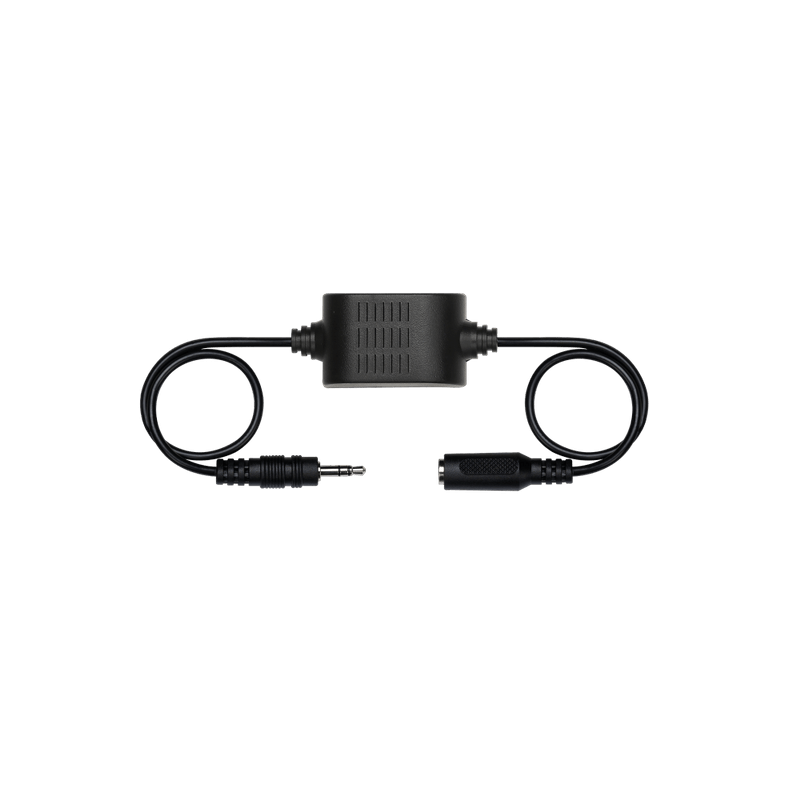

Stereo Audio Isolator 3,5mm Jack (m/f) SC&T AE02GL
AE02GL successfully removes countless ground loop issues.
Easily install it between a 3.5mm phone jack and an audio output device like microphones, and speakers to filter out the interference for CCTV/ audiovisual systems.
Low Insertion Loss
Insertion loss is the amount of energy that a signal loses as it travels along with a cable link. low insertion loss allows the signal to remain its performance with a slight reduction.
Time-saving Installation
It's hard to identify the real problem causing the interference in a professional and complicated A/V environment but AE02GL can effectively solve the problem by plug and play.
Specification
ITEM NO.
|
AE02GL
|
|
Support
|
|
Audio Bandwidth
|
20 to 20KHz (-3dB)
|
|
Frequency
|
@Ref 600 Ohm: @300Hz= ±0.35dB, @4Khz= ±0.35dB
|
|
Insertion Loss
|
@1KHZ, 0dBm
|
|
Return Loss
|
@Ref 600Ohm:: @300HZ= 20dB Min., @1Khz-22dB Min., @4Khz= 22dB Min.
|
|
Turn Ratio
|
@18Khz, 1Vrms
|
|
Audio Input Impedance
|
600 Ω,12.3 Vrms
|
|
Ports & Interfaces
|
|
Audio Input/ Output
|
1 x 3.5mm Phone Jack, 1 x 3.5mm Phone Plug
|
|
Ambient Temperature
|
|
Operation
|
0 to 55℃
|
|
Storage
|
-20 to 85℃
|
|
Humidity
|
Up to 95%
|
|
Physical Characteristics
|
|
Dimensions
|
552 x 29 x 25mm
|
|
Weight
|
50g
|
