UNICLASS PRIMA-T16 USB/PS2/VGA 16-port Prima-T16 KVM-Switch with OSD
The Prima 4/ 8/ 16 is a 4/8/16-port USB PS/2 Rackmount KVM Switch that is designed for computer/server management on a central console in corporate, factory as well as in campus computing environment. It provides the OSD Menu for intuitive KVM switching operations. Its cascadable feature can help upscale the server number to hundreds. The Prima KVM switches offer a dedicated controller per port to keep the mouse and keyboard alive even when the KVM switch is not powered on. Excellent video quality with minimal degradation is guaranteed even when daisy-chained up to 8 units. Perfect keyboard/mouse emulation provides high compatibility with machines and operating systems.
USB and PS/2 interface support on both Console and PC Side
The USB PS/2 Rackmount KVM Switch supports both USB interface and PS/2 interface on both console side and PC side. You can use either PS/2 or USB keyboard/mouse on the console side as well on the PC side. It is especially useful when your server room is inhabited with legacy computers with only PS/2 interfaces and also with newer computers equipped with only USB interfaces.
OSD Menu offers more intuitive and convenient control
The full-feature OSD menu function gives an intuitive menu-driven operation most users will find indispensable for a truly convenient KVM switching experience. The Prima 16 provides features such as Auto Logout, Password Protection and Firmware upgrade, etc.
Port-capacity scalable up to hundreds of computers via daisy-chaining multiple KVM Switch units
A maximum of 8 units (Prima 4/ Prima 8 / Prima 16) can be daisy-chained to provide a total maximum port capacity of up to 128 PCs (8 x 16).
Robust and Reliable for Corporate Server Room / Industrial Floor
The Prima 16 USB PS/2 Rackmount KVM Switch is robust and durable in metal enclosure and provides better shielding against electromagnetic interference commonly seen in lab or factory environments. The metal case offers a sturdy protection needed to withstand accidental impact.
Remote IP access enabled by daisy-chaining with KLE or Prima IP KVM switch
The Prima KVM switch can be daisy-chained with KLE or Prima IP KVM switch to provide remote IP access to users across Intranet/Internet.
Firmware upgradable
This Prima KVM Switch allows its user to upgrade firmware contents whenever is needed to enhance compatibility or functionality. Thus, your investment on this KVM Switch is further ensured and its life-time value just maximized!
Features
- 4/8/16-port 19” Cascadable Rackmount USB PS/2 KVM switch with OSD
- Cascadable up to 8 units using daisy-chain cable
- Port capacity scalable up to 128 PCs (8 x Prima 16)
- USB and PS/2 interface support on both console and PC side
- Support Microsoft and Logitech standard 5-key mouse and compatibles
- Computer selection and operation using front-panel push buttons , keyboard hotkeys and OSD Menu
- Support for DOS, Windows 95/98/SE/ME/2000/XP, Linux, MacOS, etc.
- Numerical LED display and LED indicators for easy bank/port status monitoring
- Perfect keyboard/mouse emulation to ensure compatibility t to all machines and operating systems
- One controller per to keep alive even when the KVM is not powered on
- Enhanced PS/2 mouse reset hotkeys for non-PnP OS such as Win NT 4.0 and Linux
- Plug-and-Play for PnP OS, no Windows driver software needed
- Buzzer sound for hotkey and port switching confirmation
- Autoscan period programmable 5 ~ 95 through OSD Menu option
- Password protection
- Auto-logout timeout support
- High VGA resolution 2048 x 1536
- Firmware upgradable
Specifications
Model No.
|
PRIMA 4/8/16
|
PC Port
|
4 / 8 / 16
|
Console Port
|
1
|
Daisy-chain port
|
2 x ( 1 x In; 1 x out)
|
Daisy-chain level
|
8 units (with any Prima KVM switch)
|
Max. PC Connections
|
128 PCs (8 x Prima 16)
|

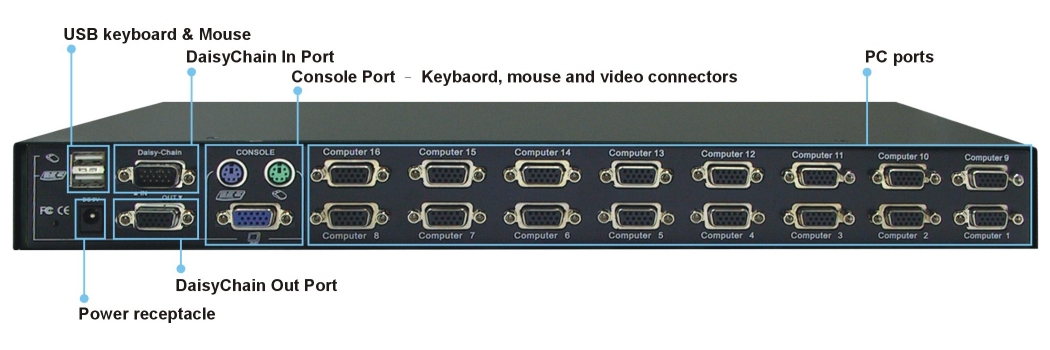

PC Port Connectors
|
4/8/16 x HDB 15-pin Female (VGA, USB and PS/2 interface integrated)
|
Console Port Connectors
|
2 x USB Type A
1 x PS/2 Keyboard 6-pin Mini Din female
1 x PS/2 Mouse 6 pin Mini Din female
1x VGA HDB 15 pin female
|
OSD
|
Yes
|
PC selection
|
Push buttons / Hotkeys / OSD Menu
|
PC port LED s
|
4/8/16 x Green LED / Green LED ; Numerical x 1
|
Scan delay time
|
5 ~ 99 sec. programmable through OSD Menu option
|
Keyboard/Mouse emulation
|
|
VGA Resolution
|
2048 x 1536
|
Remote IP access
|
Can be enabled (require KLE or a Prima IP KVM switch)
|
Power
|
PS/2 and USB interface power
|
Operation Temperature
|
0 ~ 40°C
|
Storage Temperature
|
- 20 ~ 60°C
|
Humidity
|
0~90% RH, non-condensing
|
Size
|
Standard 19” rack mount / 1U
|
Housing
|
Metal enclosure
|
Dimension (L x W x H)
|
410 x 165 x 44.5 mm
|
Power Adapter
|
(Optional) DC 9V 1A
|
Weight
|
2200 g
|
Safety / Emission
|
FCC, CE
|
