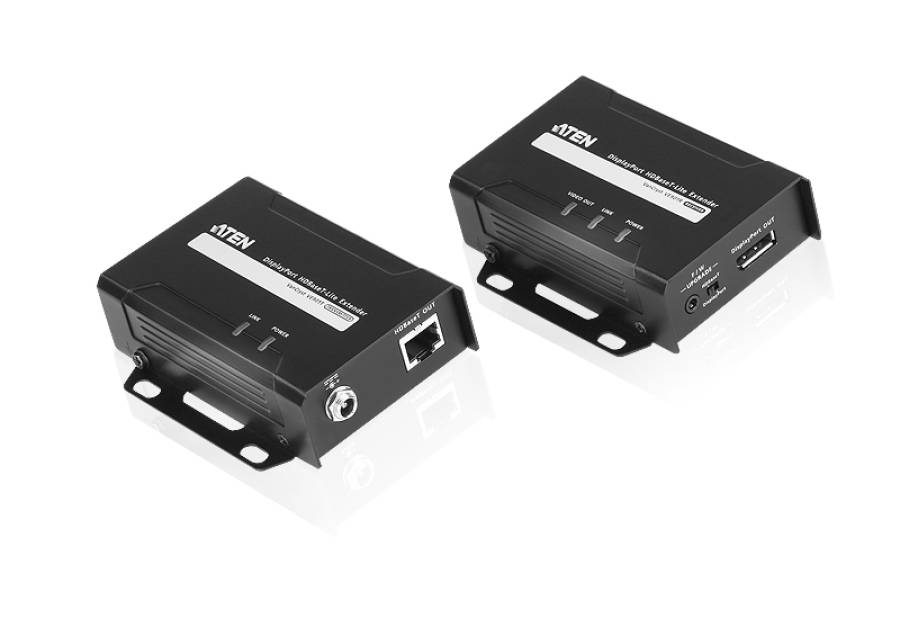

Aten VE901R 4K DisplayPort HDBaseT-Lite Receiver (4K - 40m, 1080p - 60m)
The VE901 DisplayPort HDBaseT-Lite Extender is able to extend a DisplayPort display up to 70 m using a Cat 6 / 6a cable. This combination of ATEN and HDBaseT™ technology supports sharing 4K media up to 40 m away, offering a simple, adaptable, and cost-effective solution for any professional A/V installation.
The VE901 DisplayPort HDBaseT-Lite Extender is the perfect solution for professional A/V installations that require video signal interference protection, such as in medical and military installations. With its lightweight and easy-to-mount design, and a slip-resistant DC Jack lock mechanism, the VE901 can be installed in a multitude of locations while ensuring peace of mind with its reliability.
Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a);
1080p@60m (Cat 5e/6) / 70m (Cat 6a)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)

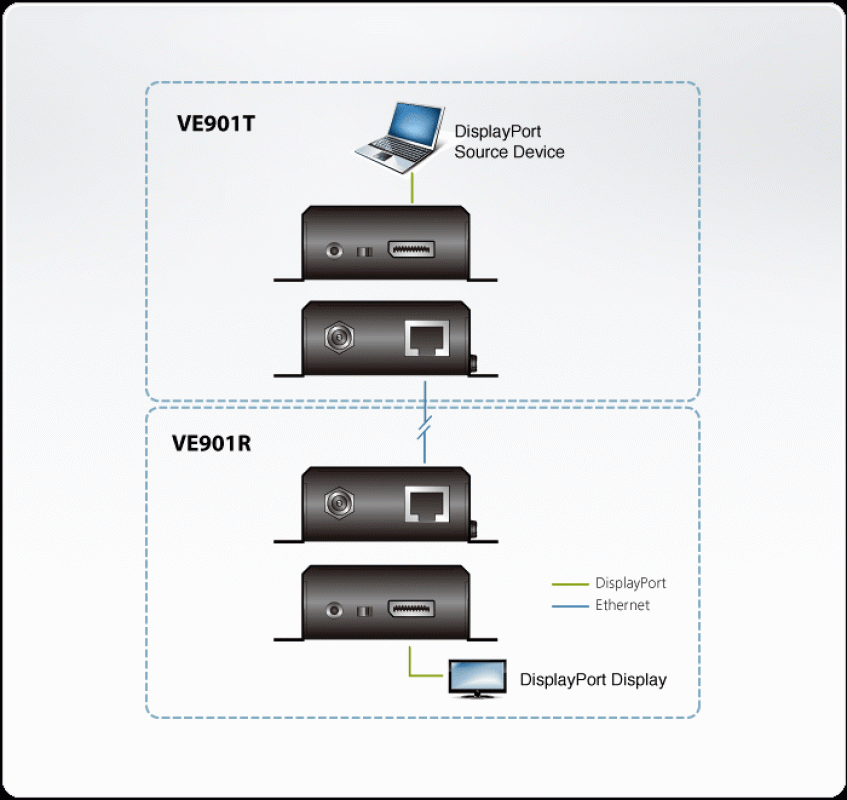

- HDBaseT Connectivity – extends a DisplayPort connection up to 70 meters via a single Cat 6/6a cable
- HDBaseT Anti-Jamming – resists signal interference during video transmission using HDBaseT technology
- Featuring 3.3V / 500mA power output for powering auxiliary devices
- Rack-Mountable
Package Contents
- 1x VE901R DisplayPort HDBaseT-Lite Receiver
- 1x Power Adapter
- 1x User Instruction
| Video Output |
| Interfaces |
1 x DisplayPort Female (Black) |
| Impedance |
100 Ώ |
| Video |
| Max. Data Rate |
10.2Gbps (3.4Gbps per lane) |
| Max. Pixel Clock |
340 MHz |
| Compliance |
DisplayPort (Deep Color, 4K)
HDCP Compatible |
| Max. Resolutions / Distance |
Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a);
1080p@60m (Cat 5e/6) / 70m (Cat 6a)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
| Audio |
| Input |
N/A |
| Output |
1 x DisplayPort Female (Black) |
| Power |
| Connectors |
1 x DC Jack (Black) with locking |
| Consumption |
DC 5V, 7.95W |
| Environmental |
| Operating Temperature |
0-40°C |
| Storage Temperature |
-20 - 60°C |
| Humidity |
0 - 80% RH, Non-Condensing |
| Physical Properties |
| Housing |
Metal |
| Weight |
0.27 kg ( 0.59 lb ) |
| Dimensions (L x W x H) |
10.06 x 8.70 x 3.00 cm
(3.96 x 3.43 x 1.18 in.) |
