16-Port IP-KVM LCD-Console with 17" LCD, Aten CL5716iM

16-Port IP-KVM LCD-Console with 17" LCD, Aten CL5716iM over IP Switch with Daisy-Chain Port and USB Peripheral Support.

The CL5716I Slideaway™ LCD KVM Switch is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5716I can control up to 8 computers. As many as 15 additional KVM switches can be daisychained to the CL5716I, so that up to 256 computers can all be controlled from a single KVM console.

The CL5716I LCD KVM Switch is an IP-based KVM control unit that allows both local and remote operators to monitor and access multiple computers. Remote users access the switches over the Internet by means of a web browser using TCP/IP for its remote communications protocol. The CL5716I supports up to 32 concurrent user logins for a single-bus computer access. A built-in feature that resembles an Internet chat program - the Message Board - lets them communicate with each other. The ability to exchange information in real time allows them to cooperatively manage the installation in a smooth and efficient manner.

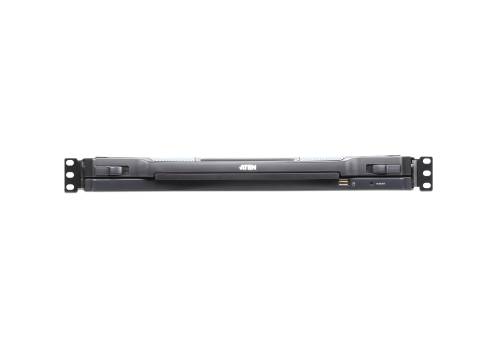

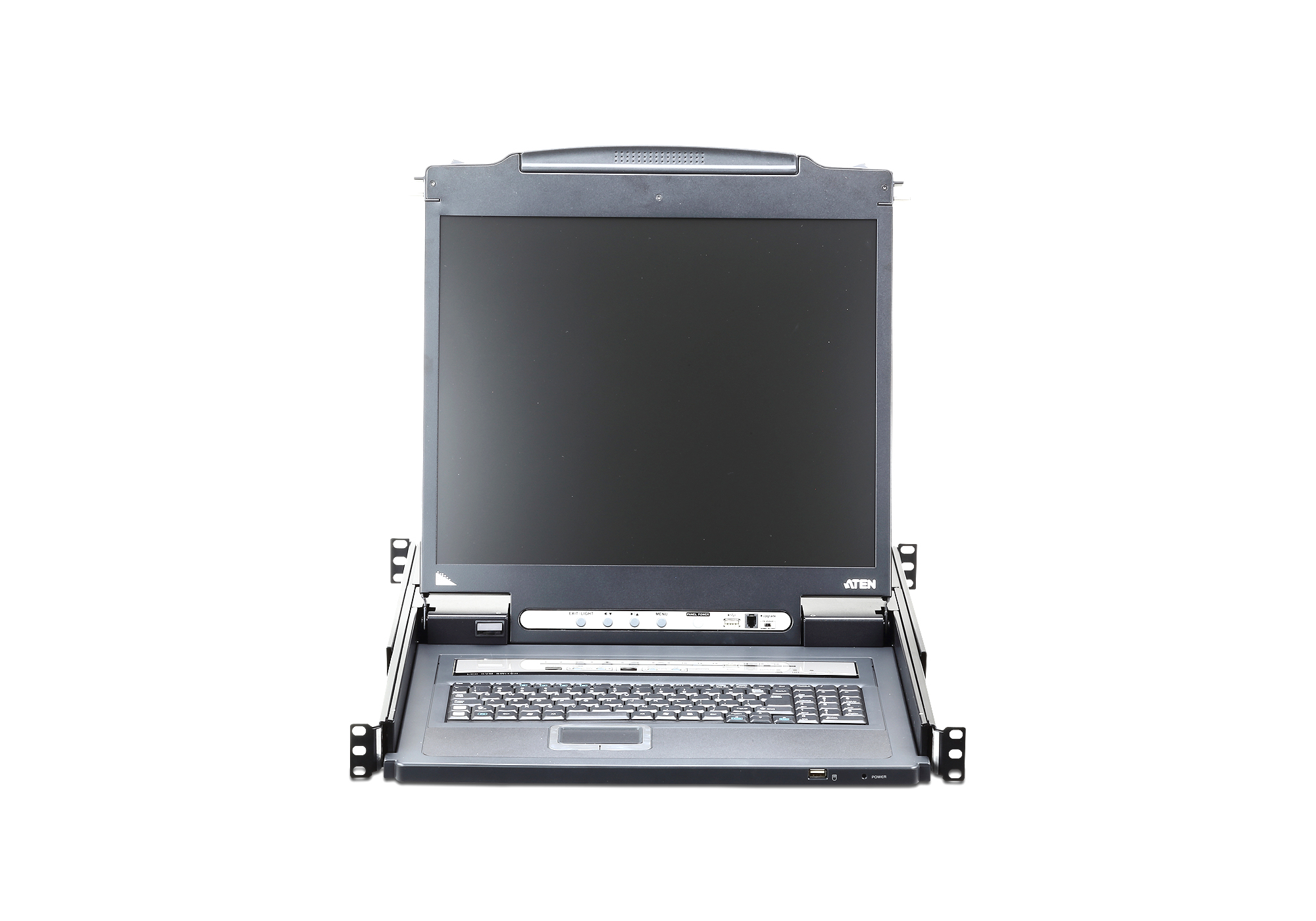

The CL5716I offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17" or 19" LED-backlit LCD monitor, and touchpad in a 1U rack-mountable sliding housing. In addition, since the CL5716I is built on a modular design, the KVM section can be detached from the switch section for convenient maintenance and repair.

Among CL5716I's other outstanding features, the Panel Array Mode provides the ability to monitor the video output of the servers on the installation; while the Mouse DynaSync™ feature automatically synchronizes the local and remote mouse pointer movements for perfect alignment regardless of what the mouse acceleration settings on the server are.

The CL5716I supports the highest security protocols, such as TLS 1.2 encryption for the browser, and RC4 128 bit encryption for secure keyboard, mouse, and video data transmission. For easier and more efficient user management integration, the CL5716I also supports authentication and authorization via 3rd party authorized servers, such as RADIUS, LDAP, LDAPS, and MS Active Directory.

Hardware

• Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
• Integrated KVM console with 17" or 19" LED-backlit LCD monitor in a Slideaway™ housing
• Space saving technology - up to two consoles (one bus) control up to 8 computers
• Daisy chain up to 15 additional units – control up to 128 computers from a single console (With compatible KVM Switches: ACS1208A, ACS1216A, CS1708A,CS1716A)
• Extra console port – manage computers from an external console (VGA monitor, USB or PS/2 keyboard and mouse)
• Superior video quality - up to 1280 x 1024 @75 Hz; DDC2B for the local console; up to 1920 x 1200 @ 60Hz / 24 bit color depth for remote sessions
• Dual Interface - supports computers and console with PS/2 or USB keyboards and mice
• LCD module USB port allows connected computers to access USB peripherals*
• Auto-sensing of station's position on daisy chained installations; no need for manual dip switch setting; front panel LED indicates station's position
• Hot pluggable - add or remove computers without having to power down the switch
• Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere
• Supports multimedia USB keyboards for Windows, Mac and Sun
• Supports external USB mouse
• Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
• Rack mountable in a 1U system rack
• LCD module rotates up to 115 degrees for a more comfortable viewing angle

* The USB peripheral function only works with USB cable set connections. It will not work with PS/2 cable set connections.

Management

• Convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus
• Up to 32 concurrent logins
• Multilanguage web UI support featuring a tree-structured local and remote OSD
• Adjustable video quality for flexible adaptation to diverse network environments
• Auto Scan mode enables continuous monitoring of user-selected computers
• Broadcast mode: operations from the keyboard can be simultaneously performed on all selected computers on the installation (software installation, system-wide shutdown, etc.)
• Firmware upgrades to all the daisy-chained KVM switches (CS1708A, CS1716A) at the same time via the daisy-chain cable
• Integration with CC2000 Centralized Management Software
• Backup and restore configuration and user account settings
• Event logging
• IPv6 capable

Ease-to-Use Interface

• Browser-based and AP GUIs, together with a menu-driven OSD for the local console, provide a powerful, intuitive, user-friendly, multi-language interface to minimize user training time and increase productivity
• Multiplatform support - Windows, Linux, Mac, and Sun
• Multi-browser support (IE, Mozilla, Firefox, Safari, Opera, Netscape)
• Panel array mode enables user to monitor multiple servers from single screen at the same time - each selected server's video output appears in a separate panel - users can easily select the number of panels to view
• Windows client and Java client software support; Java client works with all operating systems
• Beeper on/off via hotkey and OSD
• Keyboard Language support: English (US), English (UK), French, German, German (Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese

Advanced Security

• Secure keyboard/mouse/video transmission via RC4 128 bit encryption
• Supports TLS 1.2 data encryption and RSA 2048 bit certificates for secure user logins from a browser
• Two level password security - only authorized users can view and control computers; up to 64 user accounts with separate profiles for each
• External (Remote) authentication support: RADIUS, LDAP, LDAPS, MS Active Directory
• Support for IP/MAC Filter
• Local and remote access logged and authenticated

Virtual Remote Desktop

• Resizable remote desktop window
• Message board allows logged-in users to communicate with each other, and allows a user to take exclusive control of the KVM functions
• Mouse DynaSync™
• On-screen keyboard with multi-language support
• BIOS-level access

Package Contents
1x CL5716iM LCD KVM over IP Switch with standard Rack Mount Kit
2x Custom KVM Cables (VGA, USB; 1.8 m/6 ft)
1x Custom Console Cable (VGA, USB, PS/2; 27 cm/0.88 ft)
1x Firmware Upgrade Cable
1x Power Cord
1x User Instructions

Specifications:

Function	CL5716IM	CL5716IN
Computer Connections
Direct	16	16
Maximum	256 (via Daisy-chain)	256 (via Daisy-chain)
Port Selection	OSD, Hotkey, Pushbuttons	OSD, Hotkey, Pushbuttons
Connectors
External Console Ports	1 x SPHD-18 Male (Yellow)	1 x SPHD-18 Male (Yellow)
External Mouse Port	1 x USB Type-A Female	1 x USB Type-A Female
KVM Ports	16 x SPHD-17 Female (Yellow)	16 x SPHD-17 Female (Yellow)
Daisy Chain Ports	1 x DB-25 Male (Black)	1 x DB-25 Male (Black)
Firmware Upgrade	1 x RJ-11 Female	1 x RJ-11 Female
Power	1 x 3-prong AC Socket	1 x 3-prong AC Socket
USB Port	1 x USB Type A Female	1 x USB Type A Female
LAN Ports	1 x RJ-45 Female	1 x RJ-45 Female
Switches
Reset	1 x Semi-recessed Pushbutton	1 x Semi-recessed Pushbutton
Power	1 x Rocker Switch	1 x Rocker Switch
Firmware Upgrade	1 x Switch	1 x Switch
LCD Adjustment	4 x Pushbutton	4 x Pushbutton
LCD On/Off	1 x LED Pushbutton (Orange)	1 x LED Pushbutton (Orange)
Port Selection	2 x Pushbutton	2 x Pushbutton
Station Selection	2 x Pushbutton	2 x Pushbutton
LEDs
Port ID	2 x 7-segment LED Display (Yellow)	2 x 7-segment LED Display (Yellow)
Station ID	2 x 7-segment LED Display (Yellow)	2 x 7-segment LED Display (Yellow)
Power	1 (Dark Green)	1 (Dark Green)
Lock	1 x Num Lock (Green) 1 x Caps Lock (Green) 1 x Scroll Lock (Green)	1 x Num Lock (Green) 1 x Caps Lock (Green) 1 x Scroll Lock (Green)
Online	16 x (Orange)	16 x (Orange)
10/100 Mbps	1 (Orange/Green)	1 (Orange/Green)
Panel Spec
LCD Module	17" TFT-LCD	19" TFT-LCD
Response time	5 ms	5 ms
Viewing Angle	170° (H), 160° (V)	170° (H), 160° (V)
Pixel Pitch	0.264 mm x 0.264 mm	0.294 mm x 0.294 mm
Support Color	16.7M colors	16.7M colors
Contrast Ratio	1000:1	1000:1
Luminance	250 cd/m²	250 cd/m²
Emulation
Keyboard / Mouse	PS/2, USB	PS/2, USB
Video
Local	1280 x 1024 @75 Hz; DDC2B	1280 x 1024 @75 Hz; DDC2B
Remote	1920 x 1200 @60 Hz	1920 x 1200 @60 Hz
Scan Interval	1-255 sec.	1-255 sec.
Maximum Input Power Rating	100-240V AC, 50-60Hz, 1A	100-240 VAC, 50-60Hz, 1A
Power
Consumption	120V/17W; 230V/18W	120V/26W; 230V/26.8W
Environmental
Operating Temperature	0-50°C	0-50°C
Storage Temperature	-20-60°C	-20-60°C
Humidity	0-80% RH, Noncondensing	0-80% RH, Noncondensing
Physical Properties
Housing	Metal + Plastic	Metal + Plastic
Weight	13.61 kg ( 29.98 lb )	13.67 kg ( 30.11 lb )
Dimensions (L x W x H)	48.00 x 64.27 x 4.40 cm (18.9 x 25.3 x 1.73 in.)	48.00 x 68.92 x 4.40 cm (18.9 x 27.13 x 1.73 in.)
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
