2-Port 8K 60Hz 3-Monitor DisplayPort KVM-Switch with USB 3.0, incl. 1.5m PC-Cable, AV Access iDock-D23 (8KSW21DP-TM)
Multitask Easily with Triple Screens
● New Triple Monitor Design: Built with 6x DisplayPort input ports (supports MST, 3 in 1 group) and 3x DisplayPort output ports. Switch easily between your workstation and gaming PC, and view 3 monitor screens simultaneously.
● 12-in-1 Docking Station: Your two PCs can share abundant peripheral ports like 3x USB 3.0, 1x USB 2.0, 1x USB 1.1 (for keyboard hotkey), 1x USB-C, 1x 1G Ethernet, 1x 3.5mm headset, 1x SD card and 3x DP out. Build a powerful workstation with ease.
● Immersed in 8K Ultra HD: DisplayPort 2.0 & HDCP 2.3 compliant. Supports up to 8K@60Hz, and all HDR formats, like HDR10, HLG, HDR10+ and Dolby Vision.
● Ultra-High Refresh Rate: Supports 4K@165/144Hz, 3440×1440@165/144/120Hz, 2560×1440@240/165/144Hz and 1080P@240/165Hz, etc. Ideal for sports programs, action movies, high-speed racing games, etc.
● Super Fast Switching: With the automatic PC wake-up function, it only takes you 2-3 seconds to switch between your PC sources. Press the front control button, use the wired remote controller (not included) or your keyboard hotkey to switch effortlessly.
● Important Notes: For stable video input/output, it is required to use the included 6x DP 1.4a cables. If you encounter screen flickering while outputting certain video resolutions, like 8K@60Hz and 4K@165/144Hz, it is recommended to replace the cables with certified DP 2.0-compliant ones. All accessories are not sold separately. The product doesn’t support EDID emulation at present.

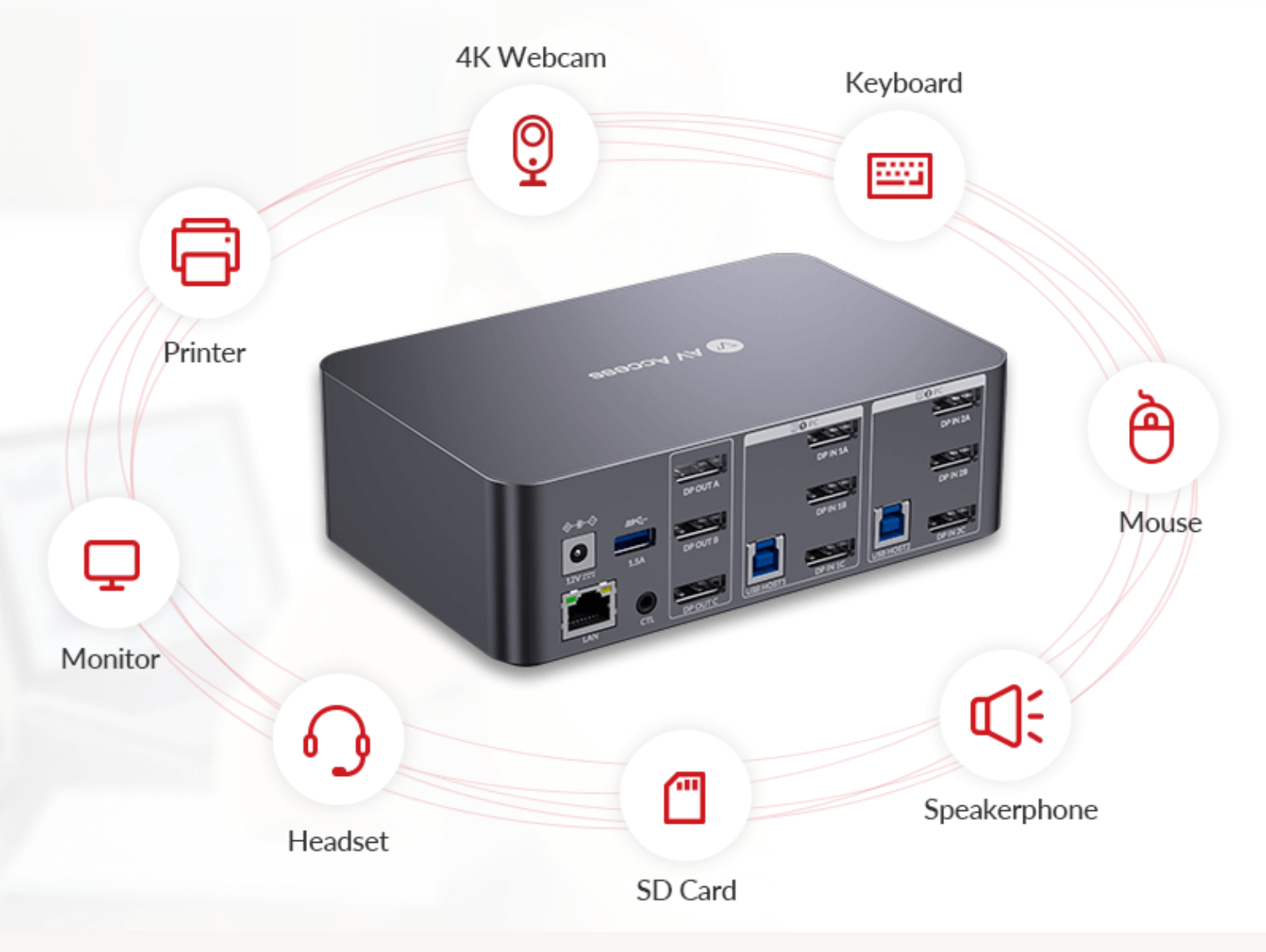

12-in-1 Powerful Docking Station
This gadget seamlessly combines a KVM switch and docking station, enabling you to create a robust home workstation. Alongside 3 monitors, it facilitates the sharing of various peripherals between 2 computers, like a mouse, keyboard, printer, scanner, SD card, headphone, etc.
|
|
|
Innovative Triple Monitor Design
Built with 6x DP input ports (supports multi stream transport, 3 in 1 group) and 3x DP output ports, iDock D23 allows you to easily switch between a workstation and gaming PC, and view 3 monitor screens simultaneously! No matter office work, gaming or learning, you can multitask easily and maximize your productivity.
Important Notes before Using:
1. When switch to group 1, the monitor connected to DP OUT A, DP OUT B and DP OUT C will output video from DP IN 1A, DP IN 1B and DP IN 1C respectively. When switch to group 2, the monitor connected to DP OUT A, DP OUT B and DP OUT C will output video from DP IN 2A, DP IN 2B and DP IN 2C respectively.
2. To ensure three-screen output, please connect all “DP in” ports of group 1 or 2 (together with the USB host) to your PC, and connect all “DP out” ports to the three monitors.
3. If you need to use the KVM switch’s DP MST function, please ensure your PC also supports DP MST.
4. This DP KVM switch doesn’t support EDID emulation at present. Please refer to 8KSW21-KVM if you need a 8K KVM switch with this function.
Immersed in Your 8K World
This new DisplayPort KVM switch is DP 2.0 and HDCP 2.3 compliant. It supports video resolution up to 8K@60Hz, offering you an immersive viewing experience. It also supports the full range of DP features, like MST, VRR, HDR10, HLG, Dolby Vision, etc.
Note:
For stable video input/output, it is required to use the included 6x DP 1.4a cables. If you encounter screen flickering while outputting certain video resolutions, like 8K@60Hz and 4K@165/144Hz, it is recommended to replace the cables with certified DP 2.0-compliant ones.
|
|
|
|
|

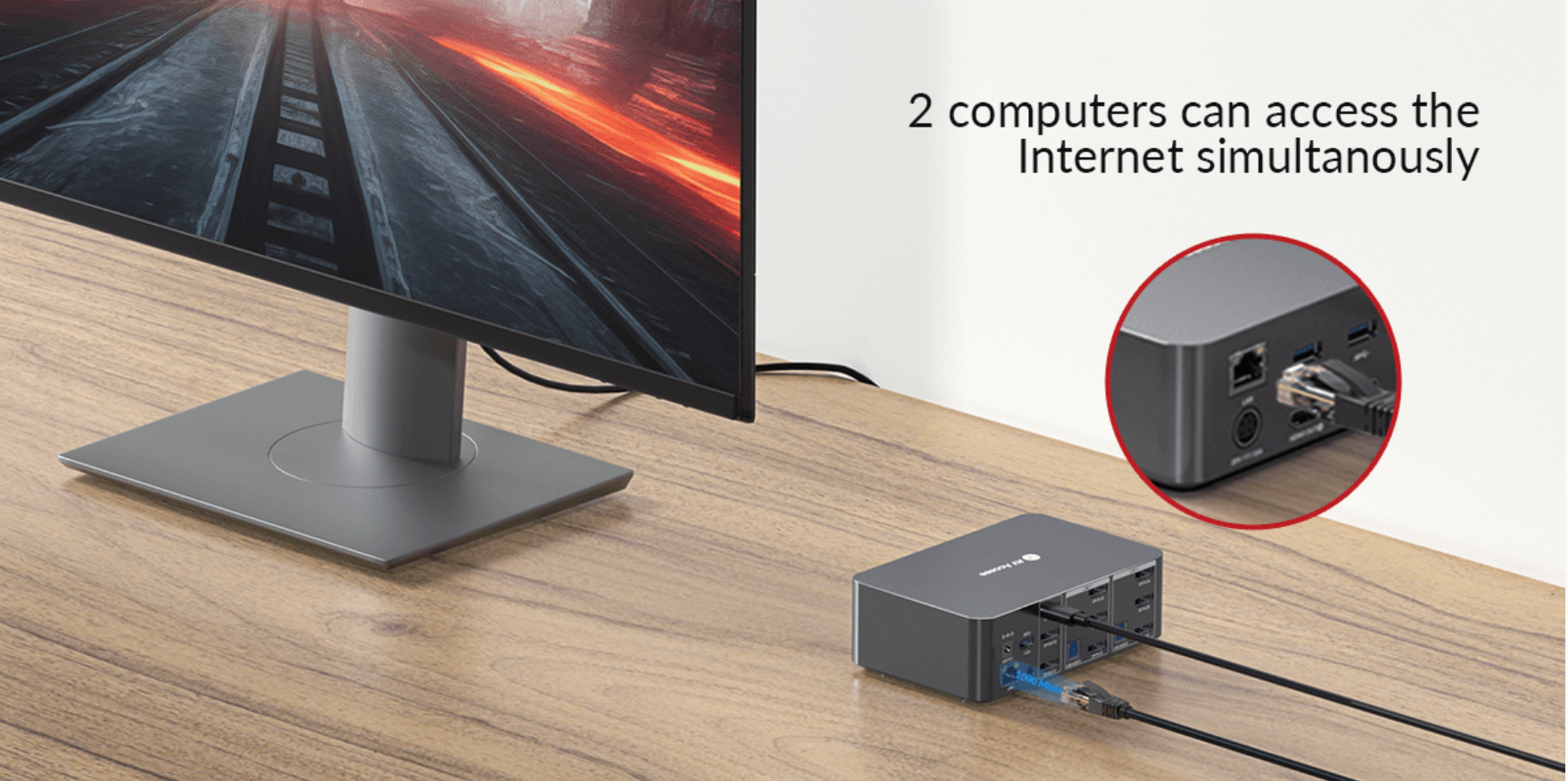

2 Computers Share 1 Ethernet Port
The iDock D23 KVM switch docking station features a reliable 1G Ethernet port, allowing simultaneous network connectivity for two PCs. Enjoy uninterrupted internet access even during switching, ensuring utmost convenience.
|
High Refresh Rates, Wonderful Gaming Experience
iDock D23 supports 4K@165/144/120hz, 3440×1440@144/120Hz, 2560×1440@165/144/120Hz, and 1080P@240/165/144/120Hz, ensuring your game sources can be effectively switched. Now it is easier than ever to obtain an unprecedentedly enjoyable gaming experience.
|
|
|
|
|
Works Perfectly with Various Keyboards
This triple monitor KVM switch boasts a high compatibility with keyboard hotkeys.
Engineered with the fully pass-through mode and newly upgraded hotkey algorithm, it can work flawlessly with various types of keyboards, like wireless keyboard with receiver, gaming keyboard, mechanical keyboard, etc.
|
3 Ways to Switch, As You Like
Apart from switching via the front panel button and keyboard hotkey, you can effortlessly switch using the wired remote controller (not included, will be released soon in another product page for purchase). Whether the device is installed under the desk or in any other hard-to-reach place, a simple click allows for quick and convenient switching.
Note:
For keyboard hotkey switching, you need to connect a keyboard to the device’s dedicated USB 1.1 port, then press “hotkey+1/2” (default hotkey: Tab) to switch to the desired source. You can also disable the function or change the hotkey. Please refer to the user manual for details.
More Amazing Features
|
|
|
Wake up Your “Sleeping” PC
With the advanced wake-up engine of this 8K KVM switch, there’s no need to manually wake up your PC by moving the mouse or typing on the keyboard when switching to it. It automatically awakens your PC, streamlining the process without any manual intervention, even when your computer is in sleep mode.
|
|

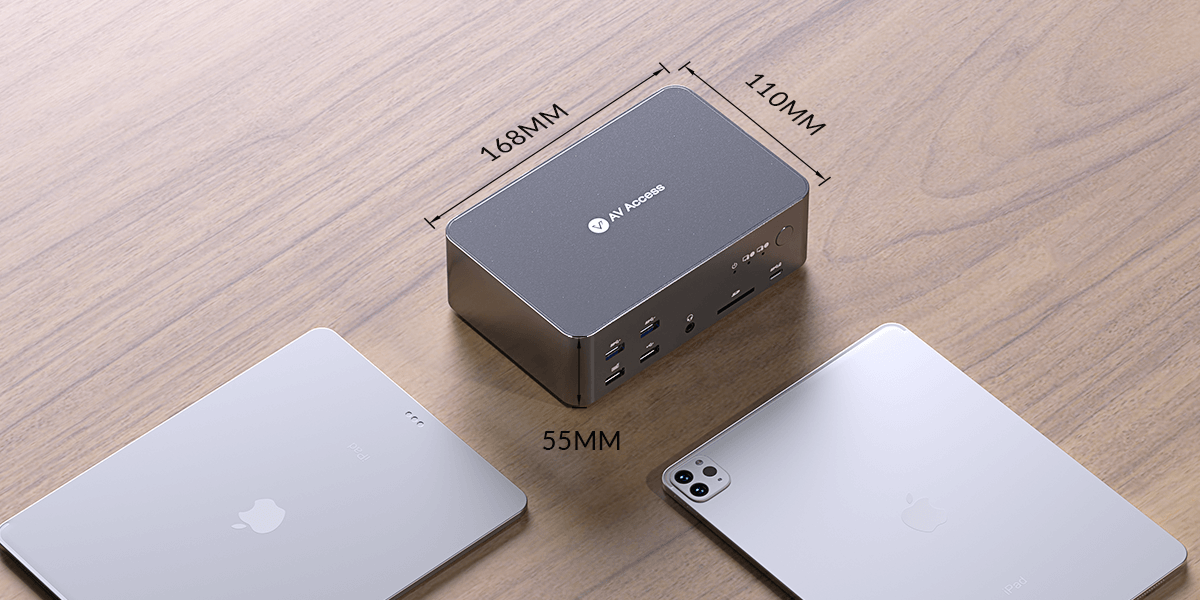

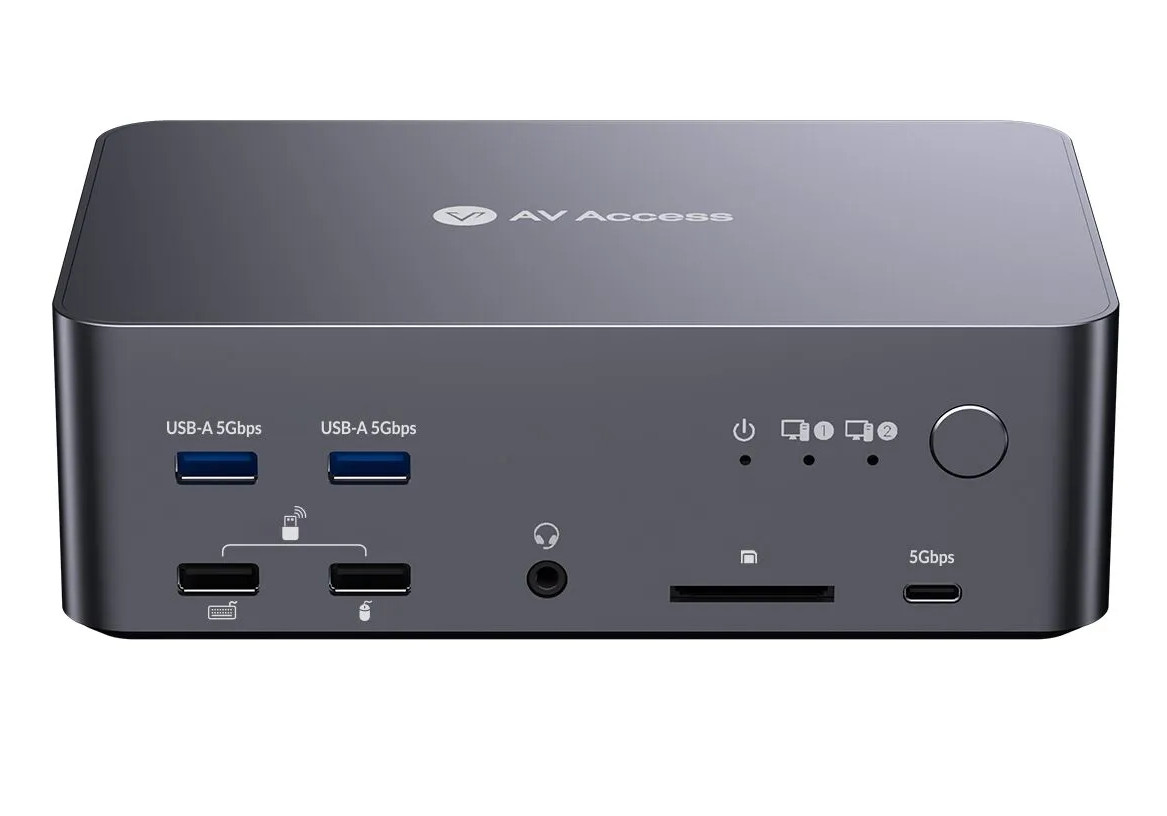

Compact and Exquisite Design
Crafted with precision CNC cutting and oxidation techniques from premium all-aluminum materials, this 8K DisplayPort KVM switch boasts a sleek and elegant design. Remarkably compact, it’s only half the size of an iPad, effortlessly enhancing the aesthetics of your home office setup.
|
Typical Applications
This innovative triple monitor KVM switch can be one of your best gadgets. Its applications are as follows:
|
|
|
Home Office
You can control 2 PCs with 3 monitors and only one set of keyboard, mouse, or other USB 3.0 devices. Whether you are a software programmer or graphic designer, iDock D23 allows you to view extra screens, boosting your productivity in office work or learning.
|
|
Gaming
Switch to your gaming PC in leisure time, and control it effortlessly with a set of keyboard, mouse or game controller. Also, connect a headphone to add external commentary in your game live broadcast. Enjoy an amazing gaming experience with high refresh rates like 1080P@240Hz.
|
In the box:
- 1x iDock D23 8K DisplayPort KVM Switch
- 1x Power Adapter (DC 12V/3A)
- 2x USB 3.0 Type-A to Type-B Cable (1.8m/6ft for each)
- 6x DP 1.4a Cable (1.5m/5ft for each)
- 1x User Manual
Downloads (external from factory):
Specification:
Technical |
Video Signal |
DP in/out supports DP 1.4a and DP 2.0 standards, up to 8K@60Hz |
Peripheral and Expansion |
USB-C x1: Up to 5Gb/s, 1.5A power output.
USB-A x5:
· Three USB 3.0 ports, up to 5Gb/s, two of them share 2A current output, and one supports 1.5A current output;
· One USB 2.0 port, up to 480Mb/s;
· One USB 1.1 port, for keyboard connection.
SDXC card: Up to 104MB/s, maximum support 2TB.
LAN: RJ-45 connector, support for 1Gb Ethernet performance.
|
Input/Output Resolution Supported |
VESA:
800 x 6006, 1024 x 7686, 1280 x 7686, 1280 x 8006, 1280 x 9606, 1280 x 10246, 1360 x 7686, 1366 x 7686, 1440 x 9006, 1600 x 9006, 1600 x 12006, 1680 x 10506, 1920 x 12006, 2048 x 11526, 2560 x 14406,7,8,9,10,
3440 x 14406,7,8,9,10
CTA:
1280x720P5,6, 1920x1080P1,2,3,4,5,6,7,8,9,10,11, 3840x2160P1,2,3,4,5,6,7,8,9,10, 4096x2160P1,2,3,4,5,6,7,8,9,10, 5120×28801,2,3,5,6, 7680×43201,2,3,6
1 = at 24 (23.98) Hz, 2 = at 25 Hz, 3 = at 30 (29.97) Hz,
4 = at 48 Hz, 5 = at 50 Hz, 6 = 60 (59.94) Hz,
7 = at 100Hz, 8 = at 120Hz, 9 = 144Hz, 10 = 165Hz,
11 = 240Hz
|
HDR Format Supported |
All HDR formats, including HDR 10, HLG, HDR 10+ and Dolby Vision |
Audio Format Supported |
DP: Fully supports audio formats in DP 1.4a specification, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X
Headset: Stereo
|
Max Data Rate |
13.5Gbps per channel |
General |
Operating Temperature |
0°C to + 45°C (32 to + 113 °F) |
Storage Temperature |
-20 to +70°C (-4 to + 158 °F) |
Humidity |
20% to 90%, non-condensing |
Power Consumption |
31.25W (max) |
Device Dimensions
(W x H x D)
|
168mm x 55mm x 110mm/ 6.61’’ x 2.17’’ x 4.33’’ |
Product Weight |
0.75kg/1.65lbs |
Common FAQs
What is a triple monitor KVM switch?
A triple monitor KVM switch is a device that allows users to connect and control multiple computers with three monitors through a single keyboard, video, and mouse setup. It enables seamless switching between the connected computers and extends the desktop across all three monitors.
What is a DisplayPort KVM switch?
A DisplayPort KVM switch is a device that enables users to connect and control multiple computers with DisplayPort connections using a single keyboard, video, and mouse setup. It allows for easy switching between the connected computers and provides high-quality video and audio transmission.
What is DisplayPort MST?
DisplayPort MST (Multi-Stream Transport) is a feature that allows a DisplayPort connection to support multiple displays from a single DisplayPort output. This technology enables daisy-chaining monitors together, so multiple monitors can be connected in a series using a single DisplayPort output on the computer.
Is DisplayPort better than HDMI?
DisplayPort and HDMI are both popular video and audio transmission standards.
DisplayPort is generally considered to be better than HDMI in terms of its ability to support higher resolutions and refresh rates, as well as its support for multi-monitor setups, daisy-chaining, and adaptive sync technologies.
However, the choice between DisplayPort and HDMI depends on the specific requirements of the devices being connected and the capabilities of the source and display devices.
Where can I use this triple monitor KVM switch?
This 8K triple monitor DisplayPort KVM switch is ideal for gaming and home office. You can effortlessly control 2 PCs with 3 monitors, and one set of keyboard, mouse and other USB peripherals.
What to do if the video on screen is flickering or unstable?
For stable video input/output, it is required to use the included 6x DP 1.4a cables. If you encounter screen flickering while outputting certain video resolutions, like 8K@60Hz and 4K@165/144Hz, it is recommended to replace the cables with certified DP 2.0-compliant ones.
What to do if wireless mouse and keyboard are not responsive?
USB-IF has confirmed that USB 3.0 will interfere with the 2.4G dongle receivers used by wireless mouse and keyboards. You can check whether a USB 3.0 device is connected next to the wireless dongle accessory. Please connect the USB 3.0 to an interface far away from the wireless dongle, for example, connect wireless dongle and USB 3.0 devices to both sides of the device.
