8-Port HDMI KVM-Switch 4K60Hz USB 2.0 Audio with Hotkey Control, Uniclass RH-1080A

8-Port HDMI KVM-Switch 4K60Hz USB 2.0 Audio with Hotkey Control, Uniclass RH-1080A

The RH-1080A/RH-1160A are 8-port/16-port Rack-mountable HDMI KVM Switches with the HDMI 4K at 60Hz video interface, audio, USB 2.0 hub, Hotkey control. These unique KVM Switches simplified the management of multiple multimedia computers with the HDMI 2.0 video interface.
Users can control 8/16 computers using only one keyboard, one mouse, one monitor and a set of speakers/headphones.
The RH-1080A/RH-1160A support multimedia keyboard and mouse. Multi-platform support such as PC and Mac. is also available. It features the specification of HDMI 2.0, not only a popular display interface of consumer electronics but also the increased bandwidth, compared with the previous versions of HDMI 1.4.
For even more convenience, there are USB 2.0 hub for high-speed USB device sharing. We also offer five hotkey preceding sequence keys for users' free configuration on the hotkey preceding sequence key other than two <ScrLk>.


• 8-port Rack-mountable HDMI 2.0 KVM Switch w/ Audio, USB 2.0 Hub, Hotkey control
• Source to End HDMI video interface
• EDID emulation and permanent monitor spoofing.
• Unique HDMI/Audio/USB-Hub interface for multimedia needs
• Includes Rack Mount Kit for easy installation into server rack cabinet
• 2 extra USB device ports for high-speed USB device sharing
• Independent peripheral switching configurable by hotkeys
• Simultaneous/independent switching of PC/USB hub/audio port selection
• Supports digital video resolution up to 3840 x 2160 4K@60Hz
• Supports Windows, Linux and Mac OS
• Multi-platform support PC and Macintosh
• Status LED display for easy port status monitoring
• Buzzer sound for port switching confirmation
• Metal enclosure for best shielding and protection
• Firmware upgradable via USB port
• HDMI 2.0 / HDMI 1.4 Specification compliant
• HDMI 2.0 technology supports High Quality Digital Video

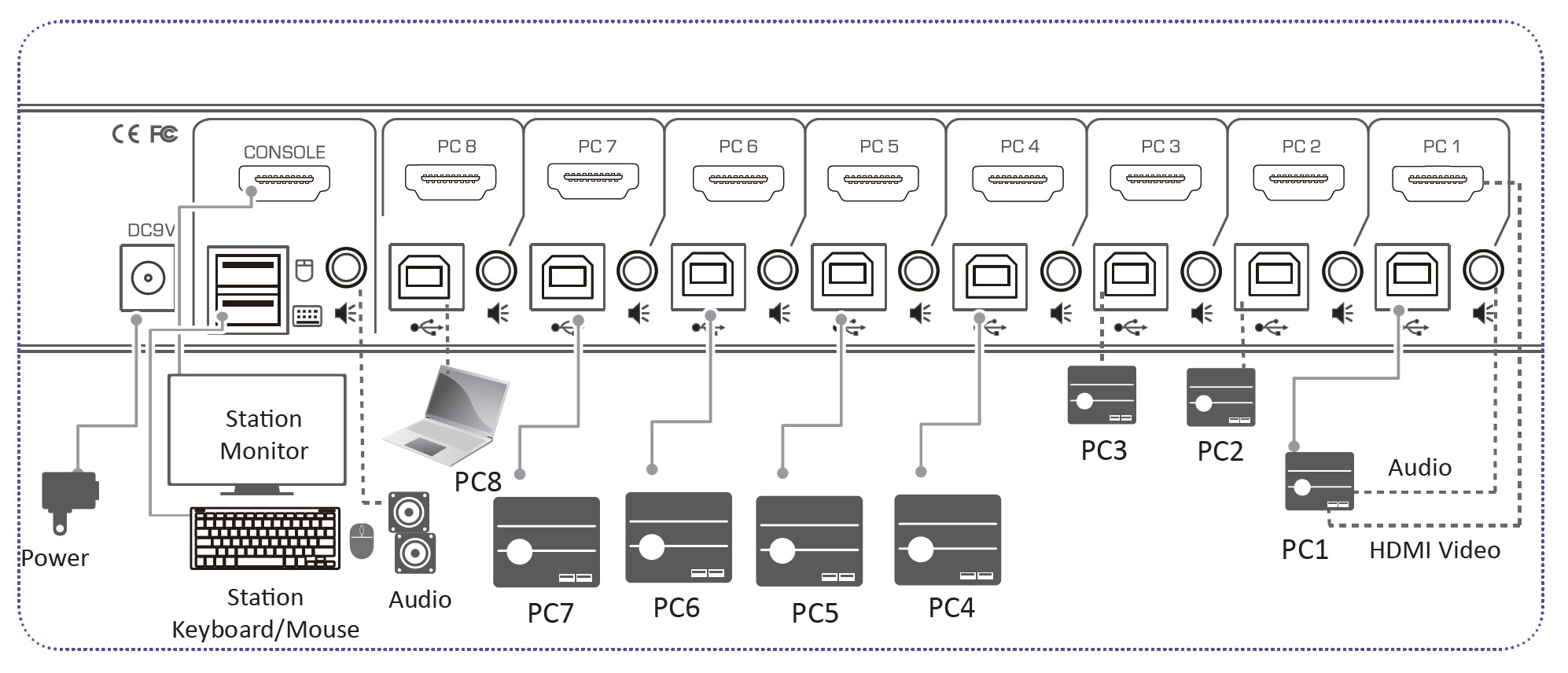

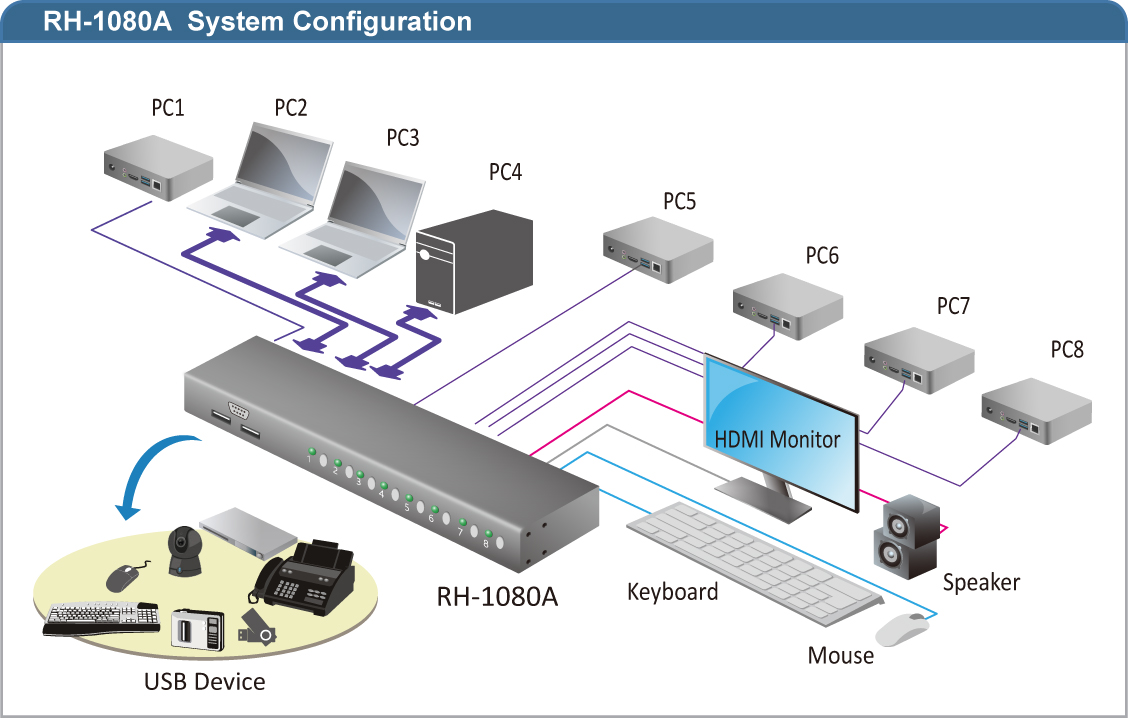

Connection Diagram:



Scope of delivery:

8-Port HDMI KVM-Switch x 1
Power adapter x 1
19" Rackmount Brackets x 1
Manual (QIC) x 1

Specifications:


Model No.	RH-1080A
PC Ports	8
Console Ports	1
Console Connections	1 x HDMI female 2 x Keyboard/Mouse-Typ/A female 2 x USB 2.0 Type/A female (front) 1 x 3.5 mm Audio female
PC Connections	8 x HDMI female 8 x USB 2.0 Typ/B female 8 x 3.5 mm speaker female
Max. Server Connections	8
Buttons	8
PC-Auswahl über	8 x Buttons direct Hotkey
PC Port LED	8 x
max.Video Resolution	HDMI 2.0 = up to 3840 x 2160 4K 60Hz 4:4:4 digital
Tastatur/Maus-Emulation	yes (HID with USB 1.1)
Port Beeper	on/off possible
Autoscan	5 - 60 sec.
Power	9V / 2A DC 5mm female
Bauart	19" / 1HE
Dimensions (W x D x H)	300 x 164 x 44 mm
Weight	1530 g
Box	Metal
Operating Temperature	0 - 40°C
Storage Temperature	-20 - 60°C
Humidity Limits	0-90% RH, Non-Condensing
Prüfzeichen	FCC, CE

Technical note:
You can adapt from DP on the PC to HDMI to the KVM switch.
Please use adapter or adapter cable with 4K60Hz chipset.  You can adapt from/to HDMI with 1080p (1920x1080).
