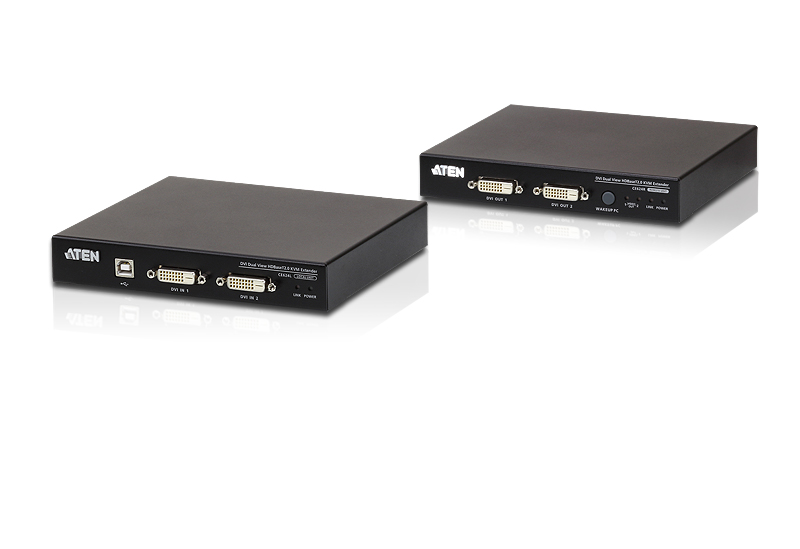

Aten CE624 USB DVI Dual-Display HDBaseT™ 2.0 KVM Extender (1920 x 1200 up to 100 m)

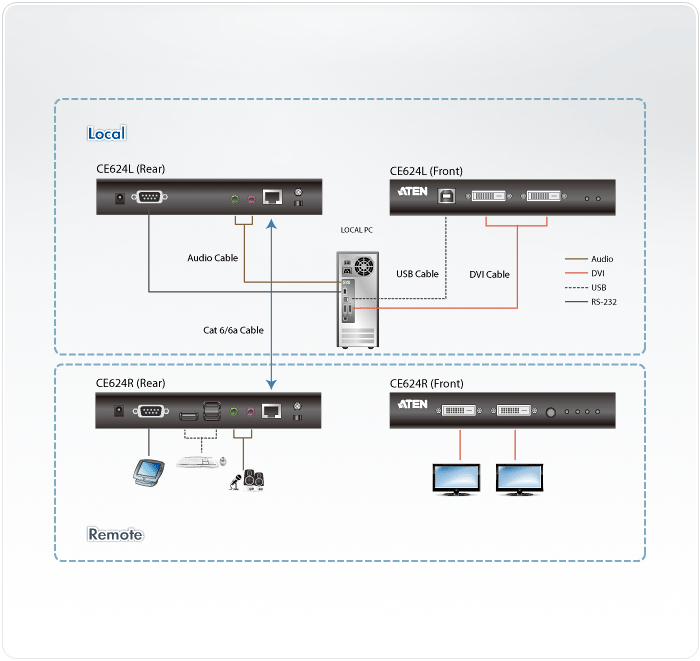

The ATEN CE624 USB DVI Dual View HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to provide the most reliable transmission of video, audio, USB and RS-232 signals available on the market. The CE624 delivers high-quality DVI Dual View video, PCM 2-channel digital audio, USB 2.0 and RS-232 signals up to 100 meters from the source computer using a single Cat6/6a cable. With a simple cable installation supporting various signals, the CE624 is ideal for applications where convenient remote access is required – in places such as transportation control centers, medical facilities, industrial warehouses and extended workstations.
- Allows DVI Dual View access to a computer and KVM control from a remote console
- HDBaseT™ 2.0 connectivity technology
• Extends video, audio, USB and RS-232 signals via a single Cat6/6a cable
• EDID Buffer for smooth power-up and the highest quality display
• Enhanced bit error detection and correction to resist signal interference during high-quality video transmissions
- Long distance superior video quality
• HDBaseT™ Standard mode up to 1920 x 1200 @ 100 m
• HDBaseT™ Long Reach mode up to 1920 x 1080 @ 150 m
- Long Reach mode switch - switches between HDBaseT™ Standard and Long Reach modes in a snap
- Integrated USB 2.0 ports - ensuring fast transmission speeds for keyboard, mouse and peripherals
- Supports 2-channel PCM digital audio - ensuring high quality audio transmissions
- Supports PC Wakeup function via pushbutton or hotkey
- Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
- HDCP 2.2 compatible
Package Contents
- 1x CE624L USB DVI Dual View HDBaseT 2.0 KVM Extender (Local Unit)
- 1x CE624R USB DVI Dual View HDBaseT 2.0 KVM Extender (Remote Unit)
- 2x DVI-D Cables (1.8m)
- 1x Pink Audio Jack Cable Sets (1.8m)
- 1x Green Audio Jack Cable Sets (1.8m)
- 1x USB Cable (1.8m)
- 2x Power Adapters
- 8x Foot Pads
- 2x Mounting Kits
- 1x User Instructions

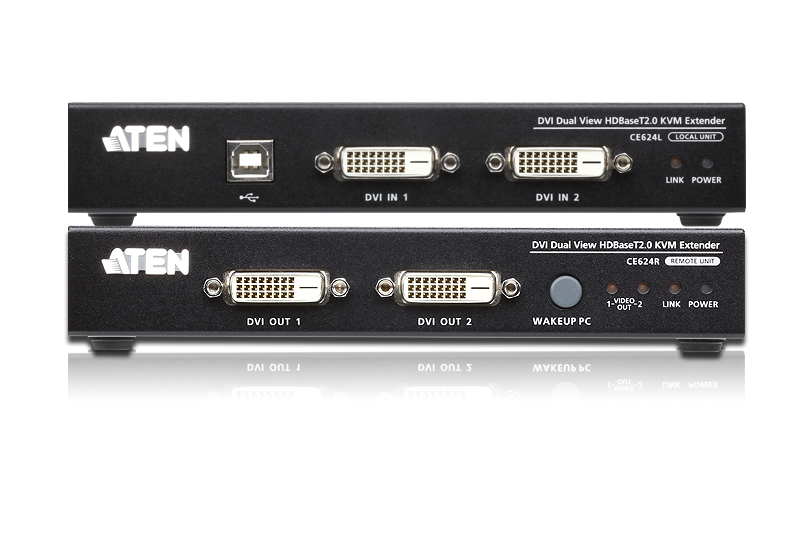

| Function |
CE624L |
CE624R |
| Anschlüsse |
| Konsolenports |
Nicht verfügbar |
2 x DVI-D-Buchse (Weiß)
3 x USB-Typ-A-Buchse (Weiß)
1 x Mini-Stereobuchse (Grün)
1 x Mini-Stereobuchse (Rosa) |
| KVM-Ports |
2 x DVI-D-Buchse (Weiß)
1 x USB-Typ-B-Buchse (Weiß)
1 x Mini-Stereobuchse (Grün)
1 x Mini-Stereobuchse (Rosa) |
Nicht verfügbar |
| RS-232 |
1 x DB-9-Buchse (Schwarz) |
1 x DB-9-Stecker (Schwarz) |
| Stromversorgung |
1 x Gleichspannungsanschluss mit Sperre |
1 x Gleichspannungsanschluss mit Sperre |
| Sub / Haupt |
1 x RJ-45 Buchse (Schwarz) |
1 x RJ-45 Buchse (Schwarz) |
| LEDs |
| Verbindung |
1 (Grün) |
1 (Grün) |
| Stromversorgung |
1 (Orange) |
1 (Orange) |
| Videoausgang |
Nicht verfügbar |
2 (Orange) |
| Schalter |
| Lange Reichweite Modus Schalter |
1 x Schiebeschalter |
1 x Schiebeschalter |
| Firmware-Aktualisierung |
1 x Schiebeschalter |
1 x Schiebeschalter |
| Drucktasten |
| Wecktaste |
Nicht verfügbar |
1 x Drucktaste |
| Video |
Bis zu 1600x1200 & 1920x1200 bei 90 m (Cat 5e) / 100 m (Cat 6/6a)
1080P bei 100 m |
Bis zu 1600x1200 & 1920x1200 bei 90 m (Cat 5e) / 100 m (Cat 6/6a)
1080P bei 100 m |
| Stromverbrauch |
5 V Gleichspannung, 5,5 W |
5 V Gleichspannung, 12,2 W |
| Umgebung |
| Betriebstemperatur |
0–40°C |
0–40°C |
| Aufbewahrungstemperatur |
-20–60°C |
-20–60°C |
| Feuchtigkeit |
0–80% relative Luftfeuchte, nicht kondensierend |
0–80% relative Luftfeuchte, nicht kondensierend |
| Physikalische Eigenschaften |
| Gehäuse |
Metall |
Metall |
| Gewicht |
0,80 kg ( 1,76 lb ) |
0,81 kg ( 1,78 lb ) |
| Abmessungen (L x B x H) |
17,42 x 15,94 x 2,88 cm
(6,86 x 6,28 x 1,13 Zoll) |
17,42 x 15,94 x 2,88 cm
(6,86 x 6,28 x 1,13 Zoll) |
