Haitwin-Delphin AW-1901-DVI 1U 19" KVM-Drawer with 19" DVI LED-Backlight LCD and 3x Front-USB 2.0

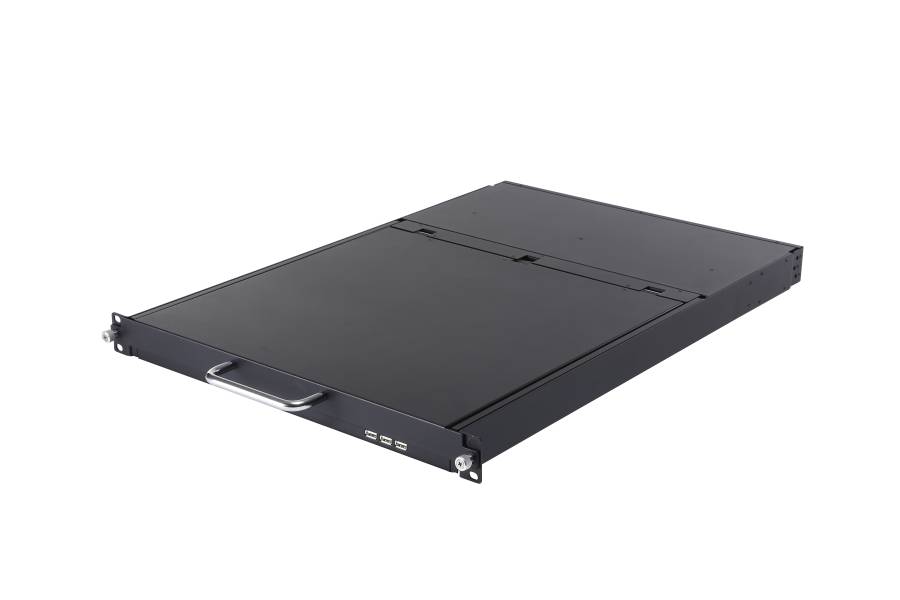

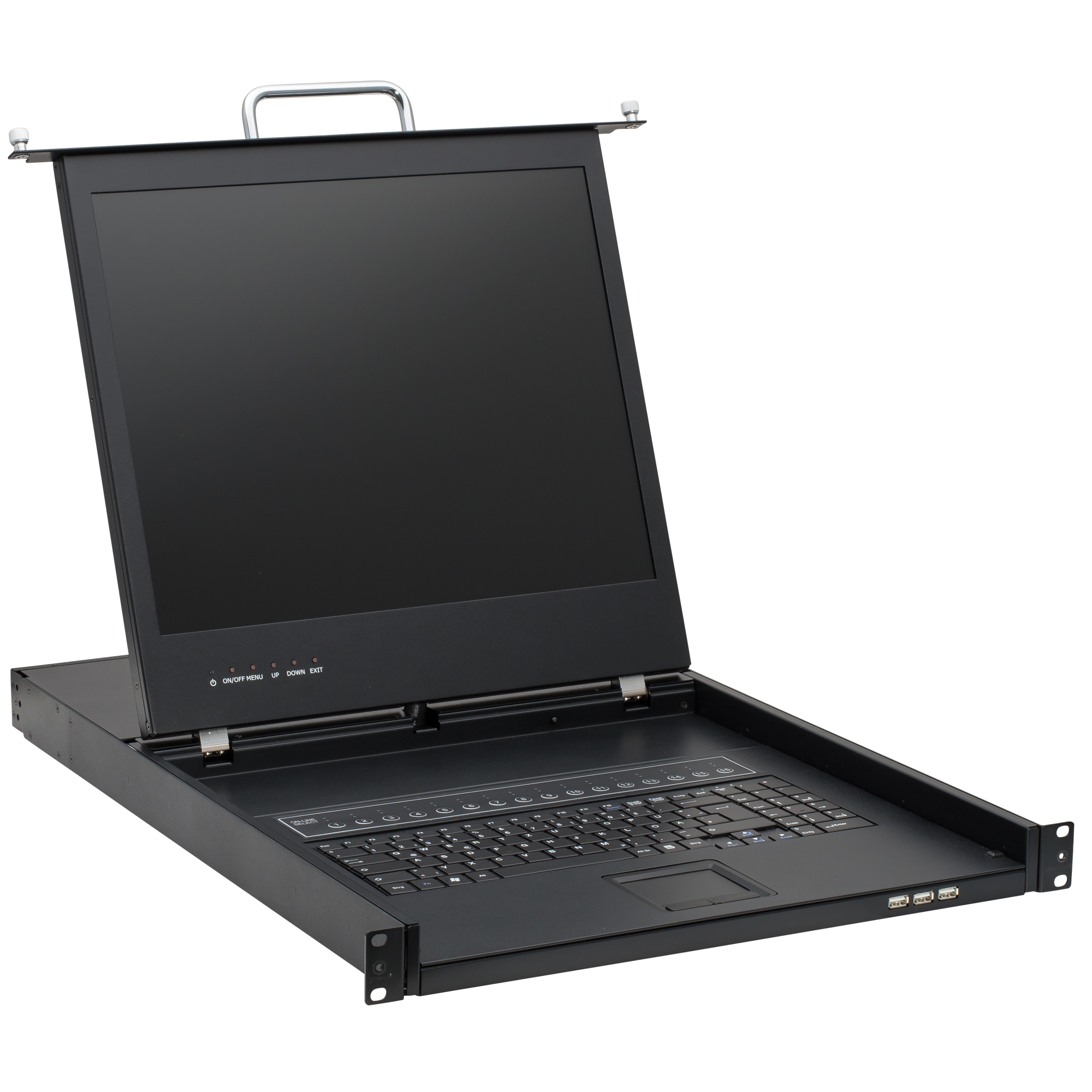

AW-1901-DVI is a 19“ Monitor, Keyboard-Drawer with LED Backlight value keyboard with a number block , touchpad, DVI and VGA Input and 3 front USB complete the external design. The casing conforms the 1U Standard, easily installed and mountable with the included mounting kit.
Properties:
• 1U 19“ LCD console , 640mm deep
• Stepless,adjustable angle from 0 to 105° over high quality and unique torque hinges
• Easy one man assembly with the provided angles
• DVI and VGA Input
• 3 front 2.0 USB
• Adjustable depth from 600 mm up to 1130 mm tread depth
• Chromed metal handle
• Practical knurled screws
• High graphic resolution, up to 1280 x 1024 with 60Hz DDC, DDC2 und DDC2B
Specifications:
• DVI-I and VGA Input, USB for Keyboard and Touchpad
• Compatible with most PS / 2 KVM and USB KVM switches
• Integrated front 3-port USB2.0 hub devices for sharing of USB2.0 and USB1.1 devices (to use another mouse, scanners, printers, cameras, USB storage devices, ...)
• OSD Menu in the following langagues adjustable German, English Spanish, Italian , French, Portuguese, Korean, Cyrillic, Japanese, trad. Chinese, mod. Chinese
• Support friendly external power supply
• Support DOS, Windows 95/98/SE/2000/XP/Vista/Server 2003/Server 2008 and Windows 7 / 8.1, 10, Linux, MacOS, etc.
• Perfect keyboard / mouse emulation for safe function on all computers and operating systems
Keyboard versions:
In default order we do ship out with German (DE) keyboard layout.
Orders with additional extensions by use for US-English (US), UK-English (UK), French (FR), Spanish (SP), Italian (IT) and Swiss / German (CH).
Versions available on request: Turkish (TK) and Russian(RU)
Technical data:

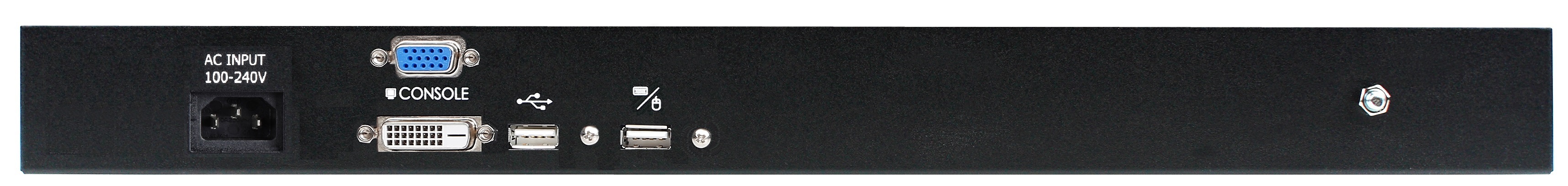

| Connections |
Graphic |
1 x DVI-I
1 x VGA |
| Keyboard / Mouse |
2 X USB-Typ-A |
| External (Hub) |
3 x USB 2,0 (Type-A) |
| Power supply |
1 x C13 IEC socket |
| Connection cable (included in the delivery) |
Graphic |
1 x DVI-D, 1 x VGA(1,8m) |
| Keyboard/Mouse |
2 x USB-A for A (1,8m) |
| Switch |
LCD settings |
4 Pressure switch |
| ON / OFF |
1 Pressure switch |
| OFF (LCD folded) |
1 Semi-covert pressure switch |
| LED-Display panel |
Operation |
1 x green |
| Number |
1 x green |
| Capital letters |
1 x green |
| Scroll |
1 x green |
| Emulation |
Keyboard/ Mouse |
USB and PS/2 |
| Display |
Yes |
| Graphic |
19“ LCD |
1280 x 1024 (DVI Single Link) |
| Colors |
16,2 Mio. |
| Frame Rate |
H: 31,0 KHz. – 82,0 KHz.
V: 60,0 KHz. – 75,0 KHz. |
| Viewing angle |
H: 140° / V: 130° |
| Bandwith |
140 Mhz. |
| Brightness |
300 cd/m² |
| Contrast |
700:01:00 |
| Reaktion time |
4 ms. |
| Pixel pitch |
0,264mm (H) x 0,264mm (V) |
| Backlight |
LED |
| Input values |
100 V. – 240 V. AC, 48 Hz – 62 Hz |
| Output values |
DC 12V., 4,16A |
| Power consumption |
230 V / 18,8 Watt |
| Certification |
RoHS, RoHS2, CE |
| Environment |
Operating temperature |
0 – 40°C |
| Storage temperature |
-20 – 60°C |
| Humidity |
0 – 80% relative humidity (non condensing) |
| Physical properties |
Casing |
High performance steel |
| Color |
RAL 9005 |
| Weight |
14,9 kg incl. angles |

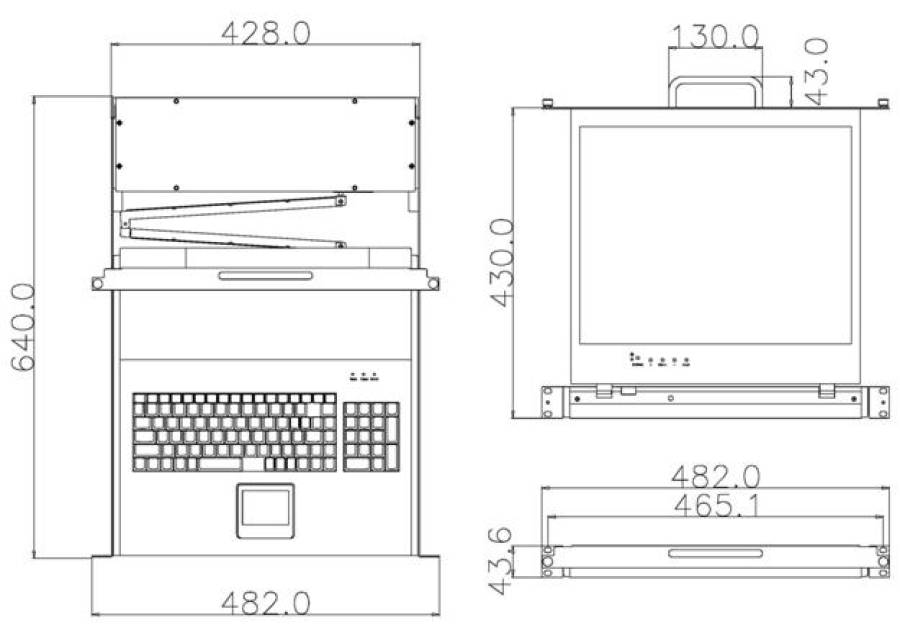

| Dimension (L x W x H) without handle |
64,00 x 43,6 x 4,4cm (19“ / 1U) |
| Dimension (L x W x H) with handle |
67 ,80 x 43,6 x 4,4cm (19“ / 1U) |
| Packaging |
Weight |
17,1 kg |
| Dimension (L x W x H) |
77,5 x 58 x 21 cm |
