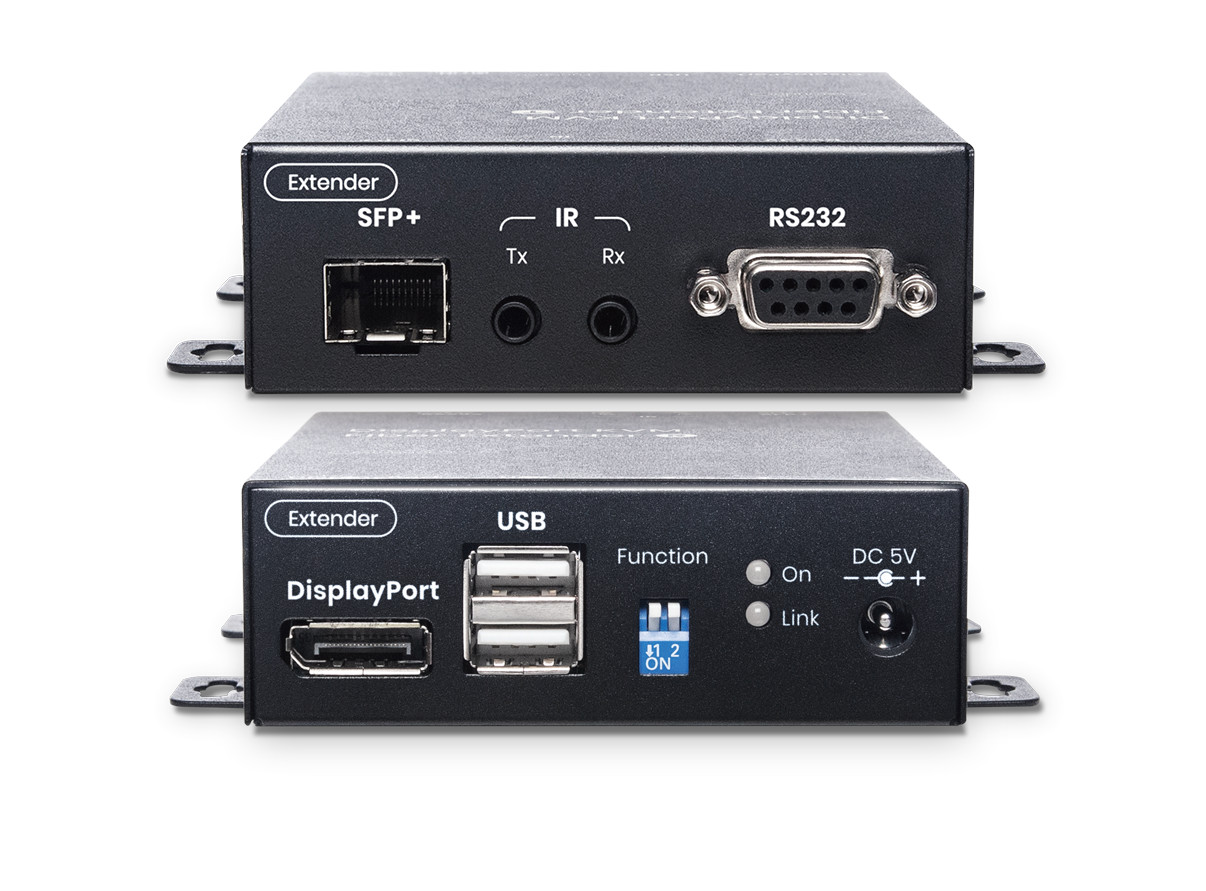

4K 60Hz 4:4:4 DP USB-Keyboard/Mouse with IR/RS232 Fiber KVM-Extender Set include SFP 10G Module for SingleMode and MultiMode Cable, SC&T DP01F-4K6G-KS
DP01F-4K6G (KS = include 2x SFP 10G+ modules) is an Optical HDMI Extender that overcomes the length restriction of standard DP cables by using optical fiber to send high definition audio and video signals over large distances.
It also built in USB for KVM keyboard mouse for DP KVM solution.
It is also built in RS232/IR selection to extend the IR remote control and transfer RS-232 (up to 115kbps) in both directions, allows you to connect serial devices such as touch screens and barcode scanners.
Features:
- Support 4K@60Hz (18Gbps) 4:4:4 8bits, HDR
- Support DP 1.2 / HDCP 1.3
- DisplayPort Audio pass through
- Include 2 x SFP+ 10 Giga module for multimode ans singlemode cables (distance depends on used cable)
- IR/RS232/USB function selection
- Support USB keyboard mouse
- Support Bi-directional IR pass through from 20Khz to 60KHz
- Support Bi-directional RS232.
Comprehensive Audiovisual Specifications:
DP01F-4K6G boasts a maximum resolution support of 4K@60Hz 4:4:4 and complies with the HDCP 2.2 standard, offering a superior 4K DisplayPort audiovisual experience.
Long-Range DisplayPort Extension with 10G SFP+:
DP01F-4K6G utilizes the 10G SFP+ fiber module, allowing for extensions up to 300 km over single-mode fiber and 10 km over multi-mode fiber for various distance requirements. You can also use third-party SFP+ modules.
Package Include:
- DP01FT-4K6G Transmitter x 1
- DP01FR-4K6G Receiver x 1
- DC 5V 2Amp power adapter x 2
- 10 GB/s SFP+ 2km modules LC Duplex x 2
- IR Emitter cable x 1
- IR Receiver cable x 1
Specifications:
ITEM No.: |
DP01FT-4K6G |
DP01FR-4K6G |
DP Input / Output |
DP x 1 |
DP x 1 |
DP Resolution (max.) |
4K @ 60 Hz 4:4:4
|
Audio (DP) |
DisplayPort Audio pass through
|
Link Interface |
SFP 10G+ (2 x modules for all types of cable include) |
Transmission Distance |
with MultiMode up to 300 m
with SingleMode up to 60 km (depends on cable) |
RS-232 Interface |
DB9(F) |
DB9(M) |
RS-232 Data Rate |
115200 bps / Full Duplex |
IR Input /Output |
3.5 mm Phone Jack x 2 |
IR Frequency carrier/receive angle/receive distance |
30~60KHz / T:± 10° / R:± 55° / 5m / Bi-Directional |
Keyboard / Mouse |
USB Type B x 1 |
USB Type A x 2 |
Power Consumption |
max. 5 W |
max. 5 W |
Power Supply |
DC 5V 2A |
Temperature |
Operation:-10~45℃, Storage:-30~70℃,95% Humidity: up to 95% |
Dimension (mm) |
109.6 x 114.5 x 30 |
109.6 x 114.5 x 30 |
Weight (g) |
270 |
270 |
