Dual-Monitor HDMI with 4x USB 2.0 over only 1 Cable KVM-Extender-Set with 2x Zero-Latency 1080p, AV Access HDEX60-DM
AV Access HDEX60-DM is a dual monitor HDMI KVM extender kit. It can transmit dual 1080P HDMI signal along with USB 2.0 up to 60m/197ft over a single Cat 5e/6/6a/7 cable, with zero loss or delay. With its plug-n-play feature, ultra-slim design and excellent performance, HDEX60-DM KVM extender is ideal for extending your desktop, workstation, gaming PC, etc. It allows you to view extra screens and maximize your productivity.
Dual HDMI Design:
HDMI 1.3 & HDCP 1.4 compliant. Transmits dual 1080P full HD HDMI signal up to 60m/197ft over a single Cat 5e/6/6a/7 cable, with zero loss or delay. View extra screens and maximize your productivity.
Built-in USB 2.0 Hub:
Easily connect up to four USB 2.0 peripherals, like keyboard, mouse, speakerphone, webcam, hard disk, etc. Extend USB 2.0 signal (max 480Mbps) up to 60m/197ft with zero latency.
One-Way PoC:
The transmitter can be powered by the receiver via the Cat cable, so only one power adapter is required at the receiver side to power both units.
High Reliability & Universal Compatibility:
Certificated by CE & FCC. Comes with mounting brackets for hassle-free installation. No driver is required, just plug and play. Works with different operating systems, like Windows, Mac OS and Linux.
Main Features:
- Brand-New dual HDMI design;
- Supports 1080P@60Hz 4:4:4 8bit and HDCP 1.4;
- Extends HDMI and USB signals up to 60m/197ft with zero latency;
- 4x USB 2.0 ports with full bandwidth up to 480Mbps;
- Two USB device ports support 5V/1A higher current output;
- Supports one-way PoC;
- Plug and play, no driver needed;
- Ultra-Slim and portable design.
Perfect Dual HDMI Design
Built with two HDMI input ports on the transmitter and two HDMI output ports on the receiver, the dual monitor KVM extender allows you to easily extend two full HD HDMI signals over a single Cat cable, with zero latency. Even if your desktop computer is placed in the basement or equipment room 60m/197ft away, you can view extra screens and maximize your productivity in your home studio.
|
|
|

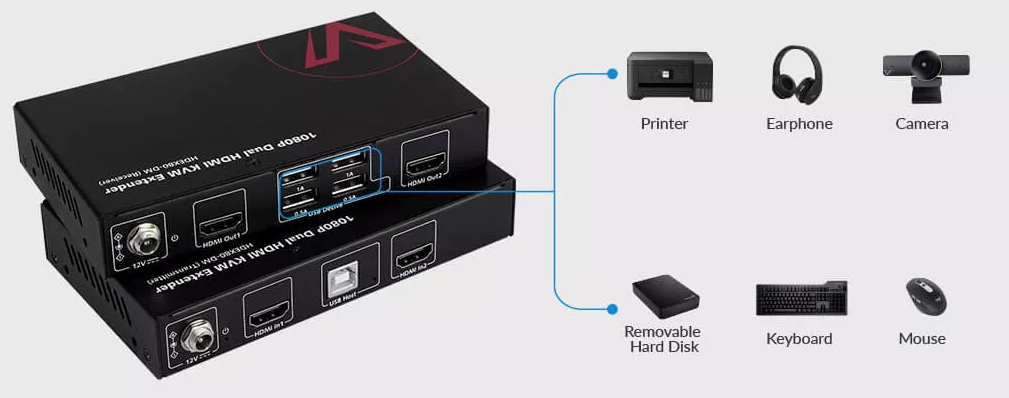

Effortless USB Signal Extension
Designed with four USB 2.0 device ports on the receiver, the HDMI KVM extender allows you to extend mouse, keyboard, printer, scanner or other USB 2.0 devices up to 60m/197ft. Two of the USB ports support 5V/1A higher current output, so you can easily connect high-power USB devices, such as USB camera or USB hard disk.
|

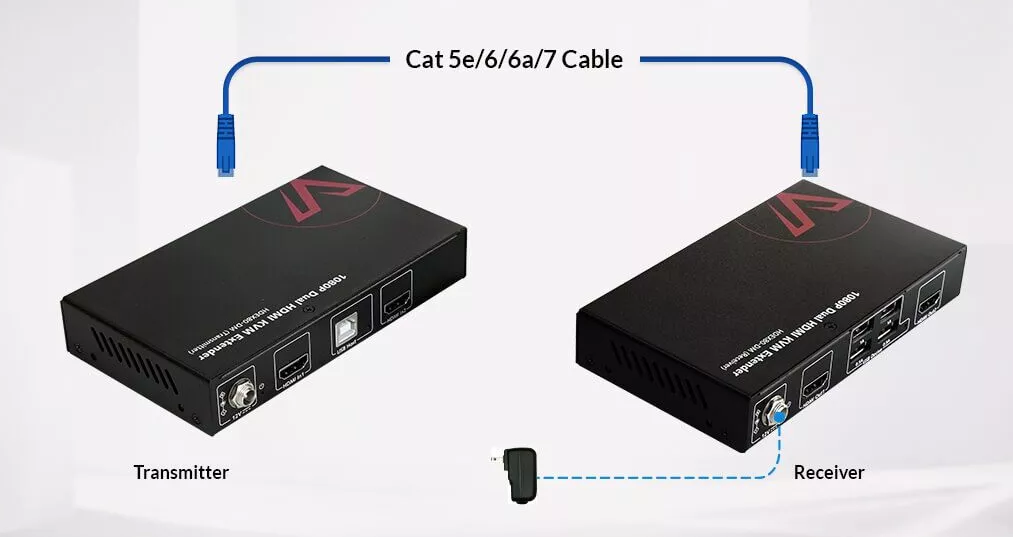

One-Way PoC Function
With the built-in PoC function, the transmitter can be powered by the receiver via a Cat cable, so only one power supply is needed at the receiver side to power both units. It offers you more convenience in installation at the source side.
|
|
|

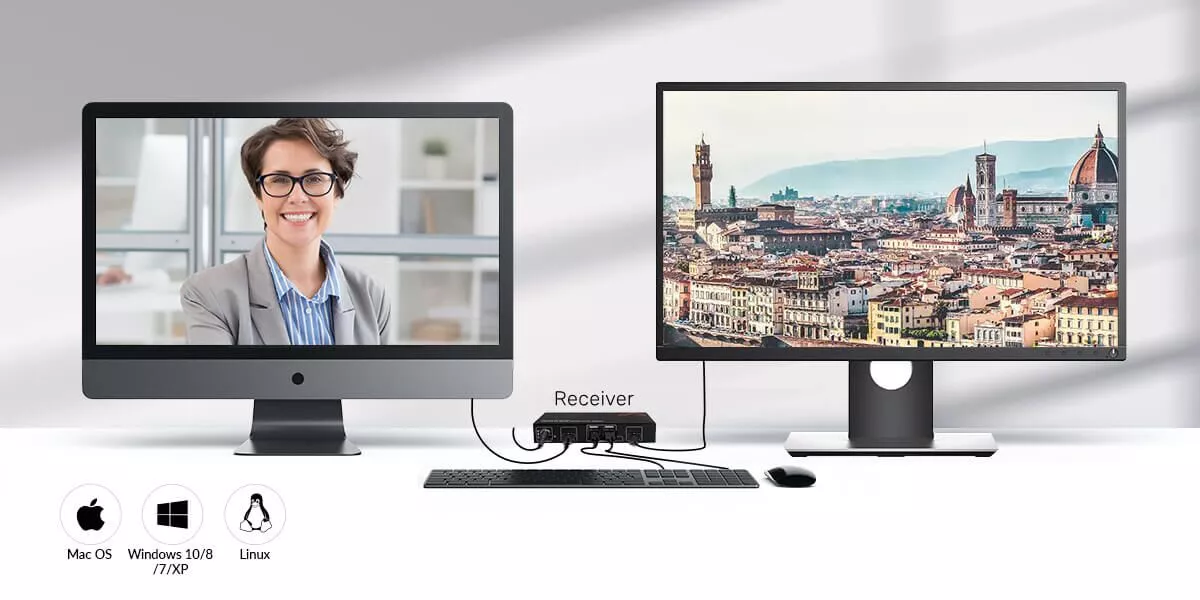

Plug & Play, Universal Compatibility
The dual monitor HDMI extender can work with all operating systems, including Windows 10/8/7/XP, Mac OS and Linux. No extra software or driver is required; just plug and play. Now it is easier than ever to extend your workstation or gaming PC.
|

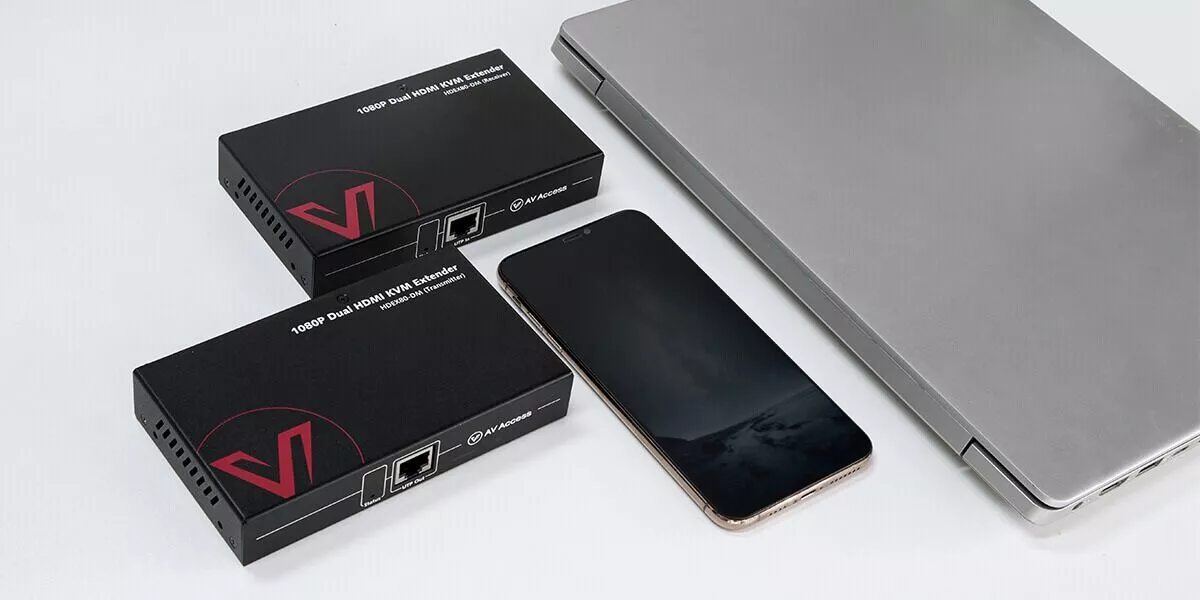

Ultra-Slim and Compact Design
This HDMI KVM transmitter and receiver kit is compact and portable, as small as a palm. It is easy to install and space-saving; you can almost place them everywhere in your house.
|
|
Connection Diagram
Notes:
1. The Cat 5e/6/6a/7 cable used must be within 60m/197ft.
2. With one-way PoC supported, one power adapter is needed to be connected to the receiver to power both units.
3. The two USB 2.0 ports supports 1A can be connected to high-power USB devices such as USB camera, USB hard disk.
In the Box
- 1x Transmitter
- 1x Receiver
- 1x DC 12V Power Adapter (with US, UK and EU Pins)
- 1x USB 2.0 type-A to type-B Cable
- 4x Mounting Brackets (with Screws)
- 1x User Manual
Technical |
Video Signal Type |
HDMI with 1080P@60Hz, 4:4:4 8bit, HDCP 1.4 |
Input/Output Resolution |
1080P@60/50/30/25Hz; 720P@60/50Hz; 480P@60Hz |
Audio Format |
PCM 2.0 |
Max Data Rate |
6.75 Gbps |
General |
Operating Temperature |
0°C to 45°C (32°F to 113°F) |
Storage Temperature |
-20°C to 70°C (-4°F to 158°F) |
Humidity |
20% to 90%, non-condensing |
Power Consumption |
5.7W (Maximum) |
Device Dimensions
(W x H x D)
|
140 mm ×25 mm ×80.2 mm/ 5.51” x 0.98” x 3.16” |
Product Weight |
Transmitter/Receiver: 0.33kg/0.73lb |
B2B Product - Designed for use in a commercial environment.
